IMAC Multi-Axes and Automation Controller
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives
- Multi-axes (up to 32 axes) motion control over distributed INET® network
- Digital and Analog I/O handling over INET® network
- Simple and Visual creation of complex machine operational sequences
- No programming experience necessary, just lay IBLOCKS™ in sequence
- Graphical HMI Designer
INTELLIDRIVES MULTI-AXES MOTION and AUTOMATION CONTROLLER is a network-based general purpose motion/automation controller with embedded intuitive IBLOCK® programming capability.
IBLOCK® visual block programming environment runs in the web browser on any hardware and software platforms. IBLOCK® uses functional blocks linked together to create complex multi-axes motion control sequences of different motor types interacting with digital and analog I/O and vision systems.
IBLOCK Visual Editor uses graphical blocks to represent motion commands, control of the input/output devices, variables, logic expressions, math, loops and more without having to worry about complexities of the programming languages.

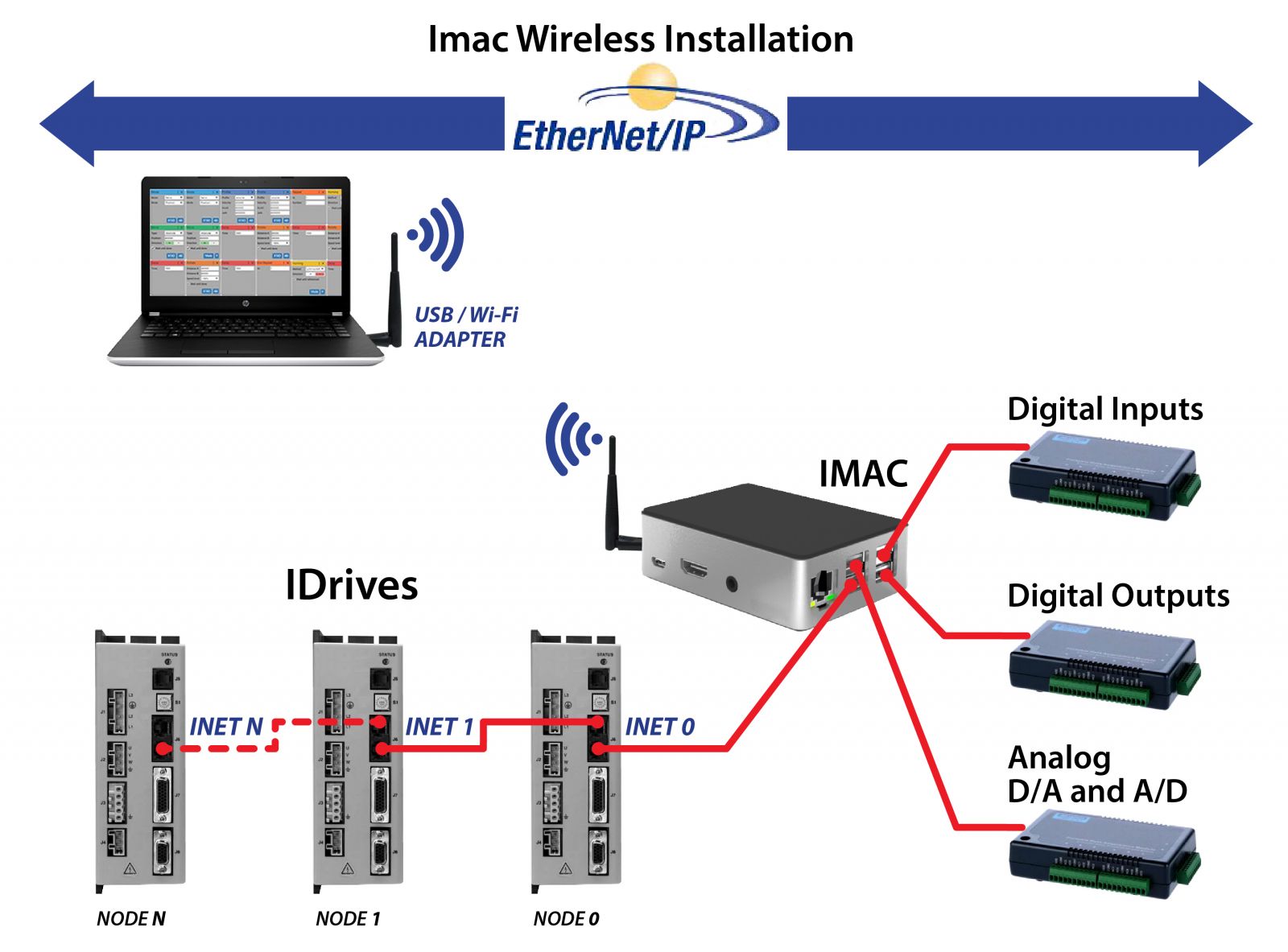

IMAC controls network of Digital Stepper and Servo I-DRIVES™ as well as digital and analog I/O.
IMAC can operate as a stand-alone system or connected to the user network or Internet.
As a stand-alone controller, IMAC can take the place of a PC in a control system to reduce cost.
IMAC can also be configured to work in conjunction with a PC where the IMAC handles the real-time processes such as motion control and automation, and the PC is used as programming environment and GUI

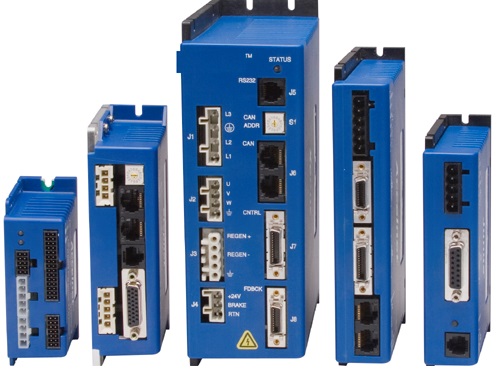

IDrives® provide user with a performance edge. Advanced tuning and commutation algorithms, made possible by state-of-the-art DSP technology to maximize motor performance. I-DRIVES® offer a complete range of AC- and DC-powered digital drives for servo and stepper motors.
Rotary Servo and Stepper Motors
Linear Servo and Stepper Motor
Direct drive motors
User inputs sourcing and sinking sensors
CONTROL TOOLBLOCKS contains following command block categories
- MOTION BLOCKS
- TIME/EVENT BLOCKS
- I/O BLOCKS
- CONTROL FLOW BLOCK
- MATH BLOCKS
- VARIABLE BLOCKS
- MISC BLOCKS
- USER DESIGNED BLOCKS
