LSS-LMX50
When done selecting products to quote, click “Request Quote/Information” button.
This will take you to check-out page to send quote request to IntelLiDrives.
Compact, short stroke linear stage with linear motors and micron-grade linear encoders
Click Below Images To Enlarge
|

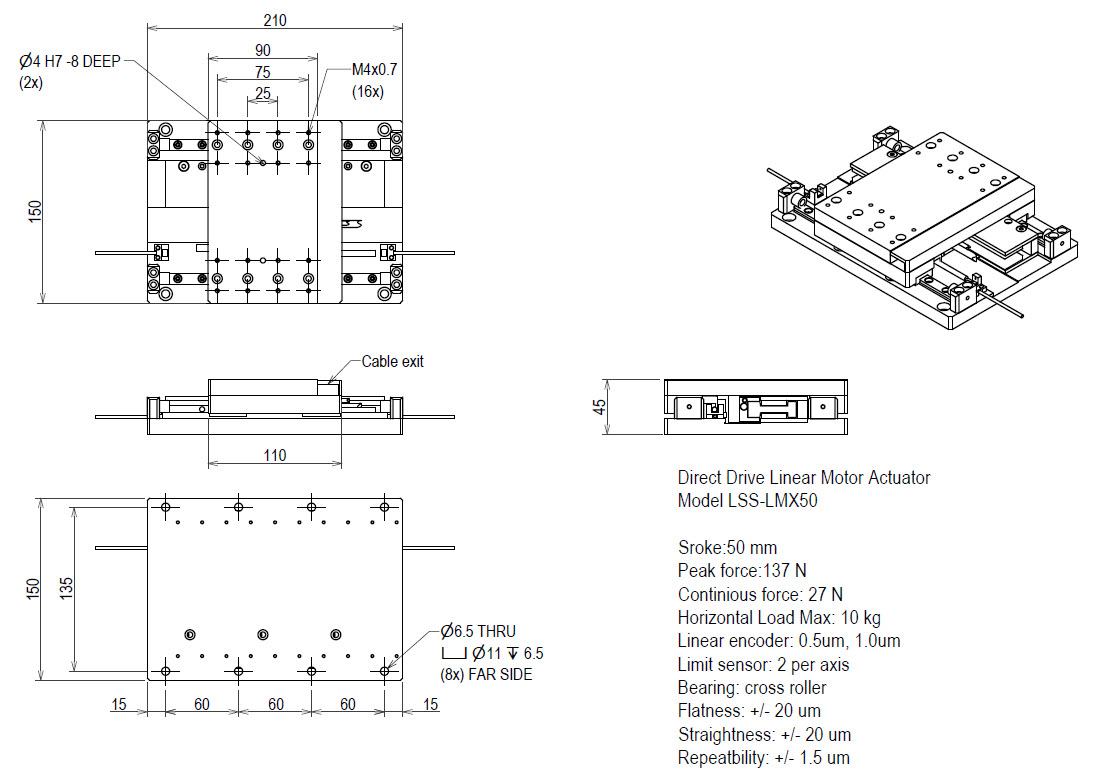

Linear stage LSS-LMX-50 |
Spec |
|
Stroke (mm) |
50 |
|
Repeatability (µm) |
0.5; 1.0 |
|
Resolution (µm) |
0.5; 1.0 |
|
Load capacity (kg) |
5 |
|
Velocity (mm/sec) |
500 |
|
Drive mechanism |
direct drive |
|
Motor |
linear, core-less, servo |
| Size (mm) | 90x150 |
| Height (mm) | 45 |
