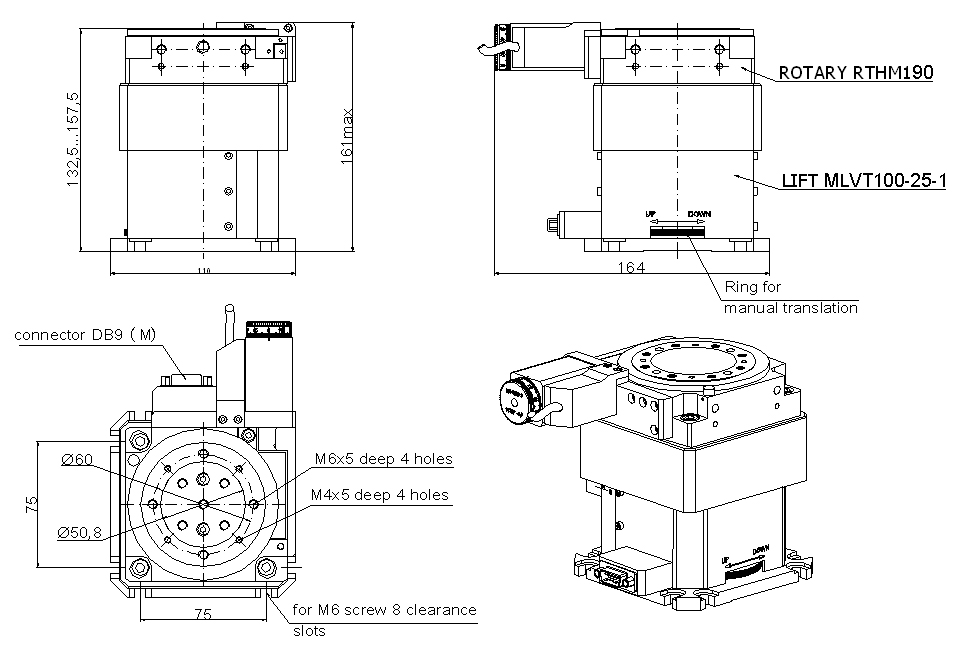

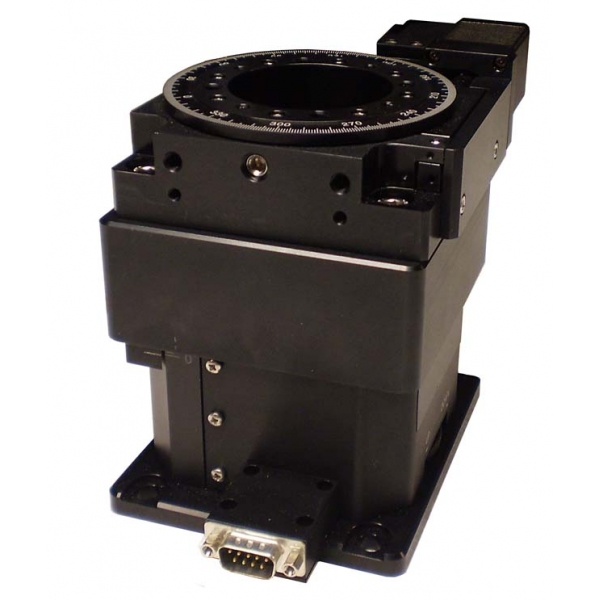

Lift-Rotary MLVT-100-25+RTHM-190


Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.
DescriptionSpecificationsDrawingsRelated

Lift-Rotate stages offer precise and independent rotation and vertical translation for light to medium payload.

This stage combines MLVT vertical stage and RTHM rotary table in very compact form factor for precision space constrained applications.

Click Below Images To Enlarge

Lift-Rotary MLVT-70-13+RTHM-151
Lift-Rotary MLVT-70-13+RTHM-151
MLVT-70-13-RTHM-151

Lift 13 mm

Ball Bearings

Load 5 Kg

Lift-Rotary MLVT-40-13+RTHM-174
Lift-Rotary MLVT-40-13+RTHM-174
MLVT-40-13-RTHM-174

Lift 13 mm

Ball Bearings

Load 3 Kg

Lift-Rotary MLVT-120-5+SRT-01
Lift-Rotary MLVT-120-5+SRT-01
MLVT-120-5-SRT-01

Lift 5 mm

Ball bearings

Load 10 Kg

Lift Z Stage

MLVT-100-25

 Spec

Rotary Stage

RTHM-191

 Spec









Lift stroke

 25 mm

Rotation

unlimited

Repeatability

 ± 2 µm

Repeatability

± 5 arc-sec

Resolution

 1 µm

Resolution

± 1 arc-sec

Lift payload

 8 kg

Torque

0.5 Nm

Lift velocity

 20 mm/sec

Angular velocity

6 rpm

Mechanism

 direct drive screw

Mechanism

worm drive

Motor

 stepper

Motor

stepper
