Linear actuator LSS-200


Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.

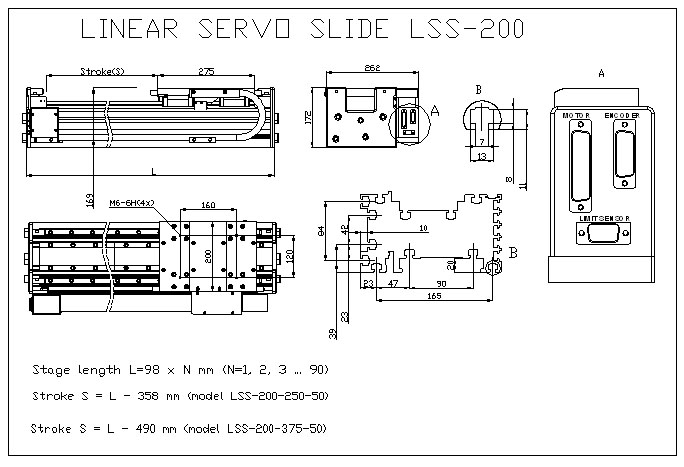

DescriptionSpecificationsDrawingsRelated

- Turn-key solution linear motor solution

- Modular design

- High speed and acceleration

- Zero backlash

- Integrated cable track

- Low profile





The Direct Drive Linear ServoSlide system is a direct drive actuator that eliminates wear, friction, backlash and compliances associated with mechanical transmissions, such as ball/lead screws, rack & pinion, belts/pulses and gearboxes



Linear Motor Forcer features non-contact design and low cogging for fast and accurate positioning



Carriage support double rod bearing system is integrated into the slide to support moving carriage and to provide dynamic stiffness and precise straightness of travel.  Bearing rollers are magnetically preloaded by the carriage against magnet track



Integral Linear Encoder provides precision non-contact linear position feedback with resolution 1 microns



Limit and Home sensors establish end of travel and "home" positions



Cable Transport Module with high flex robotic cable is installed and pre-wired to the amplifier



Mounting of the actuator can up-side down and vertically with optional linear brake



Multi-axes Gantry and XYZ arms can be easily constructed using Linear Servo Slides

Click Below Images To Enlarge

Linear Servo Actuator LSSE-87-30
Linear Servo Actuator LSSE-87-30
LSSE-87-30

- Cost effective
- Turn-key solution linear motor actuator

- Modular design

- High speed and acceleration

- Zero backlash

- Integrated cable track

- Low profile

Linear Actuator LSS-120
Linear Actuator LSS-120
LSS-120
Linear Actuator LSS-160
Linear Actuator LSS-160
LSS-160

Parameter

Unit

LSS120

LSS160

LSS200











Peak force (note1)

Fp

N

450

645

1700

Continuous force

(note 2)

Fc

N

160

225

800

Peak current

Ia

Amp

10

14

16

Continuous current

Ic

Amp

6

4.7

7

Max speed at Fp

(note 3)

Vp

m/sec

3.2 / 4.4

2.5

1.7

Max speed at Fc

(note 3)

Vp

m/sec

7.0 / 9.5

4.0

2.9

Cogging force

Fc

N

3

4

15

Accuracy (note 4)



mkm

10 - 50

Resolution (note 4)



mkm

0.1 - 25

Repeatability



mkm

1 - 5

Carriage weight

Mf

Kg

 3

 4.5

 6.5

Max payload weight

Mp

Kg

70

120

200

Travel stroke (note 5)

S

mm

100 + n * 96

100 + n * 128

100 + n * 128

Stage length

L

mm

S + 338

S + 353

S + 536

Profile width

C

mm

120

160

200



note 1   duration 1 sec

note 2   coil at 120°C

note 3   motor bus voltage 310 VDC (ISERV voltage 220 VAC)

note 4   stage can be equipped with magnetic and optical contact-less

            linear encoders. Consult the factory

Note 5  n  = 0, 1 …96 (LSS120)

            n  = 0, 1 …40 (LSS200)
