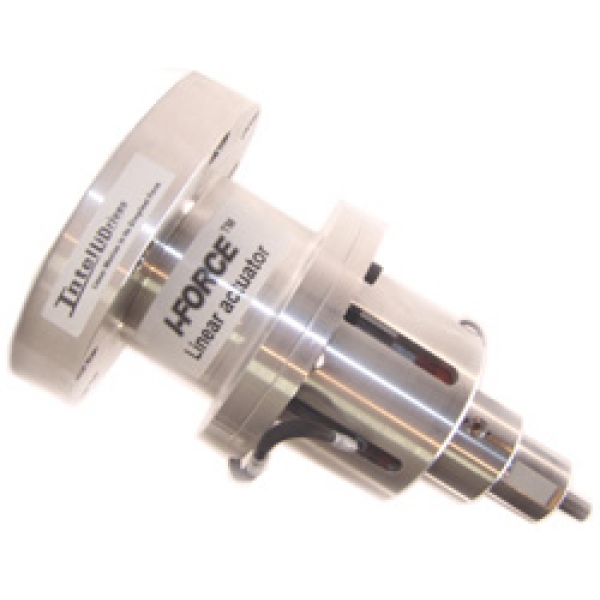

Linear actuator IF-460-160-25


Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.
DescriptionSpecificationsDrawingsRelated

I-Force linear actuator comprise of direct drive core-less and hysteresys-free linear brushless motor with integrated  position sensing and bearings. They feature extremely high dynamic response and force linearity.  For use in applications with force control and linear positioning.



Features:



 - acceleration 10G

-  stroking frequency above 10 Hz

-  force control from grams to kilograms

-  soft touch with programmable push/pull force



Applications



- die eject and bond head (die bond and flip chip

- stroking frequency above 10 Hz

- IC placement and testing

- high speed assembly and insertion

- micro-positioning

Click Below Images To Enlarge

LINEAR ACTUATOR IF-450-160-25 (25 mm stroke)

Linear actuator IF-075-25-10
Linear actuator IF-075-25-10
IF-075-25-10



Peak force 75 N

Cont. force 25 N

Stroke 10 mm

Encoder 1 micron

Linear actuator IF-110-45-25
Linear actuator IF-110-45-25
IF-110-45-25



Peak force 110 N

Cont. force 45 N

Stroke 25 mm

Encoder 1 micron

Linear actuator IF-260-80-25
Linear actuator IF-260-80-25
IF-260-80-25



Peak force 260 N

Cont. force 80 N

Stroke 25 mm

Encoder 1 micron

Parameter

  MODEL I-FORCE


IF-75-25-10



IF-110-45-25



IF-260-80-25



IF-450-160-25



   Peak  force

N

25

110

260

450

   Continuous  force

N

25

45

80

160

   Stroke

mm

10

25

25

25

   Position resolution

micron

1

   Accuracy

micron

3

   Peak current

Amp

6

   Continuous current

Amp

2
