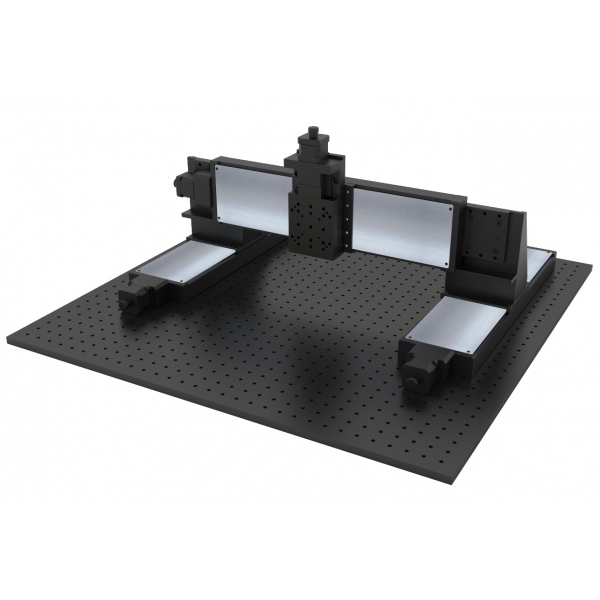

Overhead Gantry XYZ-OG-LOW-BSMA-LY-140H-300x300-110-50


Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.

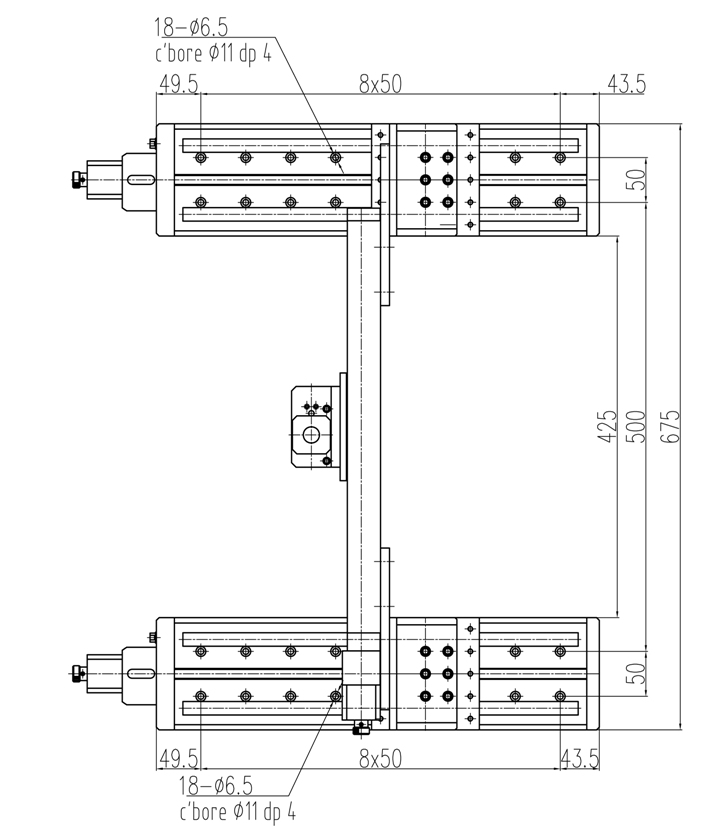

DescriptionSpecificationsDrawingsRelated

Gantry style cartesian robots with large working areas. All moving axes located above work area.



-  XYZ Gantry 300 x 300 x 50 mm travel

-  Ball screw mechanism

-  Stepper or servo motor driven



Options include:



- larger or smaller travel stroke

- precision grade

- ball screw lead

- motor type (stepper or servo/encoder)

- rotary table installation




Easy to program with VISUAL IMAC icon based controller. No need to write a single line of code!














Click Below Images To Enlarge

There are no related products for this product.
Actuator

BSMA-LY-140H-300 (X, Y)

BSMA-LY-110-50 (Z)

Stroke X x Y x Z

300x300x50 mm

Ball screw lead

4 mm (X, Y)

1 mm (Z)

Motor mounts

 Nema17

Motor type

stepper

servo with encoder (4000cpr)

Repeatability

± 5 microns

Accuracy

10 microns

Load capacity

5 kg

Max screw speed

10 RPS (stepper)

25 RPS (servo/encoder)

RPS (rev/sec)

Speed in mm/sec = RPS x screw_lead
