Rotary actuator RTHPB-50J

motorized belt actuator
Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.

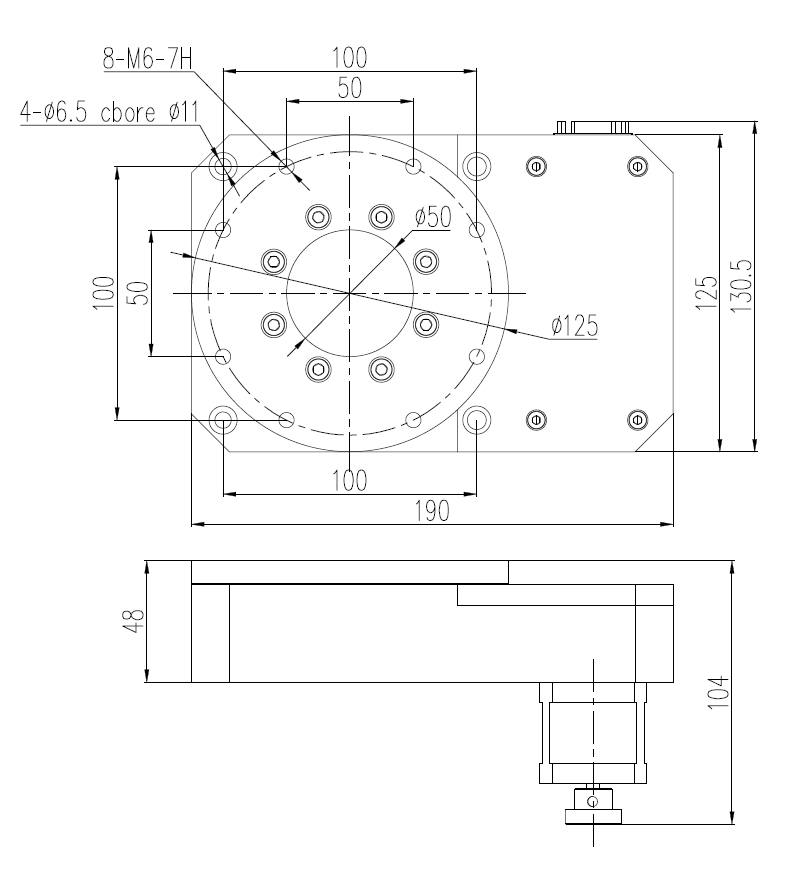

DescriptionSpecificationsDrawingsRelated

The RTHP-B-50J features clear aperture of 50 mm and provides arc-second resolution when driven from a micro-stepping or brushless servomotor controller. The low profile design is made possible by the use of compact precision bearing. The rotating carriage of the stage provides unlimited motorized rotation angle of the load up to 10kg and has large clear aperture to allow the passage of the optical path or cables directly through the stage. The main body of the stage is made from lightweight anodized aluminum and can attach directly to an optical table or moving linear or XY actuators and can be mounted at any orientation. RTHP-B-50 stage uses belt drive with stepper or brushless servo motor to achieve high rotating speed. Lightweight design makes it easy to incorporate this rotary stage into high dynamics XY-Theta multi-axes stages.



- Large center aperture 50 mm

- Low profile 45 mm

- Stepper or servo motor driven

- Unlimited rotation

- High speed 200 RPM

- Home switch

-    tch





Click Below Images To Enlarge

Rotary actuator RTHPB-150
Rotary actuator RTHPB-150
RTHPB-150

Diameter 258 mm

Aperture 150 mm

Height 38 mm

Rotary actuator RTB-8U-TP
Rotary actuator RTB-8U-TP
RTB-8U-TP

Diameter 130 mm

Aperture 20 mm

Height 40 mm

Rotary actuator RTB-8UJ
Rotary actuator RTB-8UJ
RTB-8UJ

Diameter 60 mm

Aperture 20 mm

Height 25 mm

Rotary actuator RTHPB-350
Rotary actuator RTHPB-350
Rotary stage RTHPB-350

Diameter 400 mm

Aperture 350 mm

Height 71 mm

Parameter

Unit

RTHPB-50J

Rotation range

deg

Continuous 360◦

Resolution



Motor/drive combination dependent

Max speed

RPM

200 RPM

Repeatability (unidirectional)

arc-min

3

Axial load capacity

Kg

7

Stage weight

Kg

2.5

Motor type



NEMA17(42mm) Stepper/Servo
encoder option

Drive mechanism



Motorized belt drive
Top/bottom motor mount option available

Transmission  ratio motor/stage



4:1

Home sensor



installed

Construction



anodized aluminum
