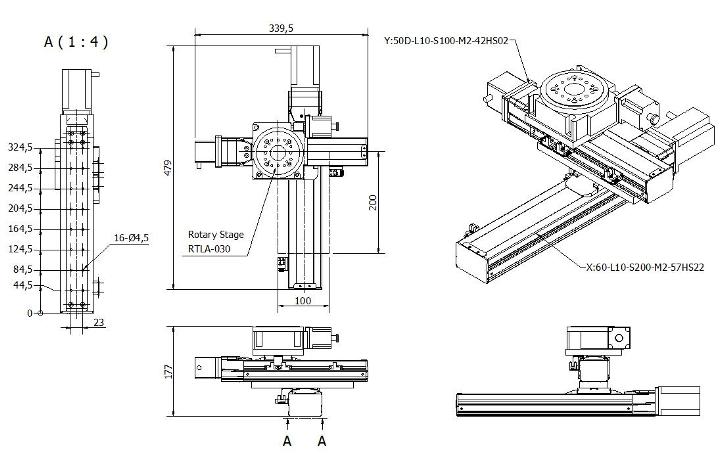

Combination of XY ball screw driven stages and worm gear rotary RTLA-30-100 table
- XY stroke 200x100 mm
- Unlimited rotation
 XYR LSM-XY300x300+RTH-140 XY-LSM+RTH-140 Stroke 300...600 mm Rotation unlimited Load 10 Kg |
 XYR BSMA-100x100+RTLA30-100 BSMA-100x100+RTLA30-100 Stroke 100x100 mm Rotation unlimited Load 15 Kg |
 XYR LSMA-100x100+RTHM190 LSMA-XY-100x100+RTHM-190 Stroke 100x100mm Rotation unlimited Load 10 Kg |
 XYR-BSMA-LY-140H-200x200+RTLA-30-100 140H-200x200+RTLA-30-100 XY stroke 200x200 mm Rotation unlimited Load 10 Kg |
 XYR BSMA-300x300+RTLA30-100 BSMA-300x300+RTLA30-100 Stroke 300x300 mm Rotation unlimited Load 15 Kg |
 XYR-BSMA-SA-50D-100x100-RTLA-0-60 50D-100x100-RTLA-0-60 Stroke 100x100 mm Rotation unlimited Load - Kg |
-120x120.jpg "XYR-BSMA-SA-60D-200x200-RTLA-30-100"){kind=icon} XYR-BSMA-SA-60D-200x200-RTLA-30-100 60D-200x200-RTLA-30-100 Stroke 200x200 mm Rotation unlimited Load - 15 Kg |
XYR-BSMA-SA-80D-300x300-RTLA-30-100 80D-300x300-RTLA-30-100 Stroke 300x300 mm Rotation unlimited Load - 15 Kg |
|
XY stage Y: BSMA-SA-50D-100 |
Spec |
Rotary Stage |
Spec |
|
Stroke (mm) |
200 x 100 |
Rotation |
unlimited |
|
Repeatability (µm) |
20 |
Repeatability (arc-sec) |
36 |
|
Resolution (µm) |
2 |
Resolution (arc-sec) |
1 |
|
Load capacity (kg) |
30 |
Torque (Nm) |
1 |
|
Velocity (mm/sec) |
300 |
Angular velocity (rpm) |
5 |
|
Mechanism; screw lead (mm) |
ball-screw; 5, 10 |
Mechanism, ratio |
worm gear 180:1 |
|
Motor |
stepper/servo |
Motor |
stepper |
