XY and XYZ stages for Pipetting Applications

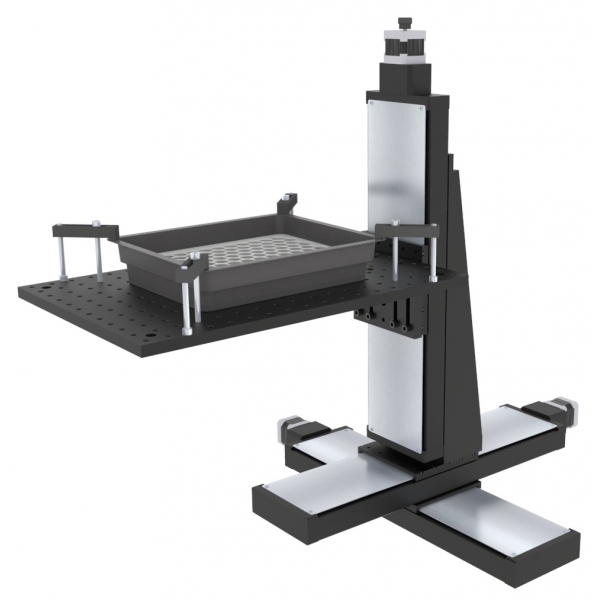

XYZ Robot
Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.
DescriptionSpecificationsDrawingsRelated

Pipetting Robots Configurations


XYZ robots are automated liquid-handling platforms that provide a range of solutions for preparing samples. They provide a common platform that allows scientists to easily share protocols and reproduce results. These robots automate experiments that scientists would otherwise need to perform manually, allowing them more time to answer important questions.

IntelLiDrives XYZ robots support interfaces to external I/O devices such as fluid pumps. An adaptor is also available for the XYZ robot that allows it to hold a Society for Biomolecular Screening (SBS)-standard multi-well plate. This system allows the user to perform pipetting applications such as automated microscopy with a high degree of resolution and repeatability.

The user can also change the placement and orientation of individual devices to provide a variety of configurations, and one stage can even be removed entirely to create an XY setup.














Robot Programming

Users programs pipetting sequences, using GUI (graphical user interface) with icon-based programming or writing sequence scripts with a VB-like language. No programming experience required to create complex pipetting sequences with interfaces to external pumps and other labware hardware.


USB interface and ability to receive/execute in real time commands over the USB port, allows robot to be integrated into complex laboratory automation systems.







There are no drawings for this product.
There are no related products for this product.
Actuator

BSMA-LY-140H-XXX

Stroke X,Y,Z

100 ... 600 mm

Ball screw lead

4 mm

Motor mounts

 Nema17

Motor type

stepper

servo with encoder (4000cpr)

Repeatability

± 10 microns

Load capacity

15 kg (horizontal)
10 kg (vertical)

Max screw speed

10 RPS (stepper)

25 RPS (servo/encoder)

RPS (rev/sec)

Speed in mm/sec = RPS x screw_lead
