Smart motors


Click to enlarge
Quantity:

Add To Quote

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.


Request Quote/Information

When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives
DescriptionSpecificationsDrawingsRelated

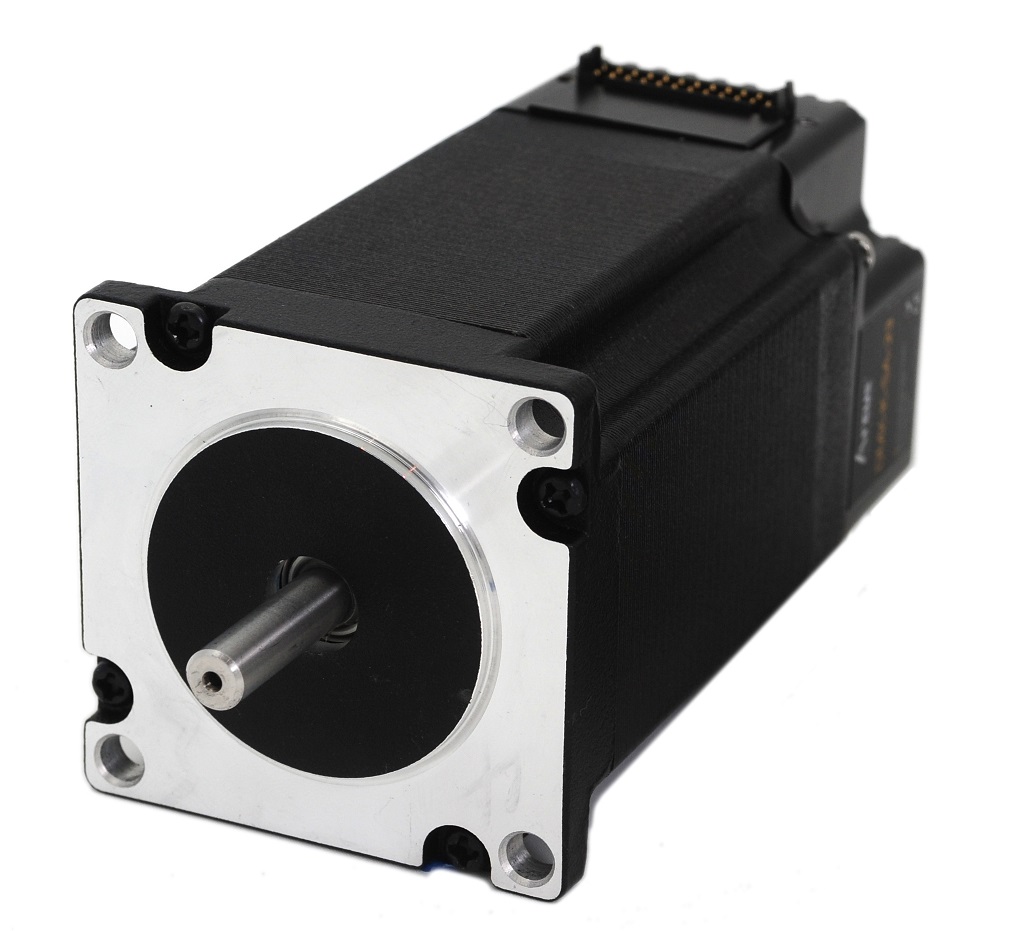

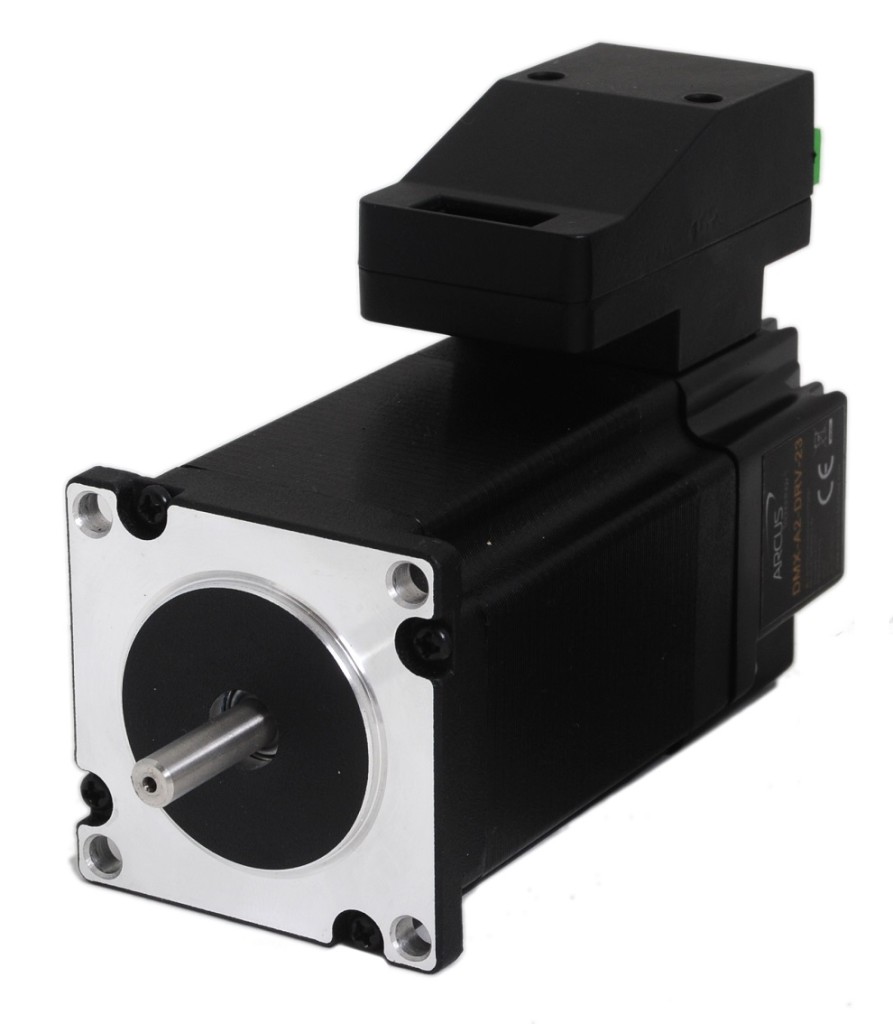

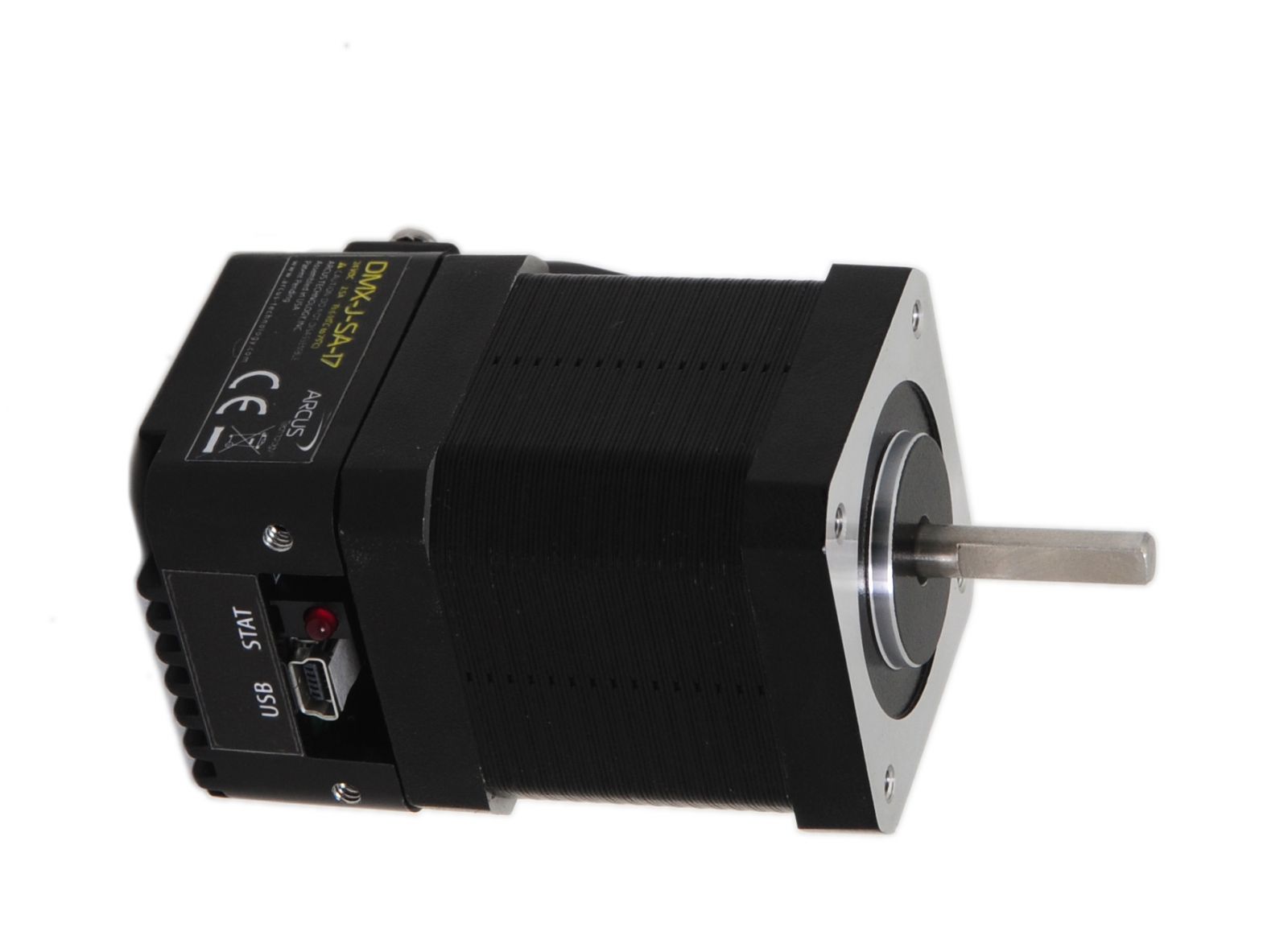

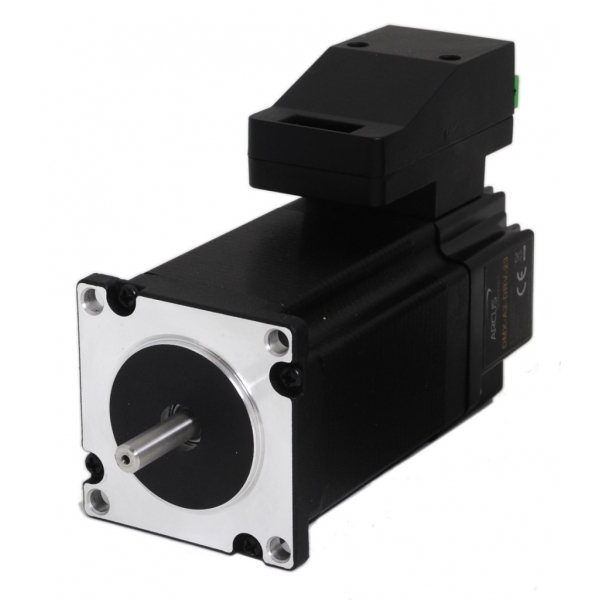

Integrated Stepper Motors feature USB / RS-485 / Ethernet communication links and provide highly programmable, integrated actuators with a motor, encoder, amplifier, controller in a single package.

Features (model dependent):

-USB2, RS232, 10 Mbps Ethernet Communication

-Stand-alone control via a BASIC-like programming language

-12 to 48 VDC voltage input

-500 microstep

-100mA to 3.0A current setting

-Opto-isolated +Limit, -Limit, and Home inputs

-Opto-isolated Digital inputs

-(2) Opto-isolated Digital outputs

-(2) High speed position capture digital input

-1000 line incremental encoder (4000 counts/rev with 4x quadrature decoding)

-StepNLoop closed loop algorithm

-On-the-fly speed change

-S-curve/Trapezoidal acceleration profile control

-Available in NEMA 17, 23 sizes in double and triple stack lengths

-Multi-task programming support

-LabView VIs available

Integrated Servo Motors coming soon !

There are no drawings for this product.
There are no related products for this product.
There are no specifications for this product.
