SINGLE ARM ROTARY AXIS RTMA85-190
When done selecting products to quote, click “Request Quote/Information” button.
This will take you to check-out page to send quote request to IntelLiDrives.

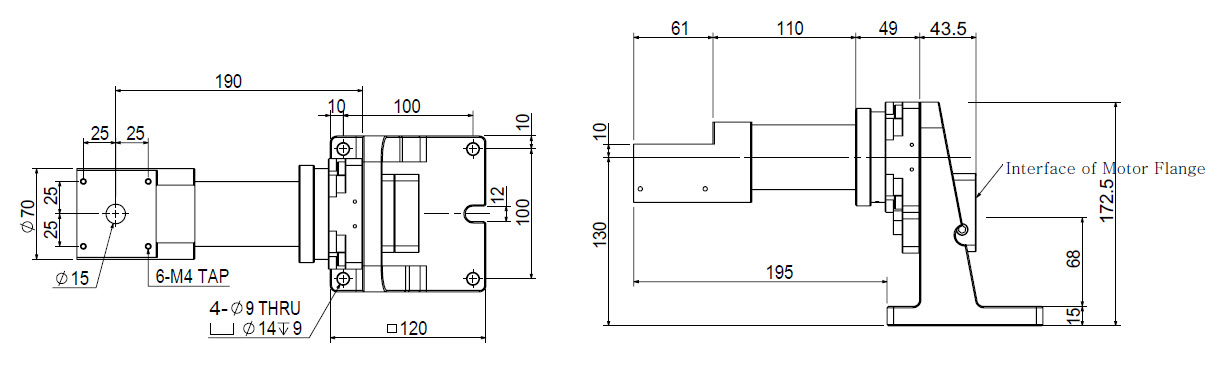

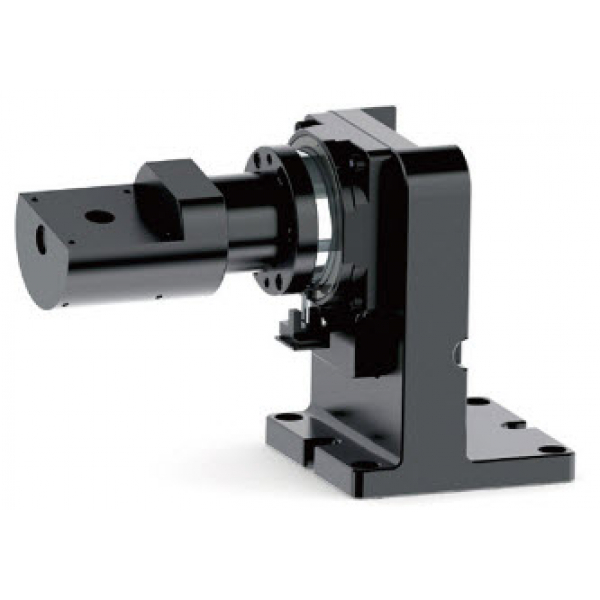

Click Below Images To Enlarge
|
Parameter |
Unit |
RTMA85-190 |
|
|
|
|
|
|
|
Rotation range |
deg |
+/- 180◦ |
|
|
Drive, gear ratio |
|
Motorized geared |
|
|
Max speed
|
RPM |
60 RPM (with stepper) 120 RPM (with servo) |
|
|
Repeatability (unidirectional) |
Arc-sec |
30 |
|
|
Radial load |
micron |
6 |
|
|
Stage weight |
Kg |
3 |
|
|
Home sensor |
|
yes |
|
|
Construction |
|
anodized aluminum |
|
