XYZ Gantry BEMA-W45-300x300x100
When done selecting products to quote, click “Request Quote/Information” button.
This will take you to check-out page to send quote request to IntelLiDrives.
Gantry style cartesian robots with large working areas. All moving axes located above work area.
- Synchronized XY Gantry
- Stroke 300x300x 100(300) mm
- Stepper or servo motor drive
- On-axis repeatability 50 microns
- Motorized belt mechanism
Click Below Images To Enlarge

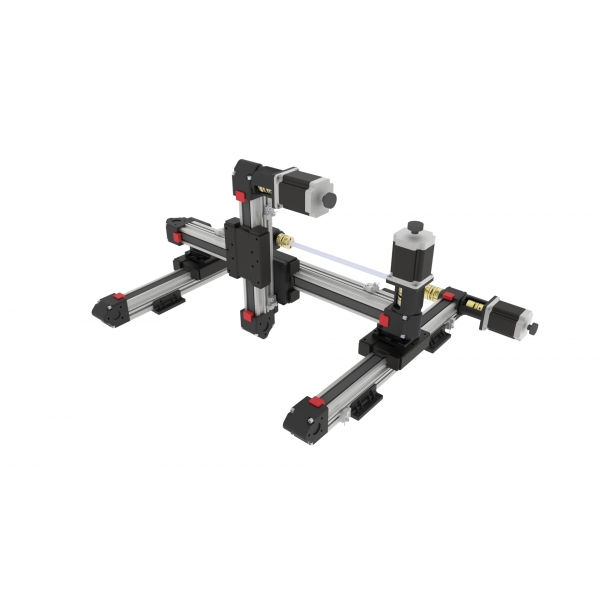

SHOWN WITH Z STROKE 100 mm
| Actuator |
BEMA-45 (X,Y,Z) |
| Stroke X x Y |
300x300x100 mm |
| Pitch |
75 mm/motor rev |
| Motor mounts |
Nema23 |
| Motor type |
stepper servo/encoder |
| Repeatability on-axis |
± 50 microns |
| Load capacity |
10 kg (XY), 5 kg (Z) |
| Max screw speed |
2 m/sec |
Notes: Travel strokes available from 100 to 1,000 mm
in each axis. For longer strokes contact the factory
