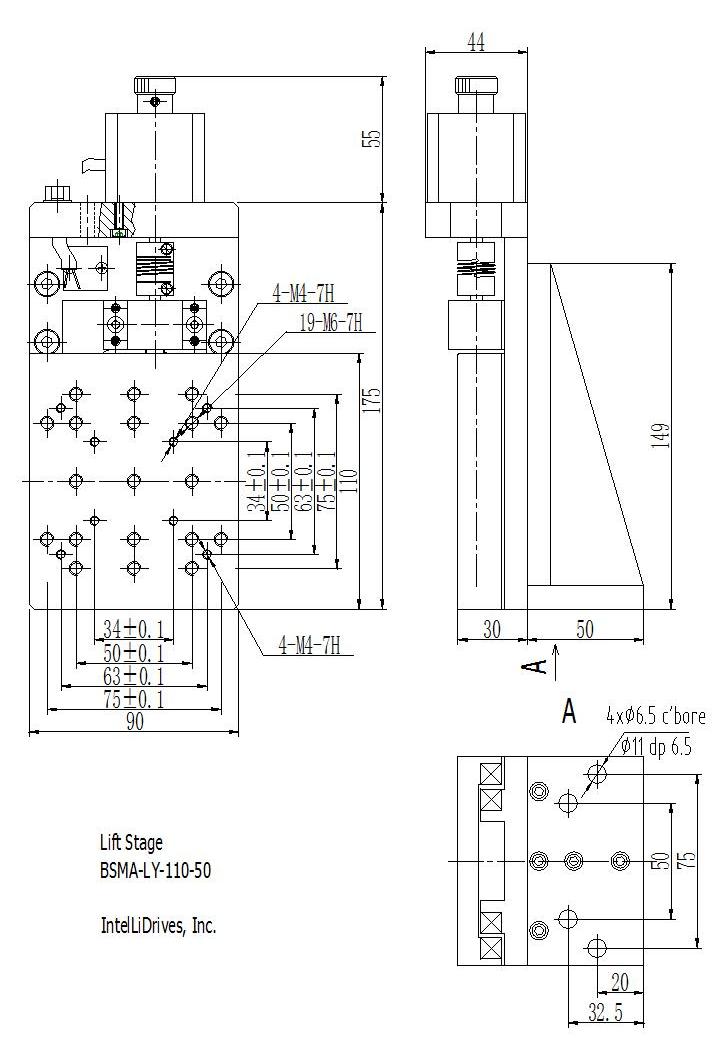

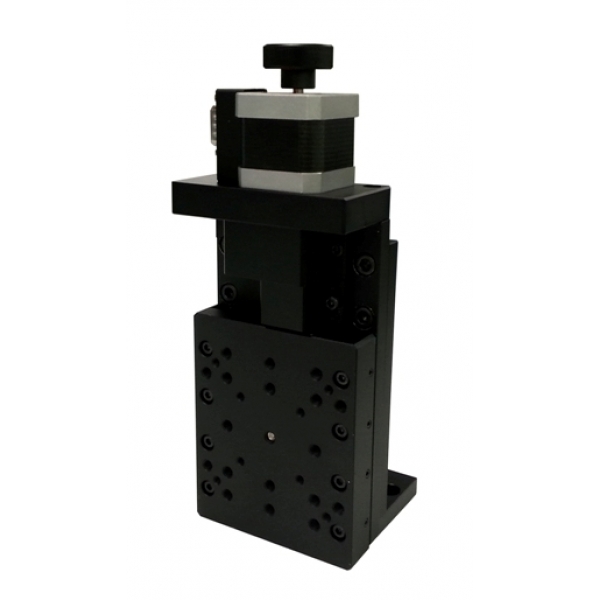

Lift Stage BSMA-LY-110-50
 Click to enlarge |
Lift 50 mm Load 5 Kg |
Lift linear motorized modules integrate recirculating ball bearing system with a precision ball screw in a compact frame that meets the speed and precision requirements of modern production machinery. The internal runner blocks and carriages are driven by preloaded zero-clearance ball screw/nut system. These units achieve travel speeds of up to 20 mm/sec and a positioning repeatability of 5 microns when driven with rotary stepper or brushless servo motors.
 Lift Stage BSMA-140H-50 BSMA-LY-140H-50 $0.00 |
Lift Stage BSMA-140H-100 BSMA-LY-140H-100 $0.00 |
 Lift Stage BSMA-140H-200 BSMA-LY-140H-200 $0.00 |
 Lift Stage BSMA-140H-300 BSMA-LY-140H-300 $0.00 |
| Lift Stage BSMA-140H-400 BSMA-LY-140H-400 $0.00 |
 Lift Stage BSMA-LY-110H-30 Z-BSMA-LY-110H-30 $0.00 |
Lift Stage BSMA-LY-110-75 Z-BSMA-LY-110-75 $0.00 |
|
Model |
BSMA-LY-110-50
|
|
Stroke, mm |
50 |
|
Mechanism |
motorized ball screw |
|
Screw lead, mm |
1 |
|
Repeatability, micron |
5 |
|
Max speed, mm/sec |
10 (stepper) 20 (servo) |
|
Load capacity, kg |
5 |
|
Motor |
stepper, servo/encoder |
|
Stage weight, kg |
1.4 |
There are no ordering details for this product.
