News-Rotary Actuator ServoBelt



SERVO BELT

LARGE APERTURE

ROTARY ACTUATOR

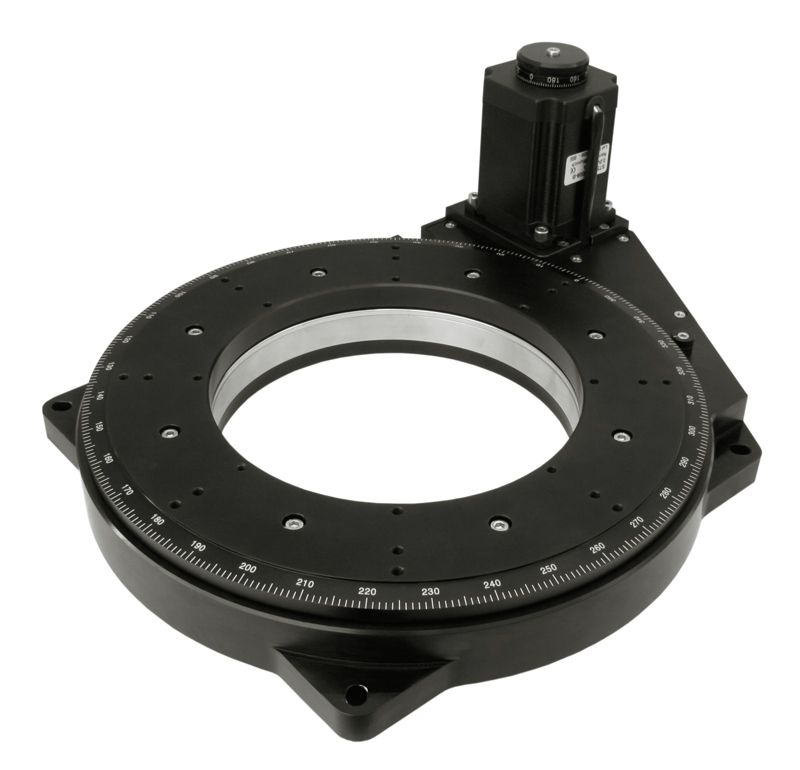

Cost effective motorized belt driven Large Aperture Rotary Actuator RTHP-B-150 features high accuracy and repeatability in a low profile package for light to medium load applications.



      SPECIFICATIONS

  • Center aperture 150 mm

  • Low profile 38 mm

  • Unlimited rotation

  • Load capacity 50 kg

  • Speed 300 RPM

  • Repeatability 15 arc-sec

  • Preloaded 4-point ball bearing

  • Belt drive mechanism

  • Stepper/Servo motor with encoder

  • Motor up/down mount option
