News - RotoLinear Actuator



SPECIFICATIONS:

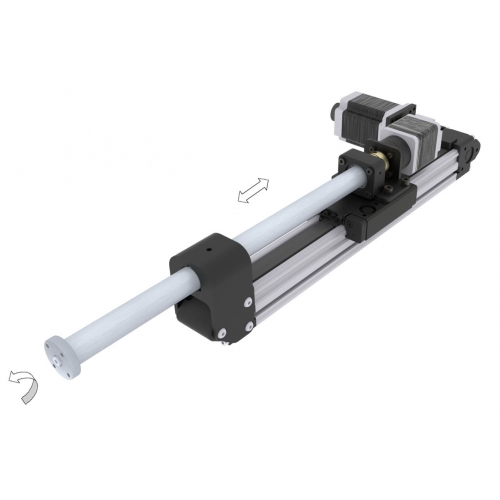

INDEPENDENT TRANSLATION and ROTATION
LINEAR STROKE 70 ... 320 mm
ROTATION UNLIMITED
REPEATABILITY 50 micron
RESOLUTION 25 micron
LOAD CAPACITY 3Kg

Z-THETA Positioning Module is a high performance miniature actuator designed to replace bulky electro-mechanical actuators in pick-and-place automated assembly and component placement, alignment, adhesive dispensing, electronic packaging and opto-electronic applications.

Narrow actuator design allows multiple units to be placed together on small mounting surface
These stages motorized with stepper motors with optional encoder for closed loop controls.



SHOWN as Lift and Rotary Stage in XYZR gantry system


For additional information visit

http://www.intellidrives.com/linear-rotary-combination-c-24.html/Roto-Linear_Actuators/RotoLinear_Actuators_RLTX-40
