News-Rotary Table XY Table Combo

Welcome to IntelLiDrives E-News.

You will receive this electronic newsletter on a periodic basis highlighting current events, new products and key IntelLiDrives product lines as well as other pertinent information



XY TABLE

ROTARY TABLE

combination stage



features small profile and

high precision

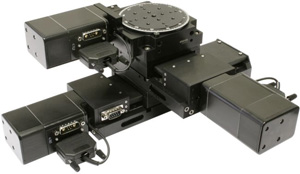

Precision motorized XY Table - Rotary Table LSMA-RTHM combination positioning stages offer superior positioning performance in a very compact, low profile unit. They are ideal for space-critical optical, semiconductor, laser and vacuum applications. Constructed from a special lightweight machined aluminum alloy to provide high stiffness and long-term stability with linear ball bearings for low friction and superior motion smoothness. These precision actuators with micrometer-grade 0.5 mm pitch screws provides exceptional accuracy, repeatability, and ultra-fine positioning resolution. Stages can be driven by brushless servo or micro-stepped motor.

Specifications:

Parameter / Axis XY Table Rotary Stage
travel range

50 ... 200 mm

360 deg
resolution (*) 0.25 micron 3 arc-sec
max speed(*) 25 mm/sec 10 rpm
max load 10 Kg
axes

linear actuator

LSMA-200

rotary table

RTHM-191

motor

micro-stepper, DC servo, "Smart motor"

* - parameter dependent on the motor/encoder combination
