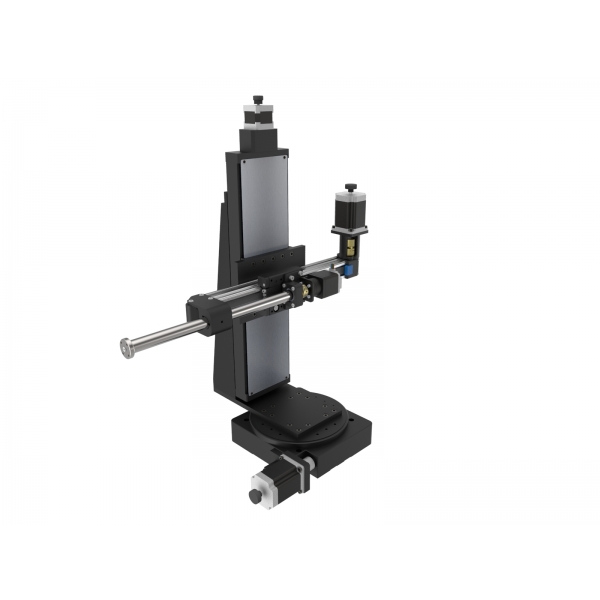

RZY-RTLA-90-200-LY-140H-300-RLTX40-220


Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.

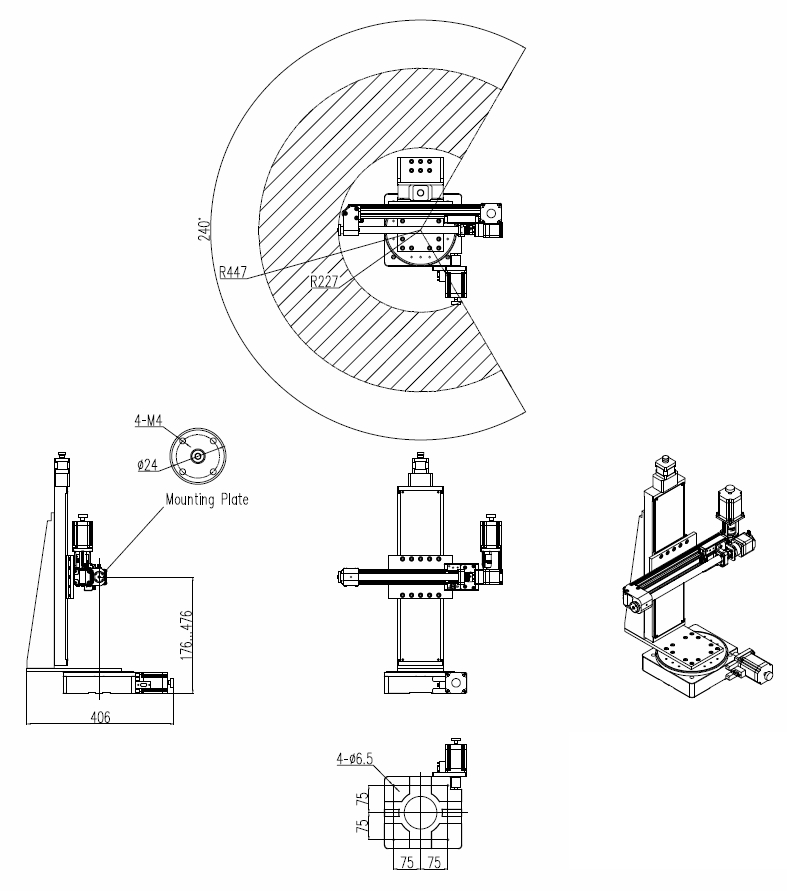

DescriptionSpecificationsDrawingsRelated

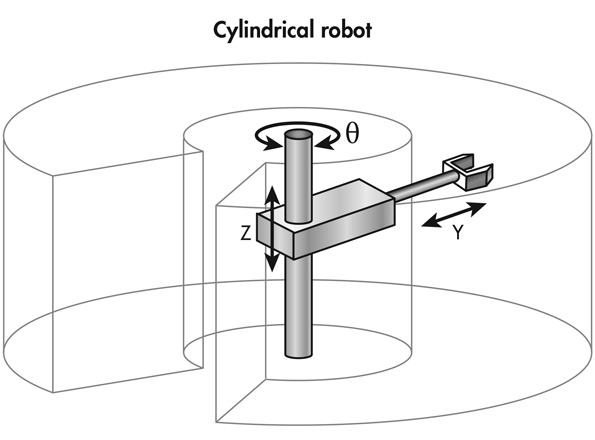

A cylindrical robot has at least one rotary joint at the base and at least one prismatic joint to connect the links. Along the joint axis, the rotary joint uses a rotational motion; along the prismatic joint, it moves in a linear motion. Their movements occur within a cylindrical-shaped work envelope. Cylindrical robots are used for assembly operations, handling of machine tools and die-cast machines, and spot welding.

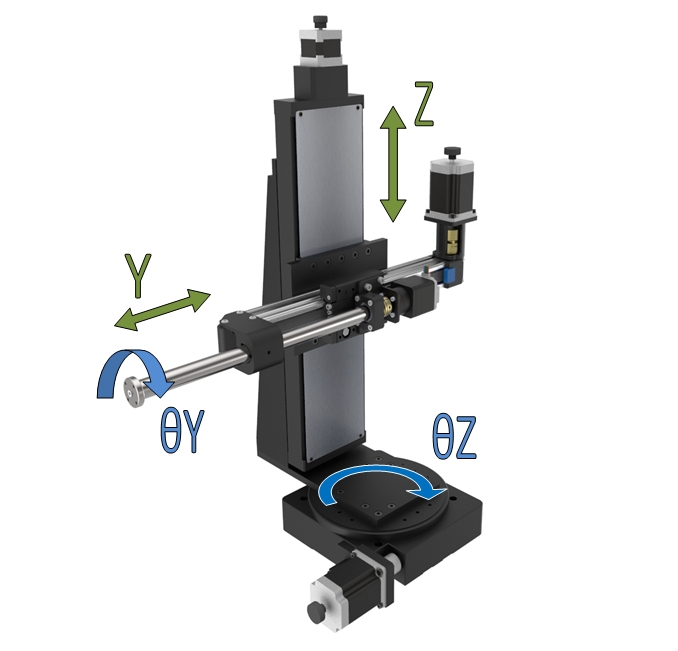

 - Z stroke 50...600 mm

 - Y stroke 50-320 mm
 - θY unlimited rotation

 - θZ 240°

Click Below Images To Enlarge

There are no related products for this product.

θZ

RTLA-90-200

 Spec

Lift Stage

BSMA-LY-140H-300

 Spec

Y and θY

RLTX40-220

Spec
Y/θY


Rotation (degrees)

240

Lift (mm)

300

Stroke (mm)/Rotation (degrees)

220/unlimited

Repeatability (arcsec)

45

Repeatability (µm)

10

Repeatability (µm/arc-sec)

50/60

Resolution (µm)

Motor and driver dependent

Resolution (arc-sec)

Motor and driver dependent

Load (kg)

3

Weight (kg)

9

Weight (kg)

5.5

Weight (kg)

3

Angular velocity (rpm)

3

Max velocity (mm/sec)

100

Velocity

500/150

Mechanism,

ratio

worm gear

180:1; 90:1; 45:1

Mechanism,

screw lead (mm)

ball screw

4

Mechanism,

ratio

belt lead 75mm/ gear 63:17

Motor

stepper/servo

Motor

stepper/servo/encoder/ Smart

Motor

stepper
