Rotary Table RTSA-130

hollow rotary table
Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.
DescriptionSpecificationsDrawingsRelated

RTSA Series motorized rotation stages provide precision angular positioning accuracy combined with high load
capacity. There are three stage sizes with center aperture from 20 mm to 60 mm available, optimizing load
capacity, torque, speed and resolution for a variety of operating conditions. Tappered roller bearings allow for off center
loads in a reduced footprint. The single monolithic design offers improved stiffness without
compromising dynamic performance. Precise rotation is ensured by bevel gear design with gear reducers to offer multiple
choices of gear ratios. RTSA stages are driven by the stepper motors or servo motors  with incremental or abslolute multi-turn encoders.

Rotary tables RTSA Series can be offered in these variants:

without gear reducer



with in-line gear reducer



with 90 degrees right angle reducer





Click Below Images To Enlarge

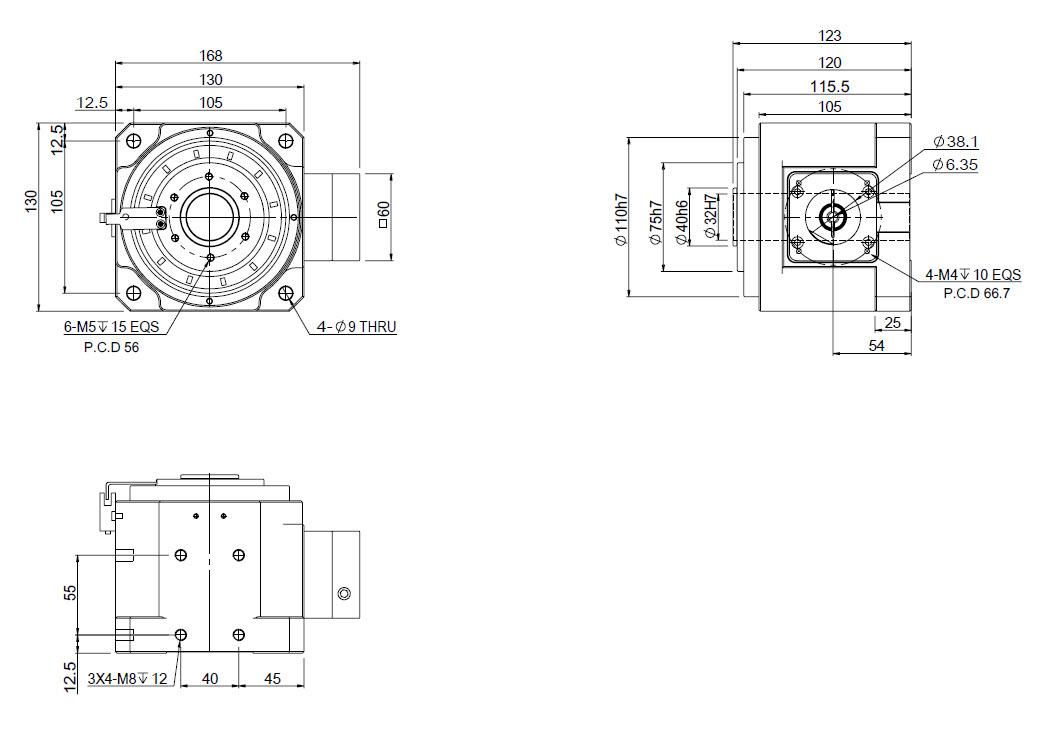

RTSA-130-03 (SHOWN WITHOUT GEAR REDUCER AND WITHOUT MOTOR)
GEAR RATIO 3:1

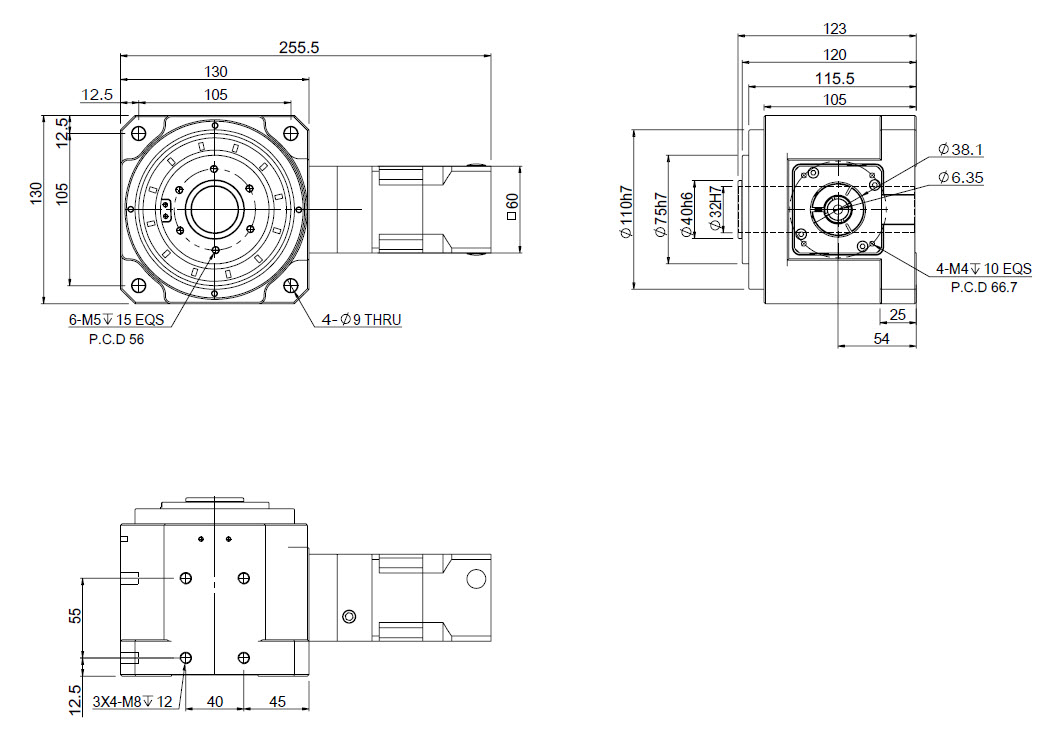

RTSA-130-GR (SHOWN WITH GEAR REDUCER AND WITHOUT MOTOR)
GEAR RATIO GR = 9, 15, 30)




Rotary Table RTSA-90
Rotary Table RTSA-90
Rotary stage RTSA-90


Table size 90 mm

Aperture 20 mm

Load 30 Kg

Motors: Stepper or Servo/encoder

Rotary Table RTSA-130
Rotary Table RTSA-130
Rotary Table RTSA-130


Table size 130mm

Aperture 32 mm

Load 150 Kg

Motors: Stepper or Servo/encoder

Rotary Table RTSA-200
Rotary Table RTSA-200
Rotary Table RTSA-200


Table size 200 mm

Aperture 60 mm

Load 300 Kg

Stepper/Servo-encoder



PARAMETER / MODEL





Unit



RTSA-90



RTSA-130



RTSA-200

Bearing



TAPERED ROLLER BEARING

Hollow shaft

mm

20

32

60

Table size

mm

85

130

200

Gear ratio (motor/table)
(note 1)
  3, 9, 15, 30 3, 9, 12, 15, 30 5, 15, 25, 50

Max torque

Nm

30

65

110

Max speed motor shaft side
(note 2)

rpm

2000

Repeatability (Unidirectional)

arc-sec

20

Reversal Value (Hysteresis)

arc-min

1

Axial load

kg

30

150

300

Off-center moment load

Nm

150

400

650

Axial run-out

microns

15

Parallelism

microns

20

Stage weight

kg

3

8

22

Motor



Stepper motor, Stepper motor with encoder

Servo motor with encoder (incremental 4000 and 10,000 cpr and absolute  multiturn 17/16 bits)

Translated resolution    typ 5-20 arc-sec
dependent on the motor type, encoder, motor drive and gear ratio

Protection



IP40
