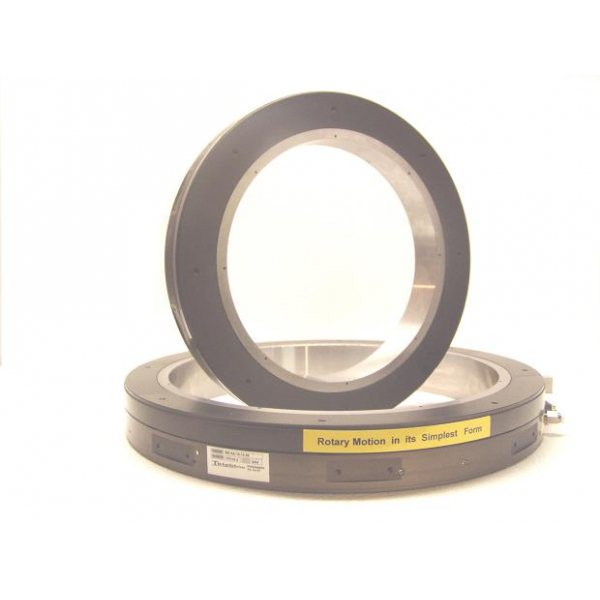

Rotary table RR-14-10
Click to see movie clip ( Windows Media Player plug-in required)
RotoRing rotary tables provide superior angular positioning and are designed to eliminate backlash, friction and wear problems associated with worm, gear and belt drives.
They combine axial brushless RotoLinear motoring modules and planar air bearings in a compact, low profile, direct drive configuration.
Large area air bearings provide sufficient stiffness for large payloads and maximizes performance in respect to wobble and run-out.
Radially distributed brushless RotoLinear motoring modules provide high positioning stiffness during rotary indexing and when installed on moving XY tables.
These rotary tables provide unlimited rotation capability and precise velocity control.
RotoRings feature "large open center design". In general automation applications large open center offers the opportunity to access parts from inside and outside of the table simultaneously.
This feature allows robotic devices, pick and place and ancillary tooling to be mounted inside the table, saving floor space and reducing parts handling with increased productivity.
 Rotary table RTH-200 RTH-200
Diameter 204 mm Aperture 22 mm Height 37 mm |
 Rotary Table RR-18-14 RR-18-14
Diameter 454 mm Aperture 355 mm Height 56 mm |
 Rotary table RTH-100 RTH-100
Diameter 100 mm Aperture 20 mm Height 34 mm |
 Rotary table RTH-140 RTH-140
Diameter 140 mm Aperture 36 mm Height 37 mm |
 Rotary table RR-10-6 RR10-6
Diameter 254 mm Aperture 152 mm Height 37 mm |
|
Parameter |
RR-14-10 |
|||
|
Peak torque |
Nm |
10 |
25 |
30 |
|
Repeatability, open loop |
arc-sec |
3 |
||
|
Repeatability, with feedback |
arc-sec |
1.8 |
1.5 |
1.4 |
|
Resolution (note 1) |
arc-sec |
1.8 |
1.5 |
1.4 |
|
Max speed |
rpm |
120 |
80 |
60 |
|
Motor type (note2) |
|
2 phase brushless |
||
|
Number of phases |
|
2 |
||
|
Current per phase |
Amp |
3 |
1.5 |
1.5 |
|
Bearing type |
|
air |
||
|
Air bearing pressure |
atm |
3.5 |
||
|
Air bearing run-outs |
microns |
5 |
||
|
Air bearing gap |
microns |
12 |
||
|
Finish |
|
hard anodized aluminum |
||
|
Outside diameter |
mm |
254 |
355 |
450 |
|
Aperture diameter |
mm |
152 |
254 |
355 |
|
Total height (rotor and stator) |
mm |
37 |
45 |
56 |
Note 1: with micro-stepping drive, 250 micro-steps/step
Note 2: can be controlled with micro-stepping drive in open loop
or in closed loop servo mode (RR-10-6)
