Tilt-Yaw (A/B) Rotary IDTT-2D-125


Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.

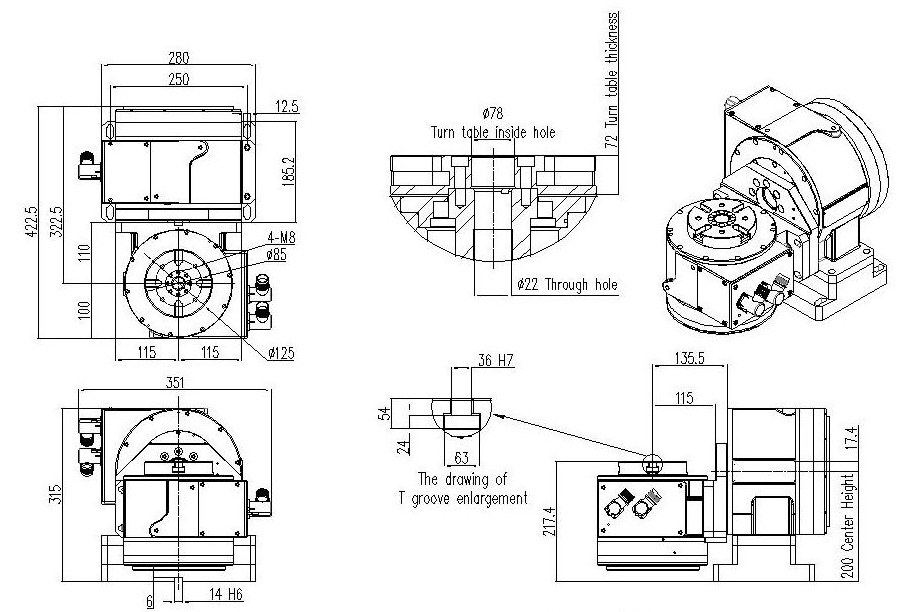

DescriptionSpecificationsDrawingsRelated

Integrated Tilt-Yaw (A/B) two-axis rotary assembly provides high-speed machining capabilities for complex 3D part geometries. The precision-aligned system allows accurate positioning on a hemispherical surface. Direct-drive rotary tables allow significantly higher throughput and maintenance-free operation when compared to gear- and screw-driven technology. A high resolution encoder enables axes to run at wide range of speeds while maintaining excellent velocity control and positioning accuracy. This two axes platform allows various yaw table height locations and scalable counterbalance.



IntelLiDrives manufactures custom two- and three degree of freedom rotational systems using integrated direct drive rotary tables SRT, RotoRing and AccuRing Series.



Contact us with application requirements.

Click Below Images To Enlarge

There are no related products for this product.



tilt

(A axis)

yaw

(B axis)

mechanism

direct drive

 direct drive

max speed

 200 rpm

 400 rpm

max torque

 180 Nm

 80 Nm

rotation

±110°

n*360°

runouts

 20 microns

 20 microns

repeatability

 4 arc-sec

resolution

 4 arc-sec

orthogonality

 20 microns

load weight

 20 Kg

encoder absolute
lbrake optional
IP rating IP65 ... IP67
