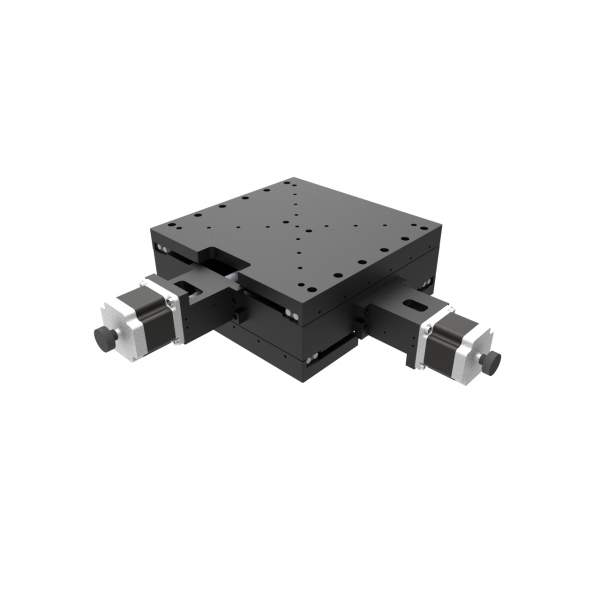

XY-BSMA-100x100WJ

small XY table
Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.
DescriptionSpecificationsDrawingsRelated

Simple stackable turn-key XY table solution with travel stroke

100x100 mm, motorized ball screw mechanism



Options include:



- ball screw drive

- stepper or servo motor

- optional rotary table installation




Click Below Images To Enlarge

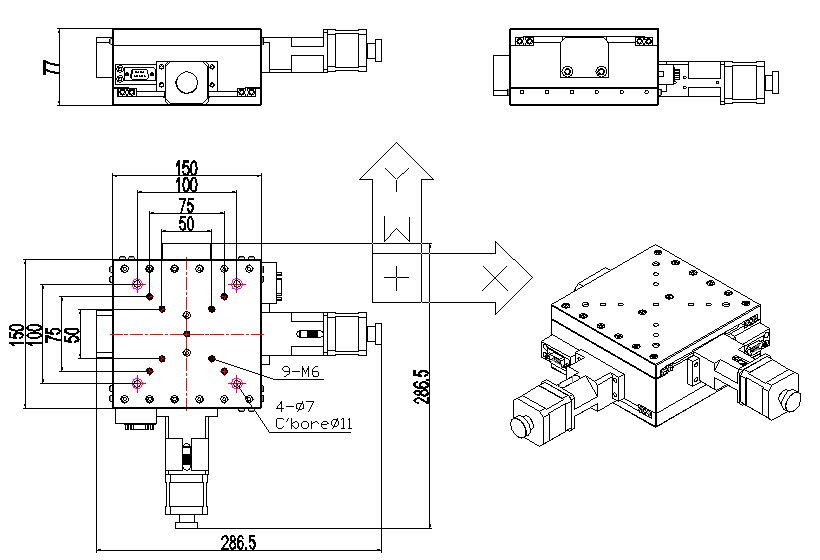

XY-BSMA-100x100WJ-N17 (WITH NEMA17 MOTOR)

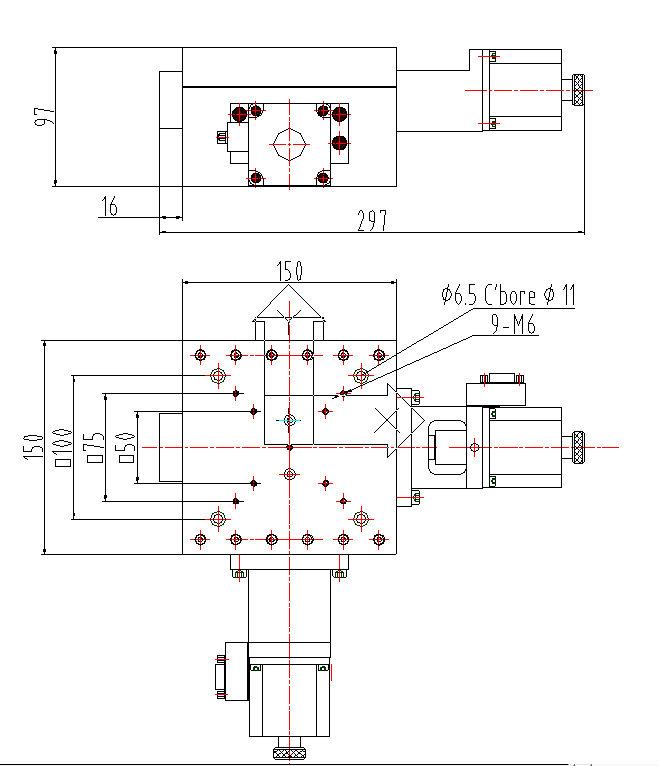

XY-BSMA-100x100WJ-N17 (WITH NEMA23 MOTOR)




There are no related products for this product.
Actuator

Motorized ball screw

Stroke X x Y

100x100 mm

Ball screw lead

4 mm standard
1 mm option

Motor mounts

 Nema 17

Motor type

stepper

servo with encoder (4000cpr)

Repeatability

± 5microns

Load capacity

20 kg

Max speed

40 mm/sec (stepper)

80 mm/sec (servo/encoder)
Drive dependent
Contact factory
