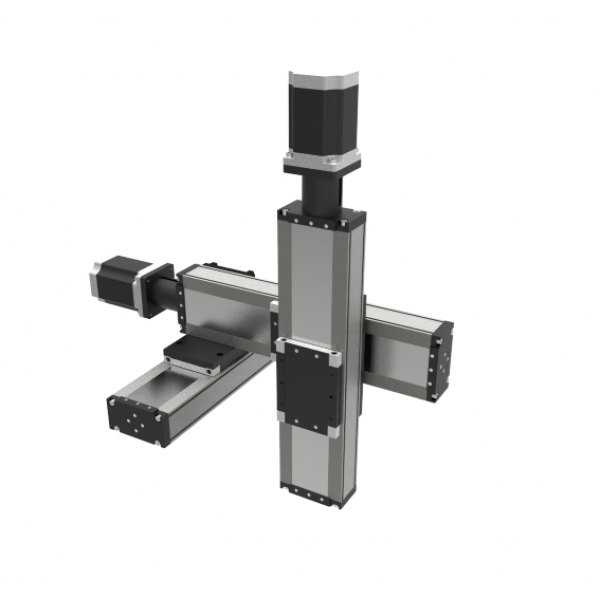

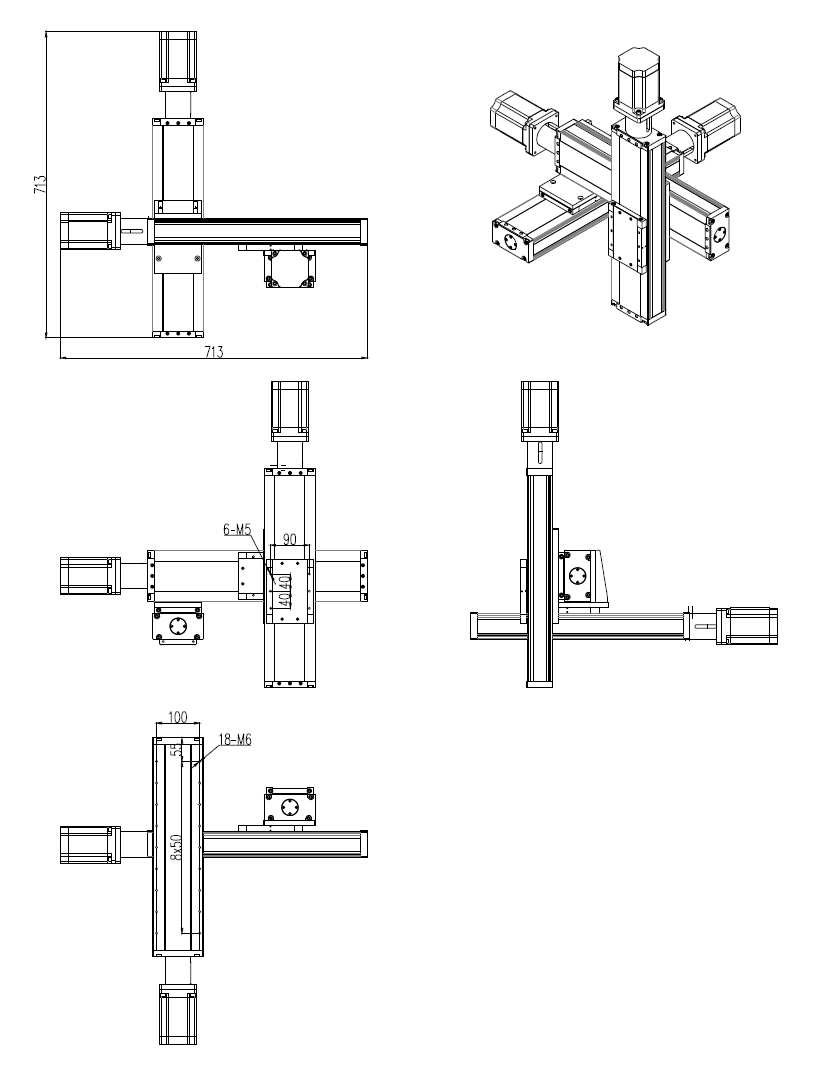

XYZ-BSMAE-F120X-300x300x300
Low profile motorized actuators with precision ball screw provide exceptional accuracy, repeatability and ultra-fine positioning resolution capability to 1 micron in a very compact, low profile unit. They are ideal for space-critical applications such as optical, laser applications and vacuum operation.
Actuator |
|
BSMAE-F120 |
XYZ Stroke |
mm |
X 100...1500 |
Screw lead |
mm |
5, 10 |
Motor mounts size |
|
Nema17 (Nema23) |
Motor type |
|
Stepper (standard) Servo/encoder |
Load |
kg |
10 |
Repeatability |
micron |
30 |
Stage weight |
kg |
6 |
Speed |
mm/sec |
50 - 100 (stepper) 100 - 200 (servo) |
Open loop Micro-stepping resolution = screw_lead/200/microsteps_per_step
where: motor has 200 full steps/rev;
driver micro-stepping resolution 64, 128, 256 micro-steps/step
Closed loop servo resolution = screw_lead/encoder_cpr/4
where: encoder_cpr is number of encoder counts per revolution;
4 is post-quad processing in the motion controller
