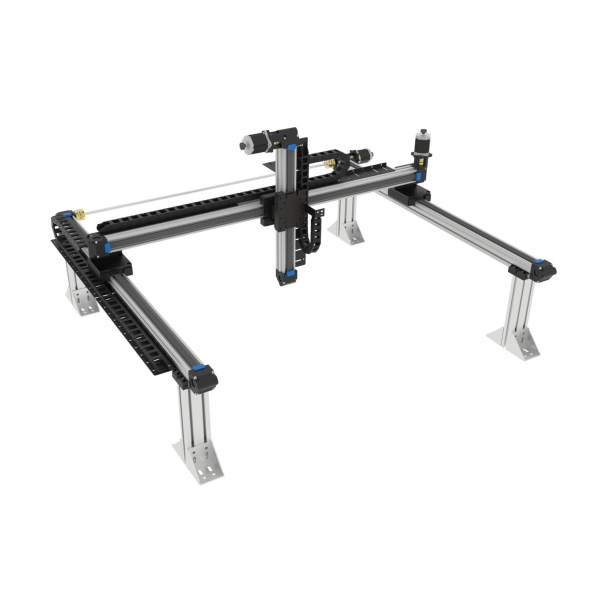

XYZ GANTRY BEMA-60-1000x1000x300 (15)

XYZ
Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.

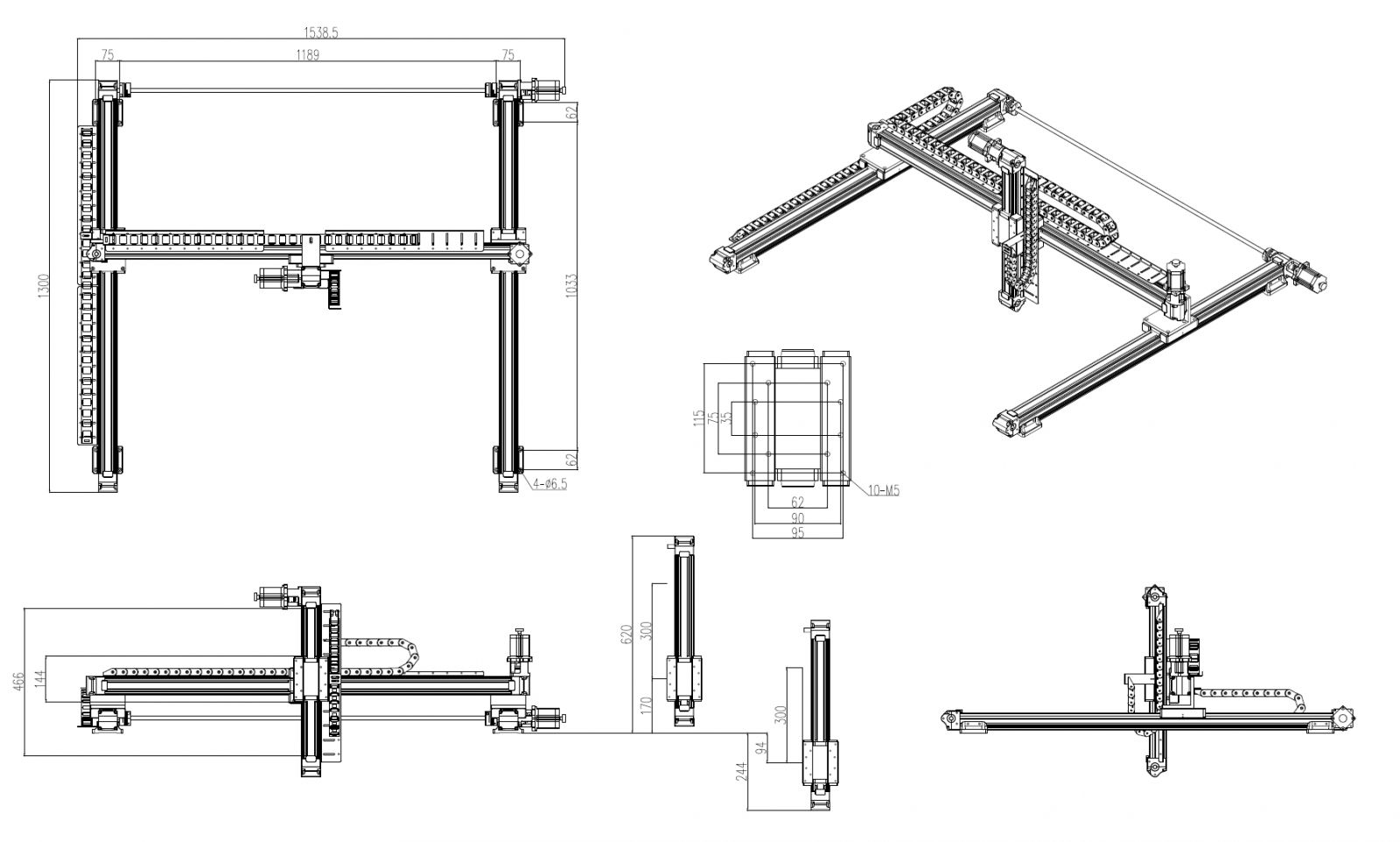

DescriptionSpecificationsDrawingsRelated

Gantry style cartesian robots with large working areas. All moving axes located above work area.



-  Synchronized XY Gantry
-  Stroke 1000x1000x300 mm

-  Stepper or servo motor drive

-  On-axis repeatability 50 microns
-  Motorized belt mechanism















Click Below Images To Enlarge

XY Gantry BEMA-W45-600x600
XY Gantry BEMA-W45-600x600
XY_Gantry_BEMA-W45-600x600

Stroke 600 x 600 mm

Load 10 kg
Repeatability 50 microns
Synchronized belt mechanism

Custom Configurations
Custom Configurations
Custom_Configurations_BEMA
XY Gantry BEMA-W45-1000x1000
XY Gantry BEMA-W45-1000x1000
XY_Gantry_BEMA-W45-1000x1000

Stroke 1000 x 1000 mm

Load 10 kg
Repeatability 50 microns
Synchronized belt mechanism

XY Gantry BEMA-W45-1500x1500
XY Gantry BEMA-W45-1500x1500
XY_Gantry_BEMA-W45-1500x1500

Stroke 1500 x 1500 mm

Load 10 kg
Repeatability 50 microns
Synchronized belt mechanism

XYZ Gantry BEMA-W60-1000x1000x300
XYZ Gantry BEMA-W60-1000x1000x300
XYZ_Gantry_BEMA-W60-1000x1000x300

Stroke 1000x1000x300  mm

Load 30 kg (XY), 2 kg (Z)
Repeatability 50 microns
Synchronized belt mechanism

XYZR Gantry BEMA-W60-1000x1000x220x360
XYZR Gantry BEMA-W60-1000x1000x220x360
XYZR Gantry BEMA-W60-1000x1000x300x360

Stroke XYZ 1000x1000x220  mm
Rotation 360 (4th axis)

Load 30 kg (XY), 3 kg (Z-R)
Repeatability 50 microns
Synchronized belt mechanism

XY Gantry BEMA-W45-300x300
XY Gantry BEMA-W45-300x300
XY_Gantry_BEMA-W45-300x300

Stroke 300 x 300 mm

Load 10 kg
Repeatability 50 microns
Synchronized belt mechanism

XYZ Gantry BEMA-W45-300x300x100
XYZ Gantry BEMA-W45-300x300x100
XYZ_Gantry_BEMA-W45-300x300x100

Stroke 300x300x100(300)  mm

Load 5 kg (Z)
Repeatability 50 microns
Synchronized belt mechanism

XY Gantry Open Frame BEMA45-300x300
XY Gantry Open Frame BEMA45-300x300
XY-OF-W45-300x300

Stroke 300x300 mm

Aperture 300x300 mm

Table top 380x380 mm

Load 15 Kg

Vertical XY gantry Type1 BEMA-W60-1500x1500
Vertical XY gantry Type1 BEMA-W60-1500x1500
Vertical XY gantry Type1 BEMA-W60-1500x1500

Stroke 1,500x1,500 mm

Load 15 Kg
Repeatability 50 microns
Synchronized belt mechanism



Vertical XY gantry Type2 BEMA-W60-1500x1500
Vertical XY gantry Type2 BEMA-W60-1500x1500
Vertical XY gantry Type2 BEMA-W60-1500x1500

Stroke 1,500x1,500 mm

Load 15 Kg
Repeatability 50 microns
Synchronized belt mechanism



Actuator

BEMA-60 (X,Y,Z)

Stroke X x Y

1000x1000x300 mm
(see Note below)

Pitch

90 mm/motor rev

Motor mounts

 Nema23

Motor type

stepper

servo/encoder

Repeatability
on-axis

± 50 microns

Load capacity

15

Max screw speed

2 m/sec
(motor/drive dependent)


Notes: Travel strokes available from 100 to 2,000 mm
in each axis. For longer strokes contact the factory
