GA-110-098-080-600x600x150


Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.
DescriptionSpecificationsDrawingsRelated

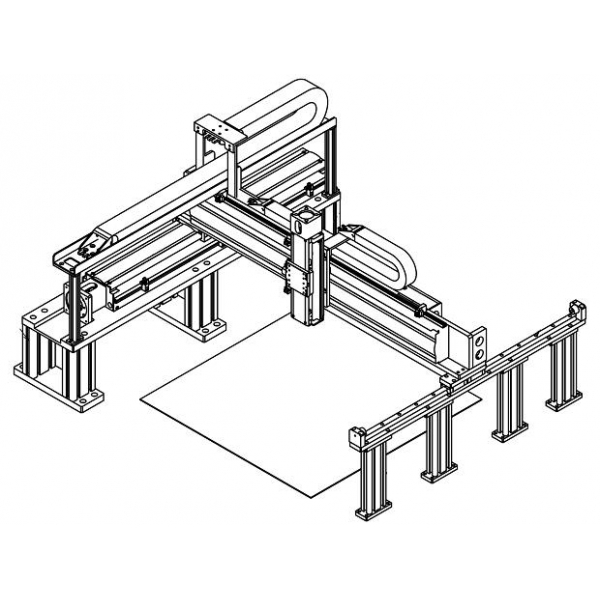

Gantry style cartesian robots with large working areas. All moving axes located above work area.



-  XYZ Gantry 600 x 600 x 150 mm travel

-  Ball screw mechanism

-  Stepper or servo motor driven



Options include:



- larger or smaller travel stroke

- precision grade

- ball screw lead

- motor type (stepper or servo/encoder)

- rotary table installation















Click Below Images To Enlarge

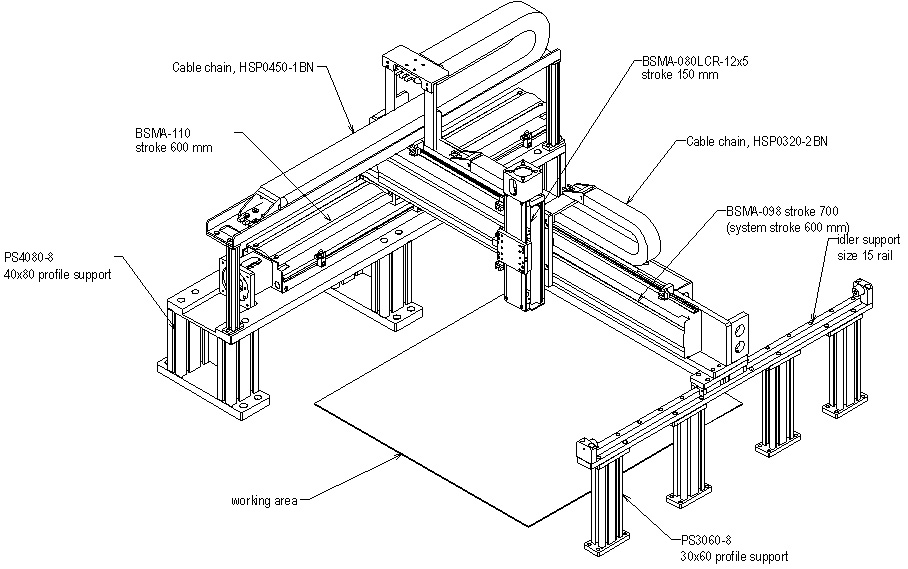

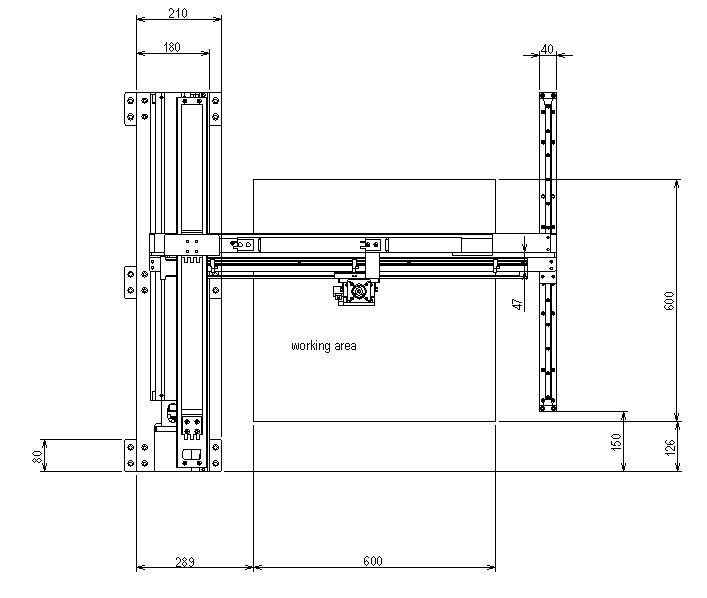

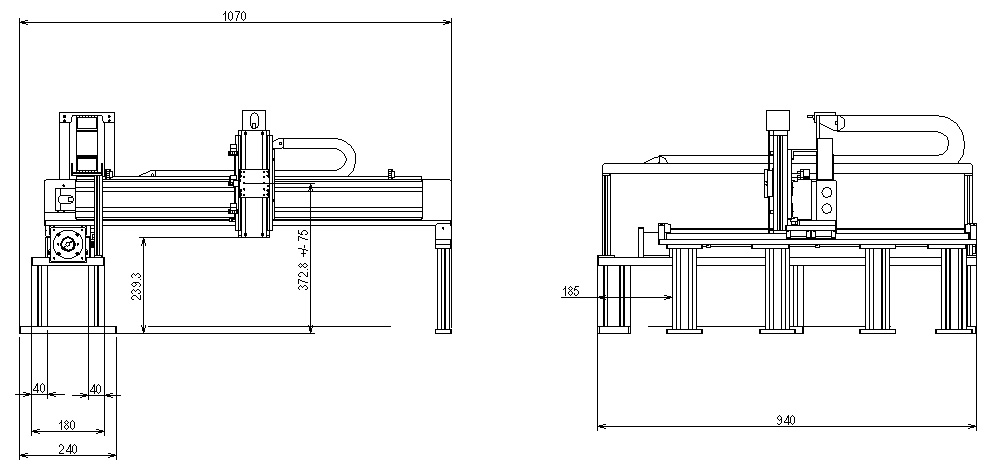

STROKE XYZ 600 x 600 x 150 mm





There are no related products for this product.
Actuators

BSMA-110 (X)

BSMA-098 (Y)

BSMA-080 (Z)

Stroke XYZ

600x600x150 mm

Ball screw lead

5, 10, 16, 20 mm

Motor mounts

 Nema23, M60, M80

Motor type

stepper

servo with encoder (4000cpr)

Repeatability

± 5 microns

Accuracy

20 microns / 300 mm

Load capacity

20 kg

Max screw speed

1,000RPS (stepper)

2,000RPS (servo/encoder)

RPS (rev/sec)

Speed in mm/sec = RPS x screw_lead
