Robot1-080-080-080-250x300x100


Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.
DescriptionSpecificationsDrawingsRelated

Compact desktop XYZ robot featuring work tool moving over stationary object.



-  XYZ Robot Type 1 Non-Split axes

-  Portable desktop solution

-  Stroke 250x300x150 mm

-  Ball screw mechanism

-  Stepper or servo motor driven



Options include:



- larger strokes

- precision grade

- ball screw lead

- motor type

- rotary table installation



Click Below Images To Enlarge

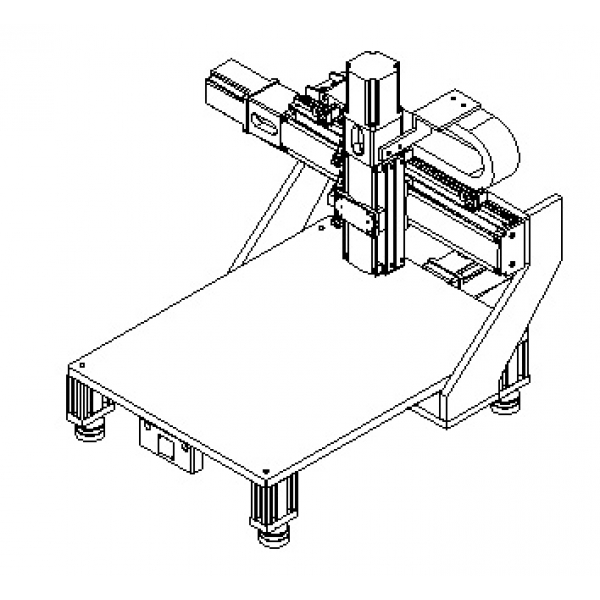

XYZ ROBOT TYPE 1 - NON-SPLIT AXES - WORKING STROKES 250 (X) x 300 (Y) x 100 (Z) mm



X axis actuator - motorized ballscrew, lead 16 mm, stroke 250 mm

Y axis actuator BSMA-080-300

Z actuator BSMA-080-100



There are no related products for this product.
Actuators

BSMA-080 (X, Y, Z)

Stroke XYZ

250x300x150 mm

Ball screw lead

5, 10 mm

Motor mounts

 Nema23, M60, M80

Motor type

stepper

servo with encoder (4000cpr)

Repeatability

± 5 microns

Accuracy

20 microns / 300 mm

Load capacity

10 kg

Max screw speed

1,000RPS (stepper)

2,000RPS (servo/encoder)

RPS (rev/sec)

Speed in mm/sec = RPS x screw_lead

For larger load capacity and strokes contact the factory
