Robot2-080-080-080-250x300x150


Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.
DescriptionSpecificationsDrawingsRelated

Split axes design with motorized YZ bridge traversing over moving X axis. This flexible configuration suited for conveyor fed automation or heavy vertical loads



-  XYZ Robot Type 2 Split axes

-  Stroke 250x300x150 mm

-  Ball screw mechanism

-  Stepper or servo motor driven



Options include:



- larger strokes available

- precision grade

- ball screw lead

- motor type (stepper or servo/encoder)

- rotary table installation



Click Below Images To Enlarge

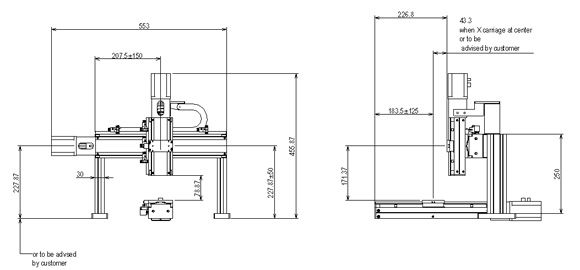

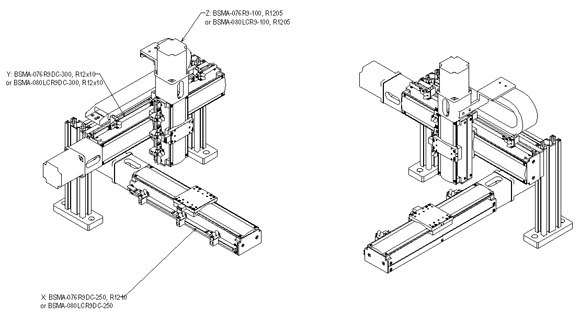

XYZ Robot 2 (Split axes) 250 (X) x 300 (Y) x 100 (Z) mm



X axis actuator BSMA-080-250

Y axis actuator BSMA-080-300

Z axis actuator BSMA-080-100







There are no related products for this product.
Actuators

BSMA-080 (X, Y, Z)

Stroke XYZ

250x300x150 mm

Ball screw lead

5, 10 mm

Motor mounts

 Nema23, M60, M80

Motor type

stepper

servo with encoder (4000cpr)

Repeatability

± 5 microns

Accuracy

20 microns / 300 mm

Load capacity

20 kg

Max screw speed

1,000RPS (stepper)

2,000RPS (servo/encoder)

RPS (rev/sec)

Speed in mm/sec = RPS x screw_lead

For larger load capacity and strokes contact the factory
