XY Gantry BEMA-W45-300x300

XY gantry with stepper motor
Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.
DescriptionSpecificationsDrawingsRelated

Gantry style cartesian robots with large working areas. All moving axes located above work area.



-  Synchronized XY Gantry
-  300 x 300 mm stroke

-  Stepper or servo motor drive

-  On-axis repeatability 50 microns
-  Motorized belt mechanism









Click Below Images To Enlarge

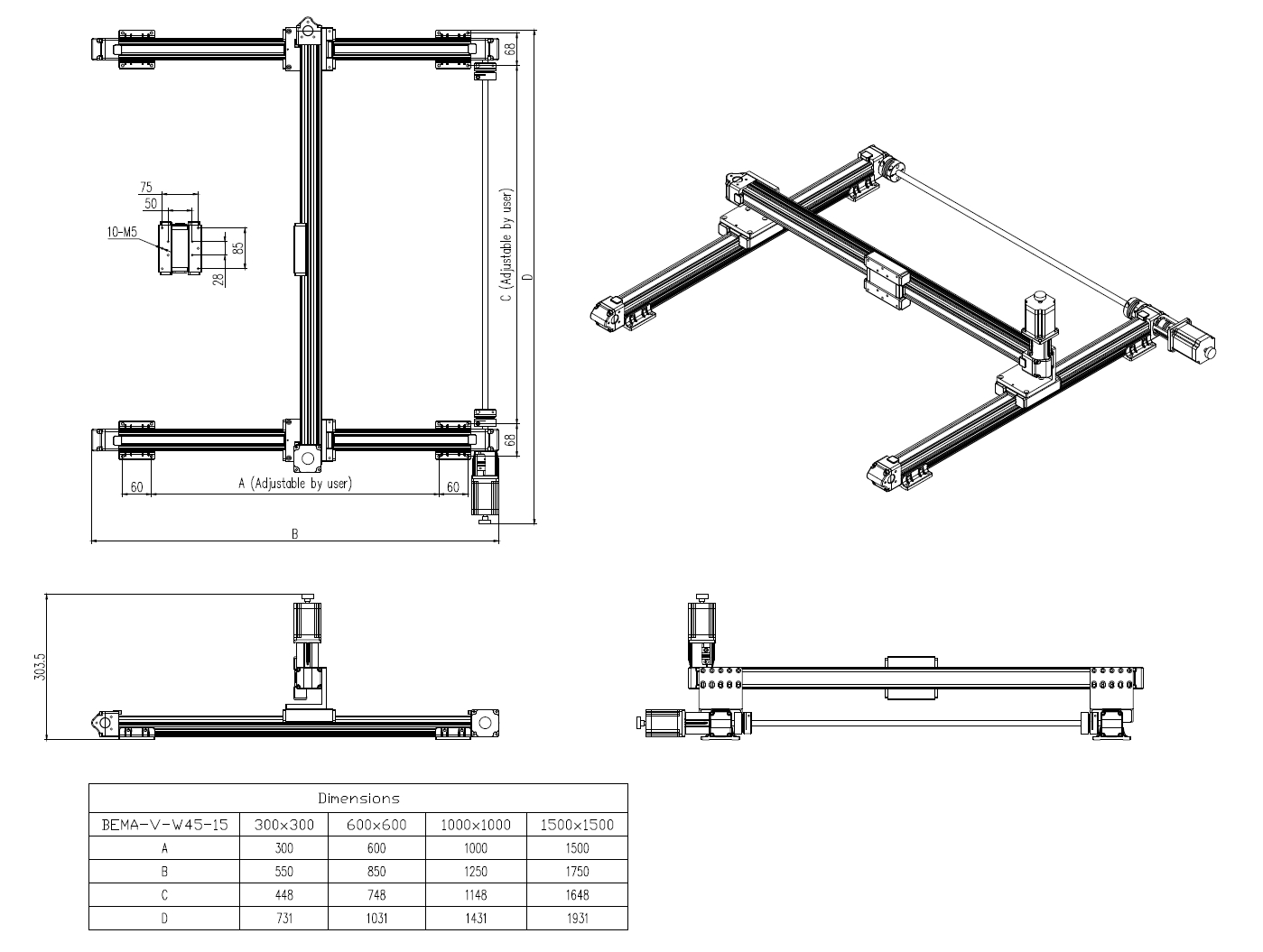

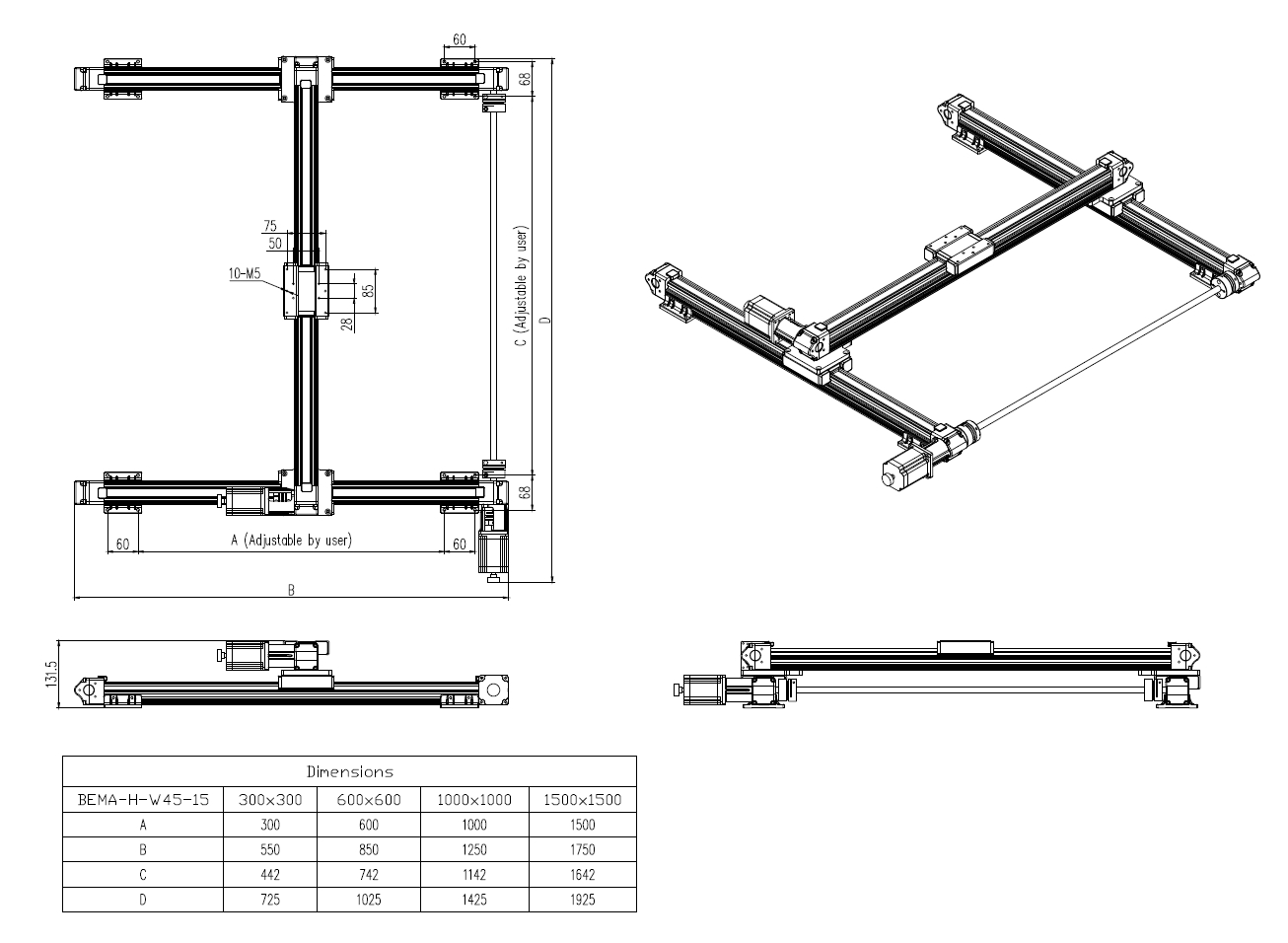

Y axis horizontally mounted




Y axis vertically mounted​​

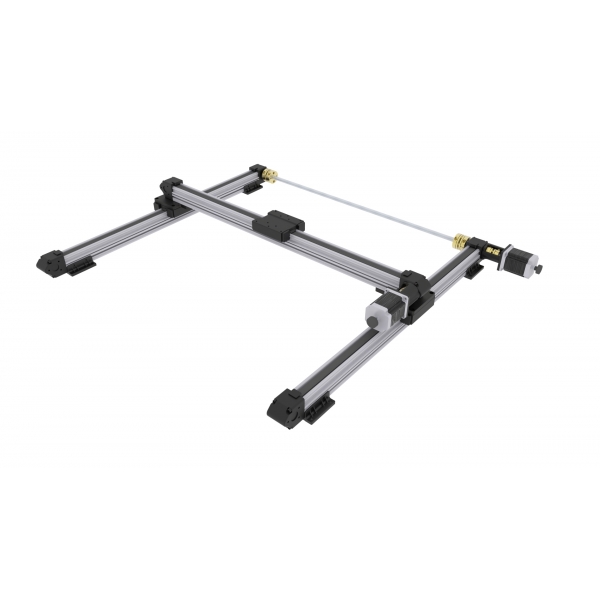

XY Gantry BEMA-W45-600x600
XY Gantry BEMA-W45-600x600
XY_Gantry_BEMA-W45-600x600

Stroke 600 x 600 mm

Load 10 kg
Repeatability 50 microns
Synchronized belt mechanism

Custom Configurations
Custom Configurations
Custom_Configurations_BEMA
XY Gantry BEMA-W45-1000x1000
XY Gantry BEMA-W45-1000x1000
XY_Gantry_BEMA-W45-1000x1000

Stroke 1000 x 1000 mm

Load 10 kg
Repeatability 50 microns
Synchronized belt mechanism

XY Gantry BEMA-W45-1500x1500
XY Gantry BEMA-W45-1500x1500
XY_Gantry_BEMA-W45-1500x1500

Stroke 1500 x 1500 mm

Load 10 kg
Repeatability 50 microns
Synchronized belt mechanism

XYZ Gantry BEMA-W60-1000x1000x300
XYZ Gantry BEMA-W60-1000x1000x300
XYZ_Gantry_BEMA-W60-1000x1000x300

Stroke 1000x1000x300  mm

Load 30 kg (XY), 2 kg (Z)
Repeatability 50 microns
Synchronized belt mechanism

XYZR Gantry BEMA-W60-1000x1000x220x360
XYZR Gantry BEMA-W60-1000x1000x220x360
XYZR Gantry BEMA-W60-1000x1000x300x360

Stroke XYZ 1000x1000x220  mm
Rotation 360 (4th axis)

Load 30 kg (XY), 3 kg (Z-R)
Repeatability 50 microns
Synchronized belt mechanism

Actuator

BEMA-45 (X,Y)

Stroke X x Y

300x300 mm

Pitch

75 mm/motor rev

Motor mounts

 Nema17, Nema23

Motor type

stepper

servo/encoder

Repeatability
on-axis

± 50 microns

Load capacity

10 kg

Max screw speed

2 m/sec
(motor/drive dependent)
