XZ-BSMAE-F80T-300x300


Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.

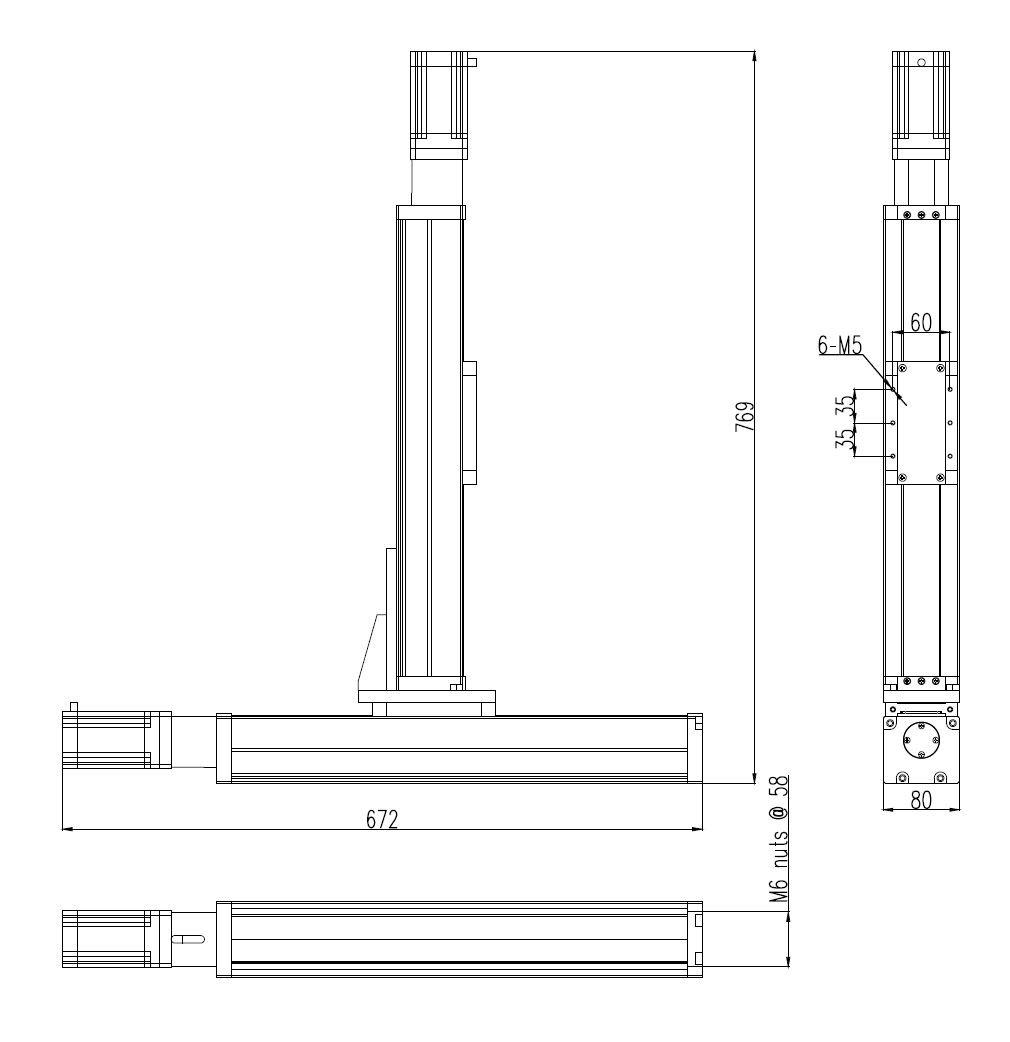

DescriptionSpecificationsDrawingsRelated

Low profile motorized actuators with precision ball screw provide exceptional accuracy, repeatability and ultra-fine positioning resolution capability to 1 micron in a very compact, low profile unit. They are ideal for space-critical applications such as optical, laser applications and vacuum operation.

Click Below Images To Enlarge

XY-RA-60-X150-Y150
XY-RA-60-X150-Y150
XY-RA-60-X150-Y150

Stroke 150 x 150 mm

Load 5 kg

XY-RA-60-X300-Y300
XY-RA-60-X300-Y300
XY-RA-60-X300-Y300

STROKE 300 x 300 mm

Load 5 kg

XY-RA-60-X600-Y300
XY-RA-60-X600-Y300
XY_RA-X600-Y300

STROKE 600 x 300 mm

Load 5 kg

XYZ-RA-60-X150-Y150-Z100
XYZ-RA-60-X150-Y150-Z100
XYZ-RA-60-X150-Y150-Z100

Stroke 150 x 150 x 100 mm

Load 5 kg

XYZ-RA-860-X600-Y400-Z150
XYZ-RA-860-X600-Y400-Z150
RA-860-X600-Y400-Z150

Stroke 600 x 400 x 150 mm

Load 12 kg

XYZ-RA-BSMA-140H-300x200-LY-110-50
XYZ-RA-BSMA-140H-300x200-LY-110-50
XYZ-RA-140H-300x200x50

Stroke 300 x 200 x 50 mm

Load 5 kg

XYZ-RA-BSMA-140H-200x100-LY-110-50
XYZ-RA-BSMA-140H-200x100-LY-110-50
XYZ-RA-140H-200x100x50

Stroke 200 x 100 x 50 mm

Load 5 kg

XY-BSMAE-F40X
XY-BSMAE-F40X
XY-BSMAE-F40X

XY stroke
100x100/200x200/300x300
Stepper/Servo/Smart motor

Load 5 Kg



XYZ-BSMAE-F40X
XYZ-BSMAE-F40X
XYZ-BSMAE-F40X

XYZ stroke
100x100x100/200x200x200
Stepper/Servo/Smart motor

Load 3 Kg



XY-BSMAE-F80X-300x300
XY-BSMAE-F80X-300x300
XY-BSMAE-F80X-300x300

XY stroke
100..1500x100...300
Stepper/Servo/Smart motor

Load 5 Kg



XYZ-BSMAE-F80X-300x300x300
XYZ-BSMAE-F80X-300x300x300
XYZ-BSMAE-F80X-300x300x300

XYZ stroke
100...1500x100...300x100...300
Stepper/Servo/Smart motor

Load 10 Kg



XY-BSMAE-F80S-300x300
XY-BSMAE-F80S-300x300
XY-BSMAE-F80S-300x300

XY stroke
100...1500x100..300
Stepper/Servo/Smart motor

Load 5...20 Kg



Actuator



BSMAE-F80

XZ Stroke

mm

X 100...1500
Z 100...300

Screw lead

mm

5, 10

Motor mounts size



Nema17 (Nema23)

Motor type



Stepper (standard)

Servo/encoder

Load

kg

5

Repeatability

micron

30

Stage weight

kg

6

Speed

mm/sec

50 - 100 (stepper)

100 - 200 (servo)



Open loop Micro-stepping resolution = screw_lead/200/microsteps_per_step

where: motor has 200 full steps/rev;

driver micro-stepping resolution 64, 128, 256 micro-steps/step



Closed loop servo resolution = screw_lead/encoder_cpr/4

where: encoder_cpr is number of encoder counts per revolution;

4 is post-quad processing in the motion controller
