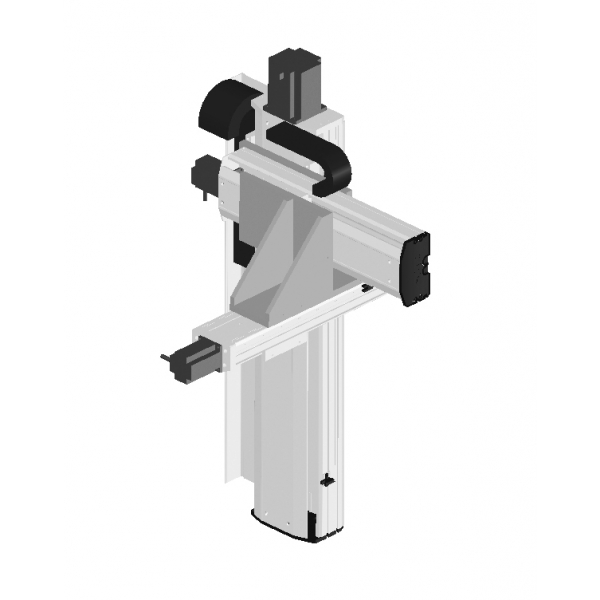

ZYX-VRA-Z580-Y200-X200


Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.

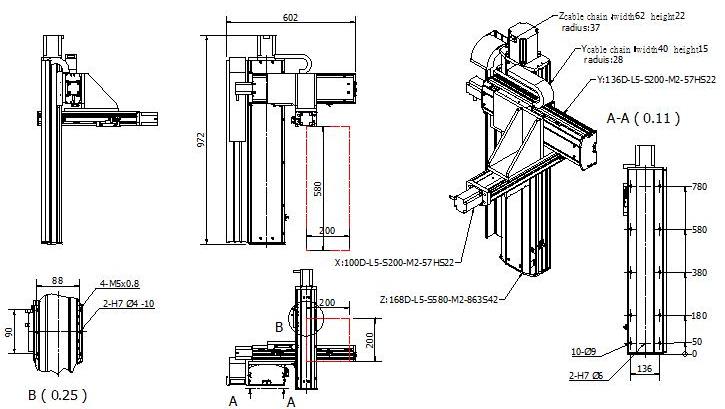

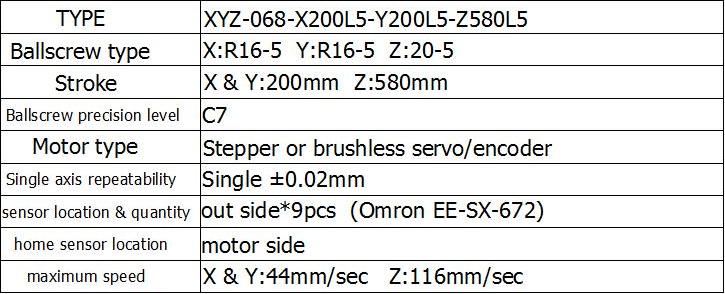

DescriptionSpecificationsDrawingsRelated

Cantilever style open access cartesian robots with all moving axes located above work area



-  Vertical robotic arm ZYX 580 x 200 x 200 mm travel

-  Ball screw mechanism

-  Stepper or servo motor driven



Options include:



- larger or smaller travel stroke

- precision grade

- ball screw lead

- motor type (stepper or servo/encoder)

- rotary table installation

Click Below Images To Enlarge
