Rotary table RTLA-180-300


Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.
DescriptionSpecificationsDrawingsRelated

RTLA Series motorized rotation stages provide precision angular positioning accuracy combined with

high load capacity. All RTLA stages are constructed of anodized aluminum, with rotation accuracy ensured by

the precision bearings and ground worm gear drive system. The single monolithic design offers improved stiffness

without compromising dynamic performance. RTLA stages are driven by the two phase stepper motors

with programmable micro-stepping resolutions to provide sub arc-sec angular positioning.



-  Large center aperture 180 mm

-  Worm gear drive

-  360 deg rotation

-  Stepper or servo motor driven



Click Below Images To Enlarge

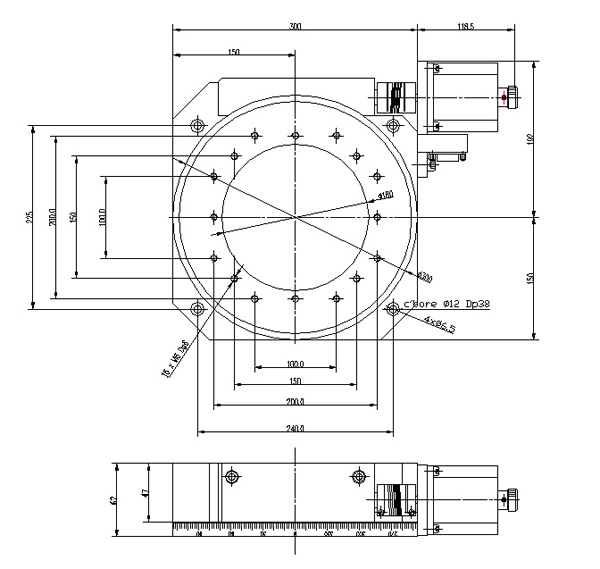

ROTARY TABLE  RTLA-180-300



Rotary Table RTLA-280-400
Rotary Table RTLA-280-400
RTLA-280-400



Diameter 400 mm

Aperture 280 mm

Height 62 mm

Rotary Table RTLA-380-560
Rotary Table RTLA-380-560
RTLA-380-560



Diameter 560 mm

Aperture 380 mm

Height 79 mm

System Performance

Unit

RTLA-180-300

RTLA-280-400

RTLA-380-560







Center aperture

mm

180

280

380

Worm gear ratio



288:1, 144:1

720:1, 360;1

510:1

Max speed

 rpm

5

2

1

Repeatability (unidirectional)

deg

0.01

0.01

0.02

Reversal value (hysteresis)

deg

0.02

0.02

0.03

Axial load

kg

60

80

100

Resolution (20 micro-steps/step)

arc-sec

1

0.5

0.6

Motor



Stepper 2 phase, 1.8 deg/step (NEMA23)

Tabletop axial run-out axial

micron

50

50

50

Stage  weight

Kg

12

16

30
