Linear actuator BSMA-136


Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.

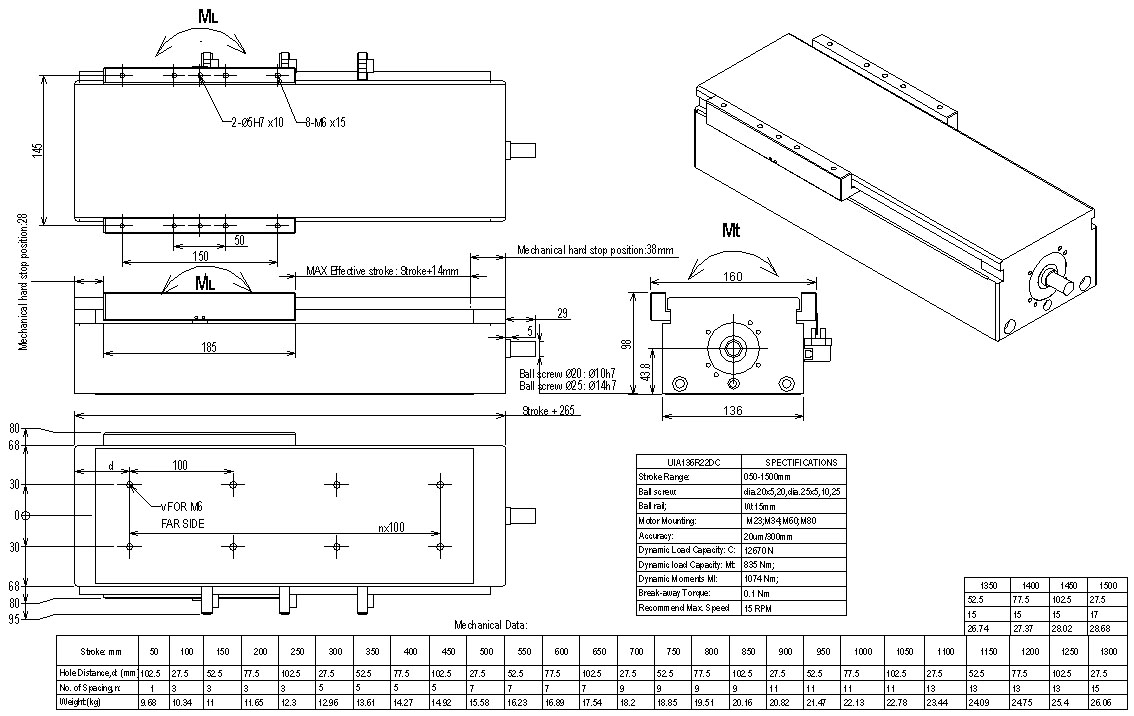

DescriptionSpecificationsDrawingsRelated

Automation Series linear motorized modules integrate recirculating ball bearing system with a precision ball screw in a compact frame that meets the speed and precision requirements of modern production machinery. The internal runner blocks and carriages are driven by preloaded zero-clearance ball screw/nut system. These units achieve travel speeds of up to 500 mm/sec and a positioning repeatability of 5 microns when driven with rotary stepper or brushless servo motors.


Click Below Images To Enlarge

Linear actuator BSMA-058CR
Linear actuator BSMA-058CR
BSMA-058-CR

Stroke 50...300 mm

Cross-section 58x36 mm (WxH)

Load 20 Kg

Repeatability 5 microns

Linear actuator BSMA-076CR
Linear actuator BSMA-076CR
BSMA-076CR

Stroke 50...600 mm

Cross-section 76x55 mm (WxH)

Load 40 Kg

Repeatability 5 microns

Linear actuator BSMA-098CR
Linear actuator BSMA-098CR
BSMA-098CR

Stroke 100...800 mm

Cross-section 98x62 mm (WxH)

Load 60 Kg

Repeatability 5 microns

Linear actuator BSMA-115CR
Linear actuator BSMA-115CR
BSMA-115CR

Stroke 100...1000 mm

Cross-section 115x75 mm (WxH)

Load 100 Kg

Repeatability 5 microns

Stroke

mm

100 - 2,000

Ball screw lead

mm

5, 10, 20, 25

Motor mounts size



Nema17, Nema23,  Nema34

M60, M80

Motor type



Stepper

Servo/encoder 4000ppr

Repeatability

micron

± 5

Accuracy

micron/mm

20 / 300

Load

kg

200

Speed

mm/sec

200 (stepper)

600 (servo)
