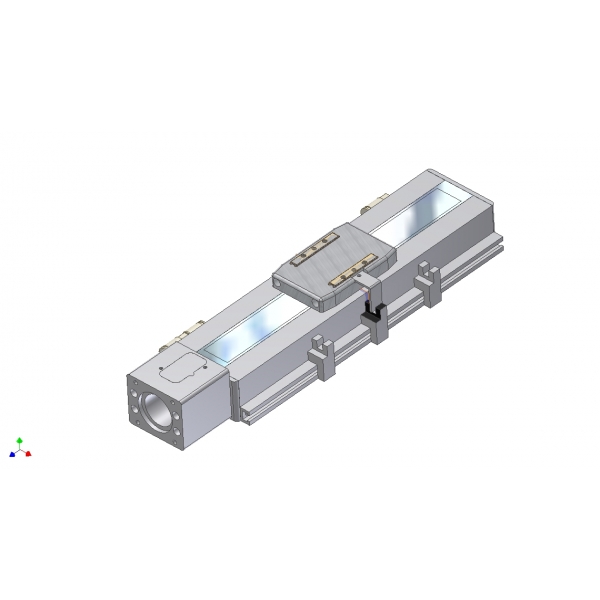

Linear actuator BSMA-058CR
Clean Room rating is achieved through a sealed structure and high durability stainless steel strip cover. The actuator body is electro-less plated for corrosion resistance. Actuator has vacuum suctions ports to exhaust any particles generated by the moving parts. These linear actuators confirm to 209E clean room classification and Class 10 VDI 2083-8 standard.
Stroke |
mm |
50 - 300 |
Ball screw lead |
mm |
2.5 |
Motor mounts size |
|
Nema17, Nema23 |
Motor type |
|
Stepper Servo/encoder 1000ppr |
Repeatability |
micron |
± 5 |
Accuracy |
micron/mm |
20 / 300 |
Load |
kg |
20 |
Speed |
mm/sec |
25 (stepper) 50 (servo) |
