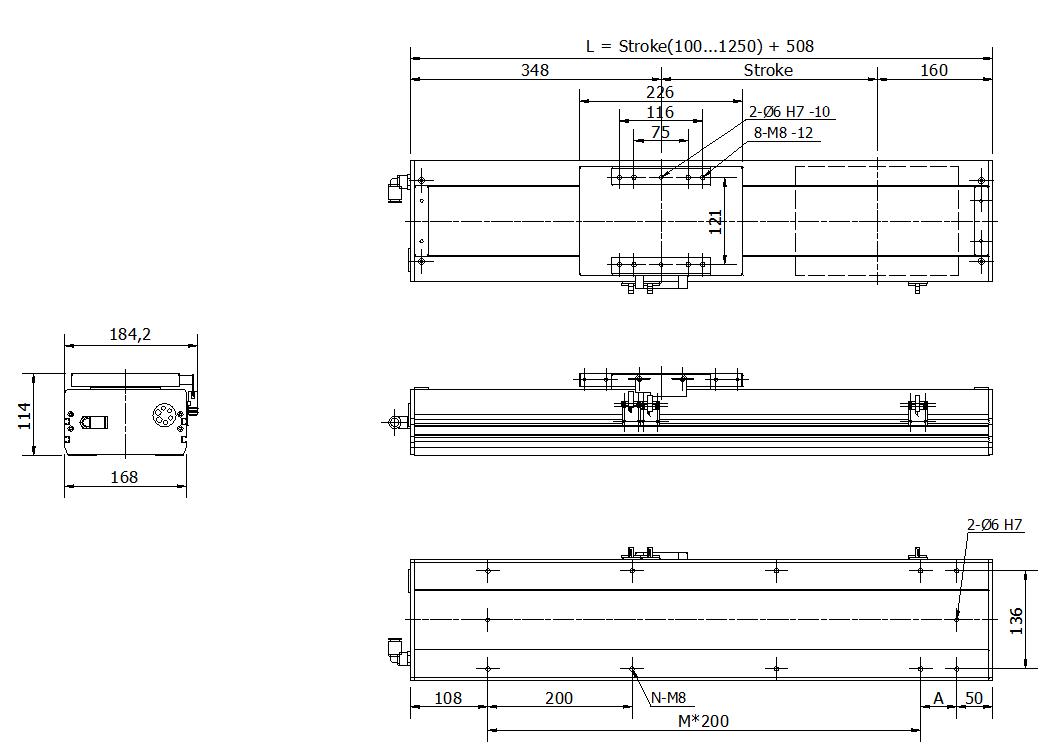

Linear Actuator BSMA-C168D


Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.
DescriptionSpecificationsDrawingsRelated

Clean Room rating is achieved through a sealed structure and high durability stainless steel strip cover. The actuator body is electro-less plated for corrosion resistance. Actuator has vacuum suctions ports to exhaust any particles generated by the moving parts. These linear actuators confirm to 209E clean room classification and Class 10 VDI 2083-8 standard.

Click Below Images To Enlarge

Linear actuator BSMA-058CR
Linear actuator BSMA-058CR
BSMA-058-CR

Stroke 50...300 mm

Cross-section 58x36 mm (WxH)

Load 20 Kg

Repeatability 5 microns

Linear actuator BSMA-076CR
Linear actuator BSMA-076CR
BSMA-076CR

Stroke 50...600 mm

Cross-section 76x55 mm (WxH)

Load 40 Kg

Repeatability 5 microns

Linear actuator BSMA-098CR
Linear actuator BSMA-098CR
BSMA-098CR

Stroke 100...800 mm

Cross-section 98x62 mm (WxH)

Load 60 Kg

Repeatability 5 microns

Linear actuator BSMA-115CR
Linear actuator BSMA-115CR
BSMA-115CR

Stroke 100...1000 mm

Cross-section 115x75 mm (WxH)

Load 100 Kg

Repeatability 5 microns

Linear Actuator BSMA-C136D
Linear Actuator BSMA-C136D
BSMA-C136D

Stroke 100...1,050 mm

Cross-section 136x78 mm (WxH)

Load 80 Kg

Repeatability 20 microns

Linear Actuator BSMA-C100D
Linear Actuator BSMA-C100D
BSMA-C100D

Stroke 100...1,050 mm

Cross-section 100x60 mm (WxH)

Load 50 Kg

Repeatability 20 microns



Configurations
