XY-BSMA-058U-120x120


Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.

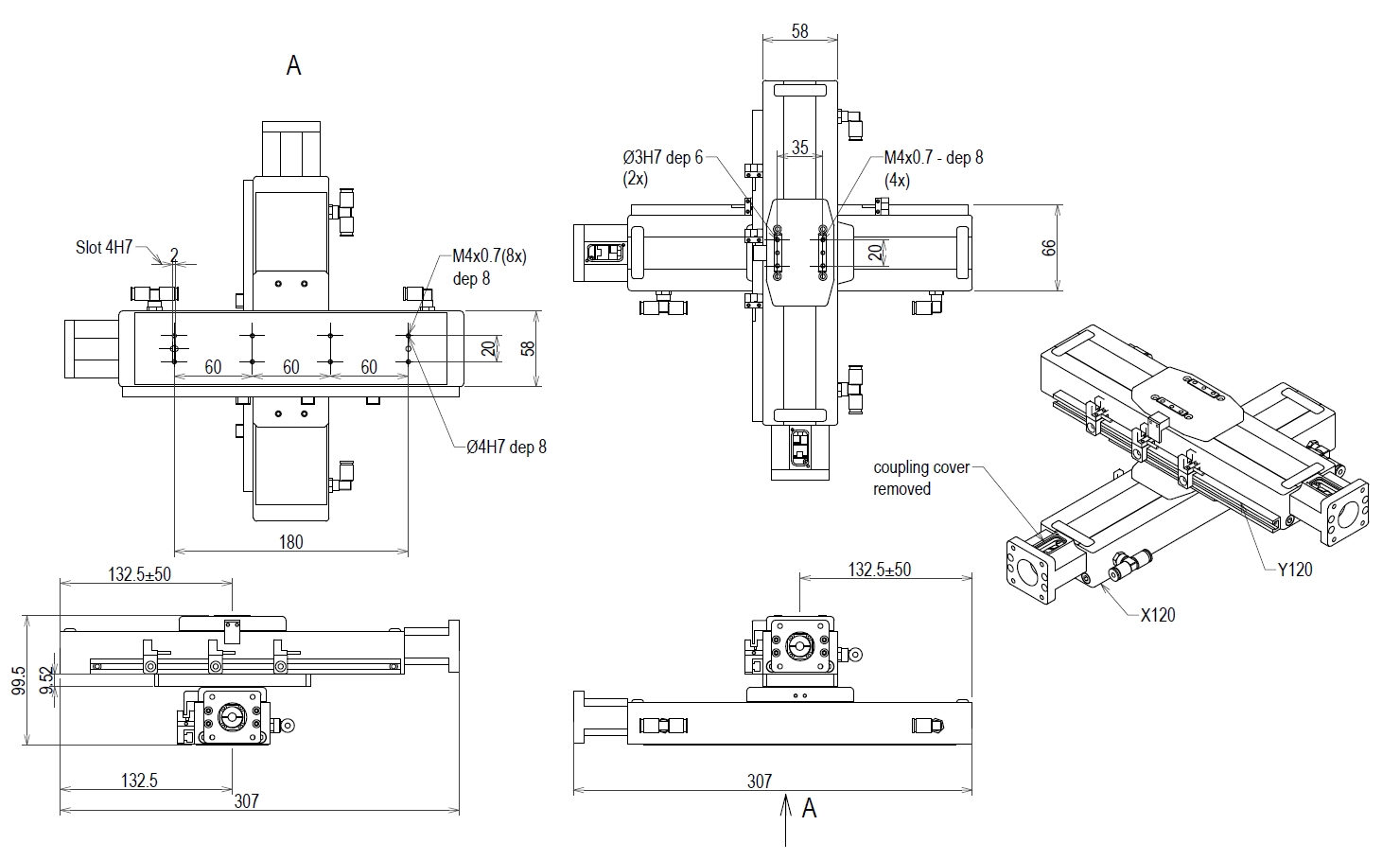

DescriptionSpecificationsDrawingsRelated

Low profile motorized actuators with precision ball screw provide exceptional accuracy, repeatability and ultra-fine positioning resolution capability to 1 micron in a very compact, low profile unit. They are ideal for space-critical applications such as optical, laser applications and vacuum operation.

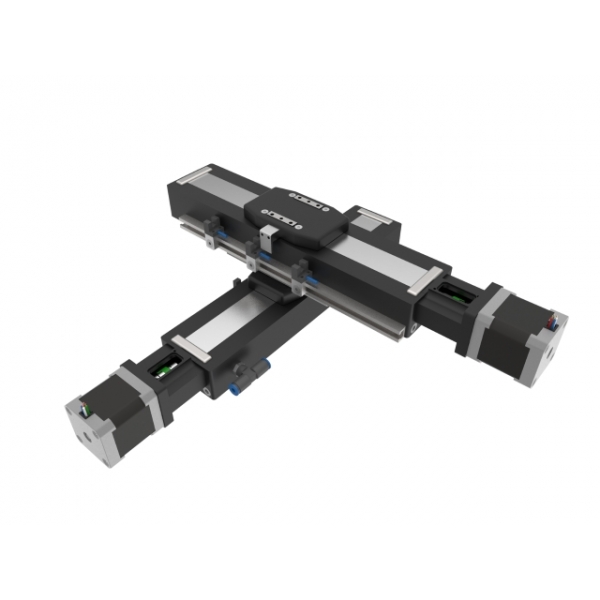

Click Below Images To Enlarge

XYZ-BSMA-058U-120x120-LSZ-8S
XYZ-BSMA-058U-120x120-LSZ-8S
XYZ-BSMA-058U-120x120-LSZ-8S

XYZ stroke 120x120x8 mm

Load vertical 5 Kg

XYZR-BSMA-058U-120x120-LSZ-8S-ACR-32UT
XYZR-BSMA-058U-120x120-LSZ-8S-ACR-32UT
XYZR-BSMA-058U-120x120-LSZ-8S-ACR32UT

XYZ stroke 120x120x8 mm
Rotation unlimited

Load vertical 3 Kg

XYR-BSMA-058U-120x120-ACR-32UT
XYR-BSMA-058U-120x120-ACR-32UT
XYR-BSMA-058U-120x120-ACR-32UT

XY Stroke 120x120 mm

Rotation unlimited

Load 10 Kg

XY stage

BSMA-058U

 Spec

Stroke (mm)

120 x 120

Repeatability (µm)

5

Resolution (µm)

0.25

Load capacity (kg)

10

Velocity (mm/sec)

180 (servo)

Mechanism,

screw lead (mm)

lead-screw

2.5

Motor

stepper servo
