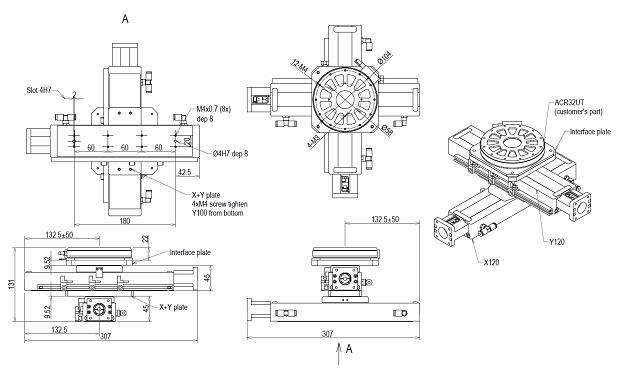

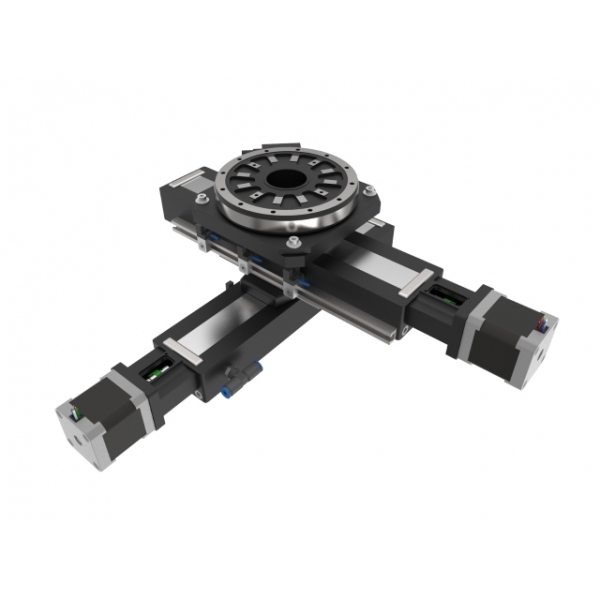

XYR-BSMA-058U-120x120-ACR-32UT
Combination of XY lead-screw driven BSMA XY stages with direct drive rotary table
- XY stroke 120x120 mm
- Unlimited rotation
 XYR-BSMA-LY-140H-200x200+RTLA-30-100 140H-200x200+RTLA-30-100 XY stroke 200x200 mm Rotation unlimited Load 10 Kg |
XYR-BSMA-LY-140H-100x100+RTLA-30-100 140H-100x100+RTLA-30-100 XY stroke 100x100 mm Rotation unlimited Load 10 Kg |
 XYR-BSMA-LY-140H-300x300+RTLA-30-100 140H-300x300+RTLA-30-100 XY stroke 300x300 mm Rotation unlimited Load 10 Kg |
 XYR-BSMA-LY-110H-30x30+RTLA-060 110H-30x30+RTLA-0-60 XY stroke 30x30 mm Rotation unlimited Load 3 Kg |
 XYR-BSMA-LY-110-50x50+RTLA-060 110-50x50+RTLA-0-60 XY stroke 50x50 mm Rotation unlimited Load 5 Kg |
 XYR-BSMA-LY-110-75x75+RTLA-060 110-75x75+RTLA-0-6 XY stroke 75x75 mm Rotation unlimited Load 5 Kg |
XYR-BSMA-LY-110-75x75+RTLA-30-100 110-75x75+RTLA-30-100 XY stroke 75x75 mm Rotation unlimited Load 6 Kg |
 XYR-GA-BSMA-LY-140H-300x300-RTLA-30-100 XYRGA-300x300-RTLA30-100 XY stroke 300x300 mm Rotation unlimited Load 10 Kg |
| XYR-GA-BSMA-LY-140H-300x300-RTLA-60-150 XYRGA-300x300-RTLA60-150 XY stroke 300x300 mm Rotation unlimited Load 20 Kg |
|
XY stage BSMA-058U |
Spec |
Rotary Stage ACR-32UT |
Spec |
|
Stroke (mm) |
120 x 120 |
Rotation |
unlimited |
|
Repeatability (µm) |
5 |
Repeatability (arc-sec) |
1 |
|
Resolution (µm) |
0.25 |
Resolution (arc-sec) |
0.9 - 3.6 |
|
Load capacity (kg) |
10 |
Torque (Nm) |
2.2 |
|
Velocity (mm/sec) |
180 (servo) |
Angular velocity (mm/sec) |
1400 |
|
Mechanism, screw lead (mm) |
lead-screw 2.5 |
Mechanism |
direct drive |
|
Motor |
stepper servo |
Motor |
Three phase brushless |
