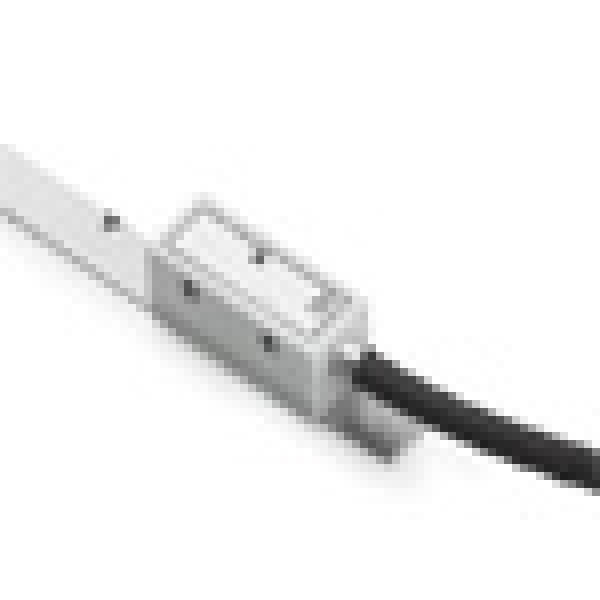

Linear encoders (open tape systems)


Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.
DescriptionSpecificationsDrawingsRelated

- Incremental quadrature outputs

- Digital differential outputs 5VTTL

- Sin/cos 1Vpp analog outputs

- Open measuring system

- Small read head

- Contact-less design

- High measuring speed

- Superior accuracy

- Built-in signal interpolation



Open linear encoder measuring system based on the purely inductive operating principal consists of:

 - read head with sensors and integrated signal processing ASIC

 - stainless steel tape with grating scale



This linear encoder system features:

 - ease of installation without special tools

 - immunity to environmental influences

 - immunity to electrical and electromagnetic interferences

There are no drawings for this product.
There are no related products for this product.

resolution

micron

25, 10,  5,  1,  0.5,  0.25

accuracy

micron/m

5

measuring length

m

30

supply voltage

VDC

5 ± 10%

measuring speed

m/sec

20

gap to scale

mm

0.2 ± 0.15

reference mark



any position with resolution 1 mm

distance coded marks



available

limit sensors



two

operating temperature

deg C

0 to 50
