Gantry XY-GA-BSMA-140H-300x300-HORIZONTAL
When done selecting products to quote, click “Request Quote/Information” button.
This will take you to check-out page to send quote request to IntelLiDrives.

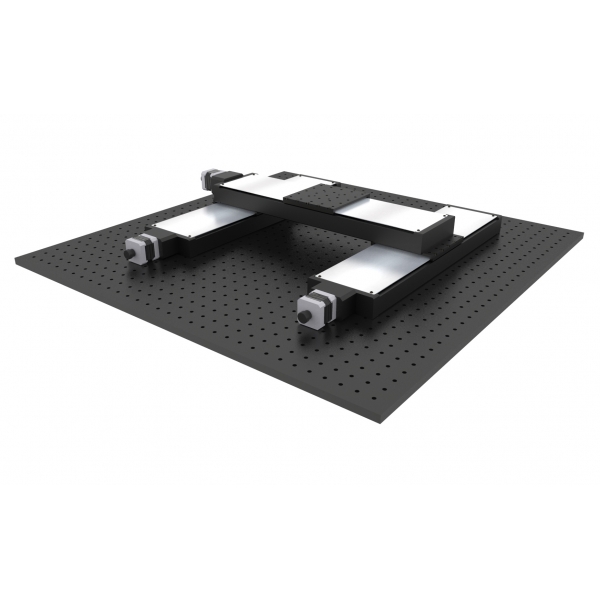

Gantry style cartesian robots with large working areas. All moving axes located above work area.
- XY Gantry 300 x 300 mm travel
- Ball screw mechanism
- Stepper or servo motor driven
Options include:
- larger or smaller travel stroke
- precision grade
- ball screw lead
- motor type (stepper or servo/encoder)
- rotary table installation
Click Below Images To Enlarge
Actuator | |
Stroke X x Y |
300x300 mm |
Ball screw lead |
4 mm |
Motor mounts |
Nema17 |
Motor type |
stepper servo with encoder (4000cpr) |
Repeatability |
± 5 microns |
Accuracy |
10 microns |
Load capacity |
15 kg |
Max screw speed |
10 RPS (stepper) 25 RPS (servo/encoder) |
RPS (rev/sec)
Speed in mm/sec = RPS x screw_lead
