Lift LSMA-200+XY LSMA167-25x25


Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.
DescriptionSpecificationsDrawingsRelated

- Lift stroke 100 mm

- XY travel 25 x 25 mm

- Rotary stage optional

- Integrated solution

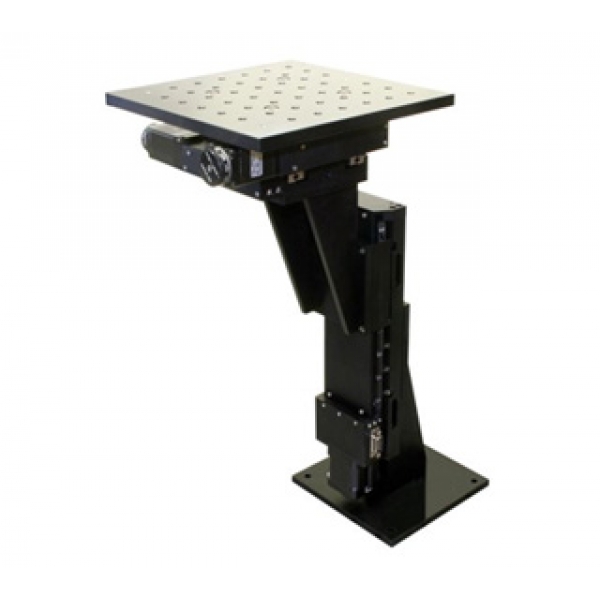

This system is a combination of linear actuator LSMA-200, vertical stroke 100 mm, and XY table LSMA-167, travel 25 x 25 mm.

Different stages combination and travel strokes are available upon request.

Rotary stage RTHM-190 can be installed, as an option.

Click Below Images To Enlarge



There are no related products for this product.

Lift stage

LSMA-200

 Spec

XY stage

XY-LSMA-167-25x25

 Spec

Rotary Stage (Optional)

RTHM-190

 Spec

Stroke (mm)

100 ... 200

XY stroke (mm)

25 x 25

Rotation

unlimited

Repeatability (µm)

1

Repeatability (µm)

1

Repeatability (arc-sec)

20

Resolution (µm)

0.25

Resolution (arc-sec)

0.25

Resolution (arc-sec)

2

Load capacity (kg)

4

Lift translation (mm/rev)

0.25 lead screw

1 ball screw

Torque (Nm)

1

Velocity (mm/sec)

20 (servo)

Max velocity (mm/sec)

20 (servo)

Angular velocity (rpm)

8

Mechanism,

screw lead (mm)

lead-screw

0.5

Mechanism,

screw lead (mm)

lead screw 0.25

ball screw 1

Mechanism,

ratio

worm gear

180:1

Motor

stepper servo

Motor

stepper

Motor

stepper

servo
