Linear actuator MLA-CMA28
M-Thrust series precision actuators offer backlash-free motion of the shaft up to 25 mm travel range. Precision motion is accomplished by a miniature DC servo with rotary encoder or stepper motor providing 0.1 micron resolution. Precision fine pitch screw mechanism converts rotation of the motor shaft into linear travel while avoiding any backlash inside the system. This provides very responsive motion with exceptionally load capacity up to 70 N and low friction. M-Thrust actuators are offered in multiple travel ranges with limit switches at both ends of the travel.
- Stepper or DC motor driven
- Motorized screws design
- Small profile
- No backlash
- Built-in sensors

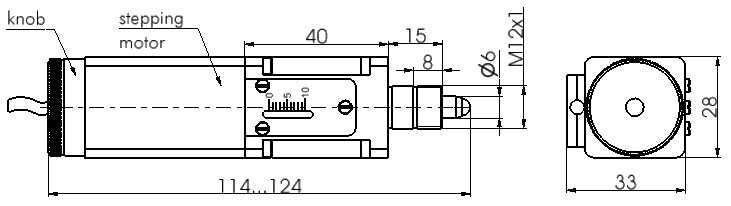

LINEAR ACTUATOR MLA-CMA28 (stroke 10 mm)
Parameter | Unit |
MLA- |
|||||||
MS00 | CMA06 | CMA-20 | CMA-28 | CMA-16DC | |||||
Stroke |
mm |
10 |
25 |
13 |
25 |
8 |
10 |
10 |
25 |
Screw lead |
mm | 0.25 | |||||||
Repeatability |
1 | 2 | |||||||
Accuracy |
micron | 3 | |||||||
Resolution | micron | note 1, 2 | |||||||
Motor |
|
Stepper Nema11 |
Stepper Nema17 |
Stepper Nema8 |
Stepper Nema8
|
Stepper Nema11 |
DC Encoder option |
||
Speed |
mm/sec | 4 | 5 | 3 | 3 | 3 | 4 (note 4) | 8 | |
Force |
N | 60 | 80 | 30 (Note 3) | 70 | 30 | |||
Limit switches |
2 | ||||||||
Stage weight |
kg | 0.45 | 0.55 | 0.12 | 0.15 | 0.1 | 0.15 | 0.12 | 0.15 |
Note 1 |
Open loop Micro-stepping resolution = screw_lead/200/microsteps_per_step where: motor has 200 full steps/rev driver micro-stepping resolution 64, 128, 256 micro-steps/step |
||||||||
Note 2 |
Closed loop servo resolution = screw_lead/encoder_cpr/4 where: encoder_cpr is number of encoder counts per revolution 4 is post-quad processing in the motion controller |
||||||||
Note 3 |
At speed < 1 mm/sec |
||||||||
Note 4 |
At speed < 3 mm/sec |
