Linear motor actuator IRC-20CRX

high frequency linear motor
Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.
DescriptionSpecificationsDrawingsRelated

Linear actuators with direct drive linear brushless servo motors offer high rigidity and high acceleration capabilities, The motor has very low electrical time constant and zero cogging and hysteresis. These actuators developed for the high-frequency motion of short strokes.


- Very compact

- Zero cogging, zero backlash, zero hysteresis

- Low moving mass
- Integrated linear encoder
- XY table option



Click Below Images To Enlarge

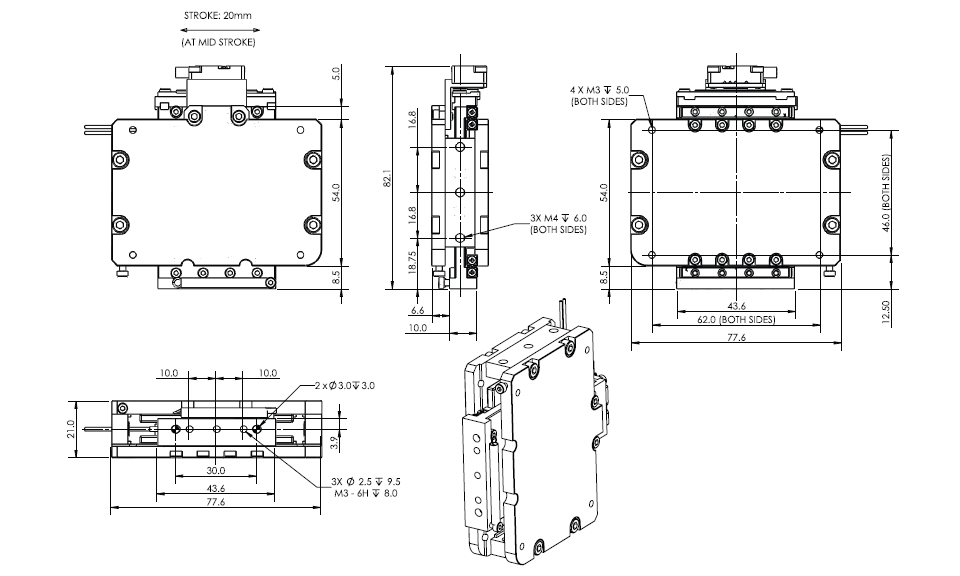

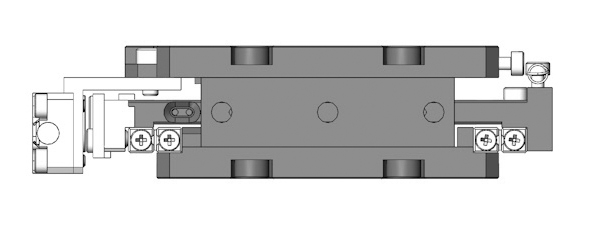

Top view                                                                                                               Side view

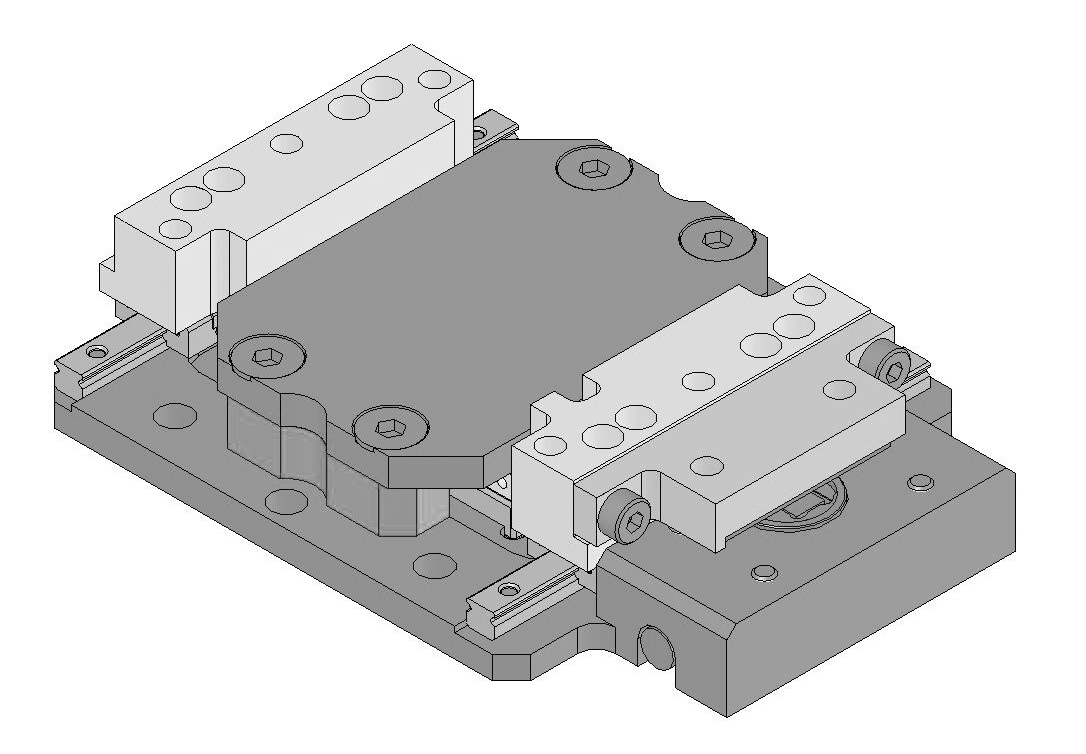

Linear table with ICR actuators                                                ​

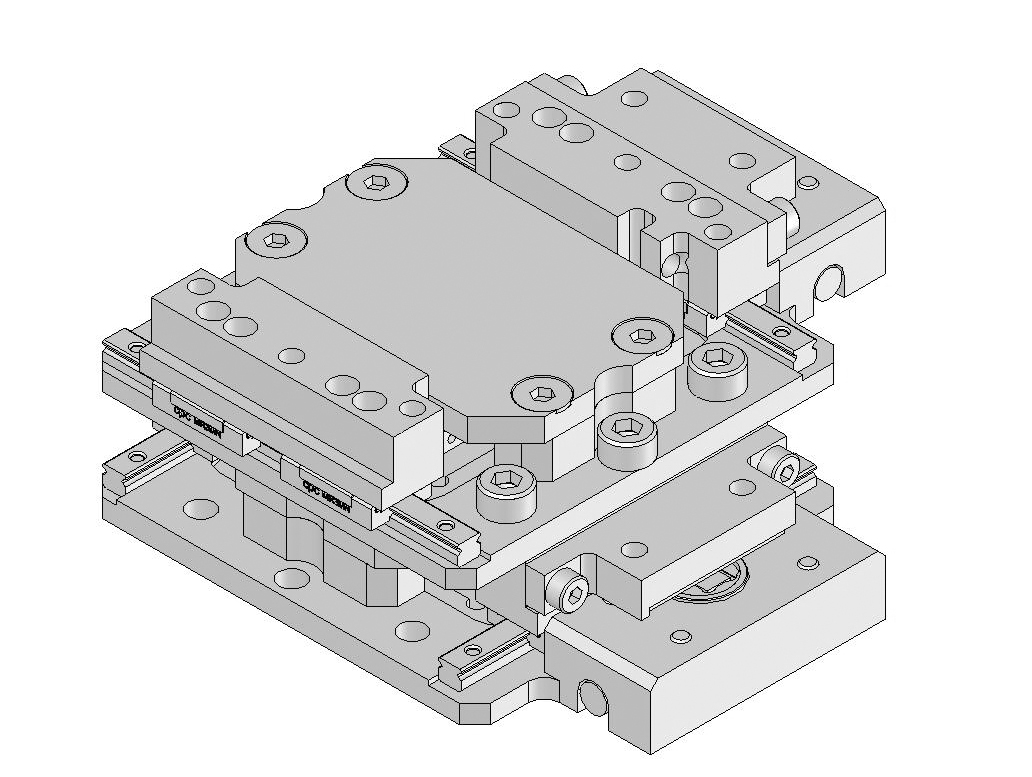

XY table with ICR actuators






Linear motor actuator IRC-20CRX
Linear motor actuator IRC-20CRX
IRC-20CRX

Stroke 20 mm

Resolution 0.1 micron
Low profile 21 mm

Force 30 N

Linear motor actuator IRC-30CRX
Linear motor actuator IRC-30CRX
IRC-20CRX

Stroke 30 mm

Resolution 0.1 micron
Low profile 21 mm

Force 80 N

Parameter

Unit

IRC20CRX







Peak force

N

30

Continuous force

N

10

Peak current

Amp

4

Continuous current

Amp

1.2

Max speed

m/sec

1.5

Peak acceleration

m/sec

100

Back EMF (mid-stroke) V/m/s

7.5

Force constant (mid-stroke) N/A

7.5

Coil resistance Ohm

5.5

Coil inductance mH

1

Max voltage

V

48

Cogging force

N

0

Resolution

µm

0.1 ... 5

Repeatability

µm

0.1 ... 5

Max payload weight (bearing capacity)

Kg

20

Travel stroke

mm

20

Moving weight

Kg

0.07

Carriage weight

Kg

0.550
