Rotary table ACR-335UT (Ultrathin)


Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.

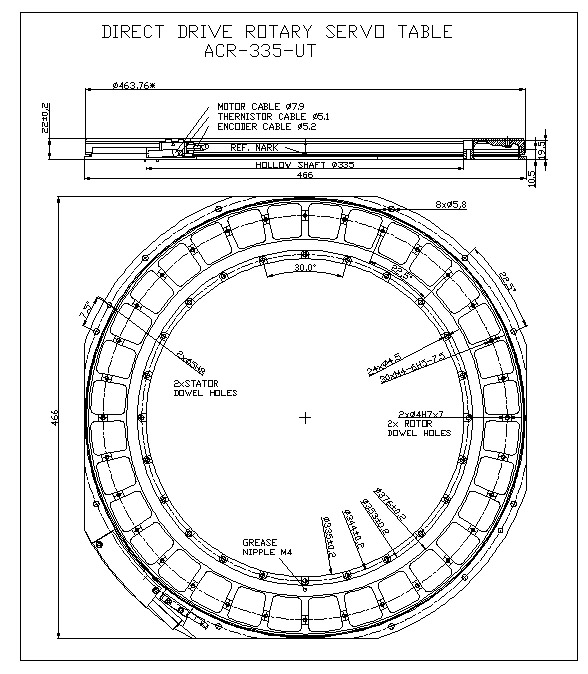

DescriptionSpecificationsDrawingsRelated



AccuRing rotary tables provide superior angular positioning and are designed to eliminate backlash, friction and wear problems associated with worm, gear and belt drives. Low maintenance and high throughput characteristics of the AccuRing stage yields the lowest total cost of ownership.



Compact package and Superior design of the AccuRing rotary stages was optimized to minimize stage height. The low profile of the stage reduces total system working height. Angular contact bearings are used to maximize performance with respect to wobble, moment stiffness and friction. AccuRing stage has large clear center aperture that can be used for air or wire line feed-through or beam delivery.



AccuRing utilizes direct drive three phase planar brushless motor technology. There are no brushes to replace and no gear trains or belts to maintain. Coreless magnetic design assures smooth rotation and dynamic performance.



Accurate Positioning is assured with contact-less encoder. The motor and rotary encoders are directly coupled to eliminate coupling backlash. The low inertia and zero backlash make AccuRing the ideal solution for applications requiring frequent directional changes.





Semiconductor assembly

    Electronics assembly

Precision machine tools

    Robotic handlers

Wafer processing

    Automation

Click Below Images To Enlarge

Rotary table PSR-300
Rotary table PSR-300
PSR-300



Diameter 290 mm

Aperture 115 mm

Height 42 mm

Rotary table PSR-180UT (Ultrathin)
Rotary table PSR-180UT (Ultrathin)
PSR-180UT

Diameter 180 mm

Aperture 55 mm

Height 22 mm

Rotary table PSR-200
Rotary table PSR-200
PSR-200



Diameter 200 mm

Aperture 40 mm

Height 42 mm

Rotary table PSR-150
Rotary table PSR-150
PSR-150



Diameter 152 mm

Aperture 15 mm

Height 42 mm

Rotary table ACR-160UT (Ultrathin)
Rotary table ACR-160UT (Ultrathin)
ACR-160UT

Diameter 287 mm

Aperture 158 mm

Height 22 mm

Rotary table ACR-260UT (Ultrathin)
Rotary table ACR-260UT (Ultrathin)
ACR-260UT

Diameter 387 mm

Aperture 259 mm

Height 22 mm

Rotary table PSR-200MHS
Rotary table PSR-200MHS
PSR-200MHS



Diameter 200 mm

Aperture 55 mm

Height 42 mm

Rotary table PSR-300MHS
Rotary table PSR-300MHS
PSR-300MHS



Diameter 290 mm

Aperture 145 mm

Height 42 mm


System Performance

Unit

ACR-335UT

Center aperture

mm

335

Outside diameter

mm

463

Stage height

mm

22

Peak Torque

Tp

 (Nm)

100

Continuous torque

air cooling, coil 120°C

Tc120

(Nm)

25

Peak current at Tp

Amp p rrms

15

Continuous current at Tc

Amp c rrms

4

Recommended voltage (note 1)

Uvdc

Uvac

310

220

Max speed at Tp and Us

(note 2)

RPM

-

Max speed at Tc and Us

(note 2)

RPM

120

Positioning resolution

(note 3)

counts/rev



5,820,000 (standard)

11,640,000

(optional)

Positioning resolution

(arc-sec)

0.22

Accuracy

Arc-sec

<10

Repeatability Arc-sec <1

Run-out axial/radial

micron

<10

Rotor Inertia kg x m2 0.2

Stage weight

M (Kg)

10

Axial load

M (Kg)

50



Note 1: Rotary table can operate at lower voltages with lower speeds

Note 2: Speed values shown at rated torque

Note 3: Max speed may be limited by controller's encoder frequency input.

            Sin/cos 1 Vpp and other encoder resolutions available.

            Contact the factory.
