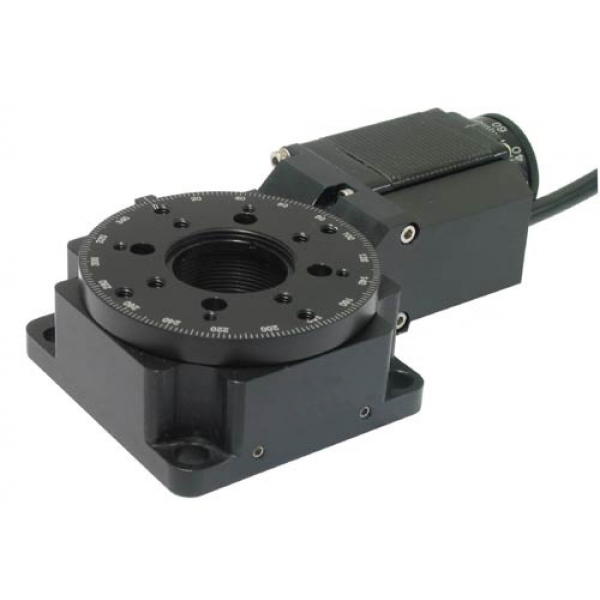

Rotary stage RTHM-151

Miniature rotary stage
Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.

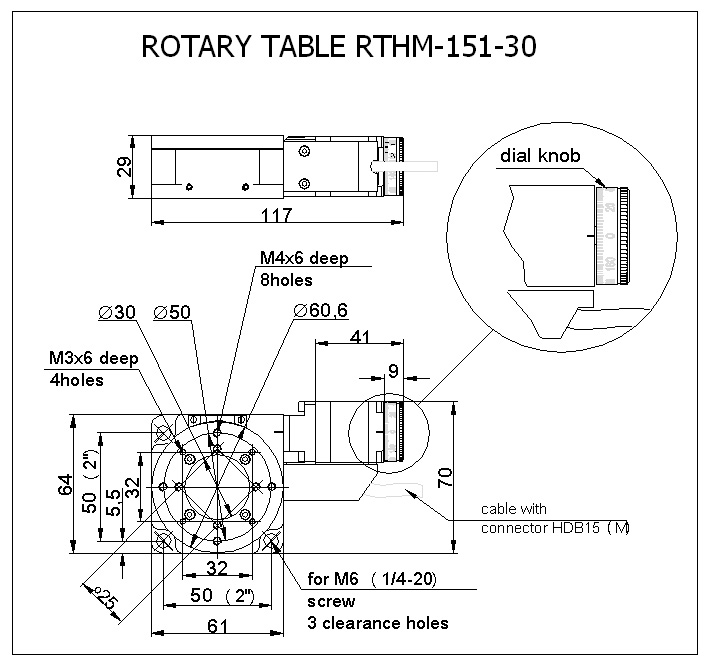

DescriptionSpecificationsDrawingsRelated

The RTHM series rotary stages provide arc-second resolution when driven from a micro-stepping or a brushless servo motor controller. The low profile design is made possible by the use of compact precision bearings. The rotating carriage of the stage provides continuous rotation of load up to 10 kg and has large clear aperture to allow the passage of the optical path or cables directly through the stage. The main body of the stages is made from lightweight anodized aluminum and can attach directly to an optical table or moving linear or XY actuators and can be mounted at any orientation. A precision worm gear assembly is used to transfer the rotary motion of the stepper motor into rotary motion of the carriage. The small size allows use in confined spaces, such as laser cavities, disk texturing machines, manufacturing areas for fiber optical components or semiconductor manufacturing.

Vacuum compatible rotary stages RTHM-174 and RTHM-190 are avaibale to operate at 10-6 Torr vacuum.



image_RTHM174_vacuum       image_RTHM190_vacuum

Click Below Images To Enlarge

Rotary Table RTLA-30-100
Rotary Table RTLA-30-100
RTLA-30-100



Diameter 100 mm

Height 45 mm

Load 5 Kg

Rotary Table RTLA-60-200H
Rotary Table RTLA-60-200H
RTLA-60-200H

Diameter 200 mm

Height 83 mm

Load 50 Kg

Rotary Table RTLA-90-200M
Rotary Table RTLA-90-200M
RTLA-90-200M

Diameter 200 mm

Height 60 mm

Load 30 Kg

Rotary stage RTHM-174
Rotary stage RTHM-174
RTHM-174



Diameter 40 mm

Aperture 11 mm

Height 25 mm

Rotary stage RTHM-50-100J
Rotary stage RTHM-50-100J
RTHM-50-100J



Diameter 100 mm

Aperture 50 mm

Height 35 mm

Parameter

Unit

RTHM-

151

RTHM-

174

RTHM-190







Rotation range

deg

Continuous 360◦

Resolution

(Note1)

Arc-sec

Deg

36 to 0.1

0.01 to  0.00004

Max speed

(Note 2)

RPM

10 RPM

Repeatability (unidirectional)

Arc-sec

15

Eccentricity

micron

5 microns (-P grade)

10 microns (-H grade)

Load capacity

axial / radial

Kg



6/2



3/1



10/2

Stage weight

Kg

0.6

0.5

0.65

Motor type



Stepper motor (standard)

Servo motor (optional)

Encoder

(Note 3)

Counts/rev

128  to 5,000

Drive mechanism



Ground worm gear

Gear ratio motor/stage



180:1

120:1

180:1

Off-center moment

Nm

0.5

1

Home sensor



Cherry DH3C-B1LA

Construction



black anodized aluminum

Note 1

Programmable in the drive

Note 2

Driver voltage and resolution dependent

Note 3

For NEMA 17 motors
