Rotary Table RTLA-60-150LP


Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.

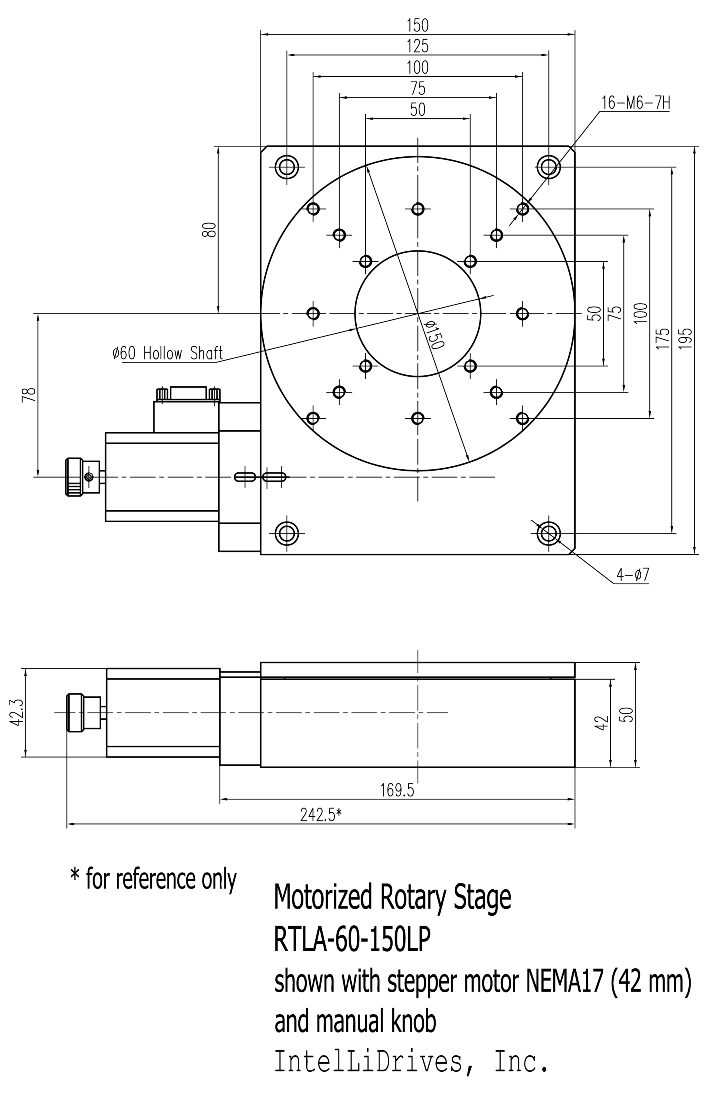

DescriptionSpecificationsDrawingsRelated

RTLA Automation Series of Rotary tables use a worm gear drive design with a heavy duty central rotating ball bearing.

The tables accept NEMA size 17 stepper motors. All tables have a clear aperture or clear and 360° visial scale.



-  Load capacity 25 kg

-  Stepper motor driven

-  60 mm center aperture

-  Precision bearing system





Click Below Images To Enlarge

Rotary Table RTLA-30-100
Rotary Table RTLA-30-100
RTLA-30-100



Diameter 100 mm

Height 45 mm

Load 5 Kg

Rotary Table RTLA-60-200H
Rotary Table RTLA-60-200H
RTLA-60-200H

Diameter 200 mm

Height 83 mm

Load 50 Kg

Rotary Table RTLA-90-200M
Rotary Table RTLA-90-200M
RTLA-90-200M

Diameter 200 mm

Height 60 mm

Load 30 Kg

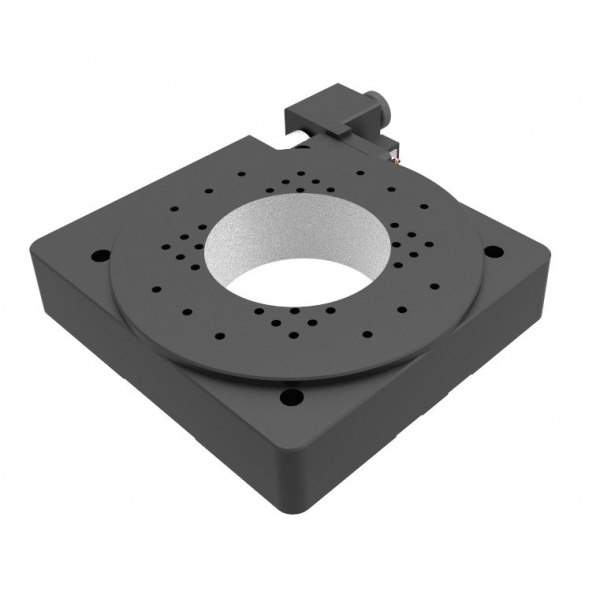

Rotary Table RTLA-100-200LP
Rotary Table RTLA-100-200LP
RTLA-100-200LP

Diameter 200 mm

Height 50 mm

Load 15 Kg

Parameter

Unit

RTLA-60-150LP

Worm gear ratio



70:1

Max speed

rpm

10

Load axial

Kg

10

Load radial

Kg

5

Moment Load

Nm

3

Table top axial run out

microns

30

Repeatability (unidirectional)

arc-sec

36

Table weight

Kg

3.6

Clear Aperture

mm

60

Diameter

mm

150
