IntelLiGent Actuators

intelligent linear actuators
Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.
DescriptionSpecificationsDrawingsRelated

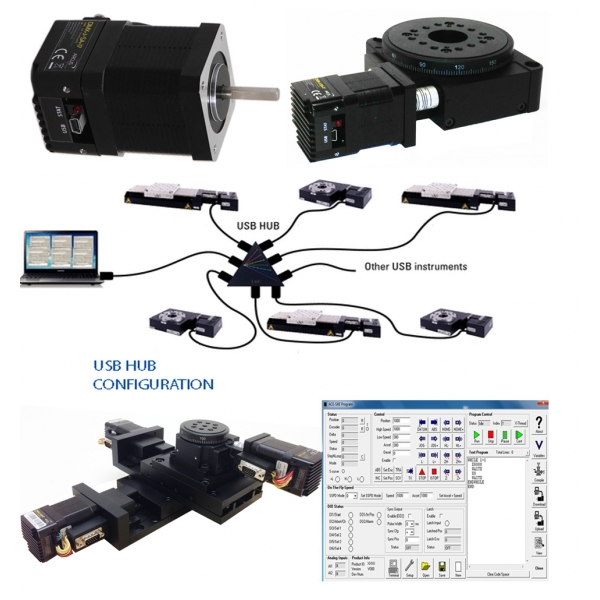

INTELLIGENT ACTUATORS are highly programmable, integrated actuators with a motor, encoder, amplifier, controller, USB communication, and IOs.

These stages come fully pre-configured and enable true out-of-the box controls. They are perfect for the confines and requirements of the laboratory and are also applicable for use in manufacturing environments. Rotary stages incorporate precision worm-gear drive mechanism and bearing components for accurate positioning performance over the lifetime of the product. Linear actuators are fitted with ball screws and linear ball bearings for accuracy and repeatability in precision applications.

INTELLIGENT ACTUATORS are member of the Compact Positioning Stages family of linear, rotary, XY and vertical lift stages. Two or more stages can easily be mounted together in numerous combinations using adapter plates and brackets.

No need to daisy chain multiple axes, just plug USB cables into USB hub and control unlimited number of axes with a GUI.

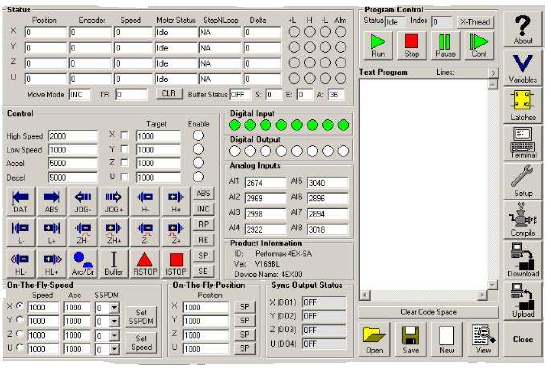

INTELLIGENT ACTUATORS can easily "talk over" USB 2.0, Ethenet, RS232, RS485 interfaces and come with powerful yet easy to use software packages. for system start-up and integration, like communication drivers, linkable DLL libraries, National Instruments Labview drivers and VI examples, GUI and easy-to-use DXF conversion software.





There are no drawings for this product.
There are no related products for this product.

INTELLIGENT ACTUATORS are highly programmable, integrated actuators with a motor, encoder, amplifier, controller, USB communication, and IOs.

These stages come fully pre-configured and enable true out-of-the box controls. They are perfect for the confines and requirements of the laboratory and are also applicable for use in manufacturing environments. Rotary stages incorporate precision worm-gear drive mechanism and bearing components for accurate positioning performance over the lifetime of the product. Linear actuators are fitted with ball screws and linear ball bearings for accuracy and repeatability in precision applications.

INTELLIGENT ACTUATORS are member of the Compact Positioning Stages family of linear, rotary, XY and vertical lift stages. Two or more stages can easily be mounted together in numerous combinations using adapter plates and brackets.

No need to daisy chain multiple axes, just plug USB cables into USB hub and control unlimited number of axes with a GUI.

INTELLIGENT ACTUATORS can easily "talk over" USB 2.0, Ethenet, RS232, RS485 interfaces and come with powerful yet easy to use software packages. for system start-up and integration, like communication drivers, linkable DLL libraries, National Instruments Labview drivers and VI examples, GUI and easy-to-use DXF conversion software.
