XY-LSS-LMX-200x200

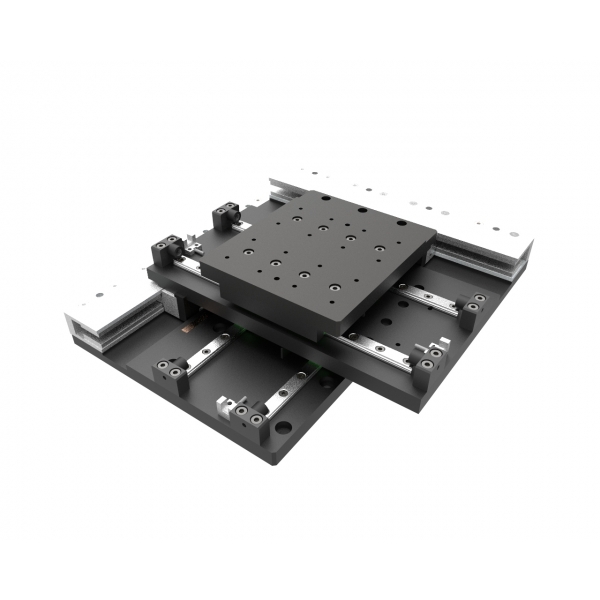

XY table with linear motors
Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.

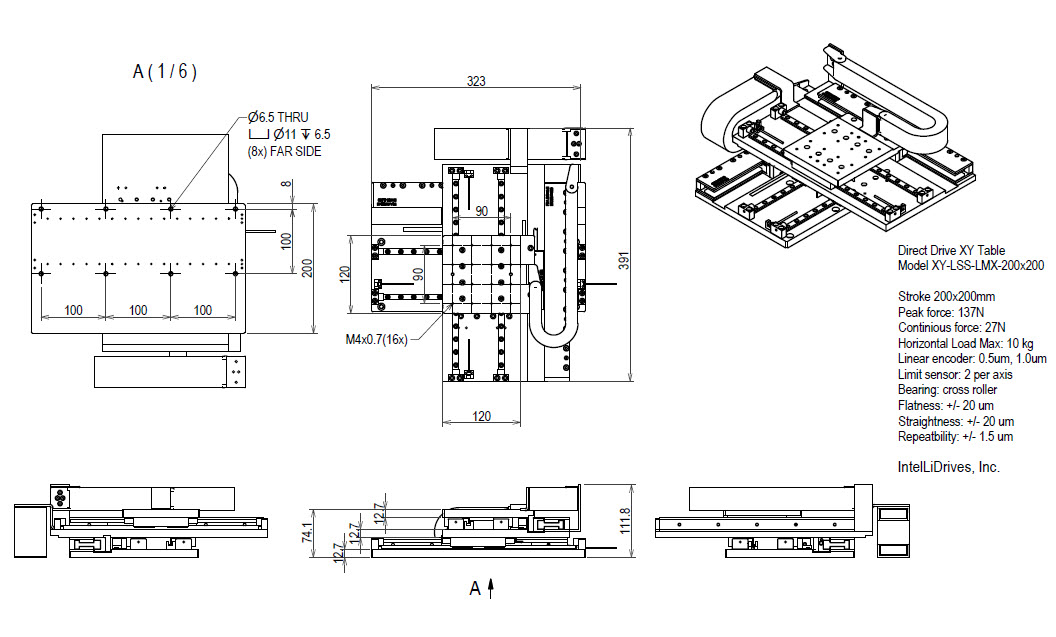

DescriptionSpecificationsDrawingsRelated

Low profile, long stroke XY stages with linear motors and micron-grade linear encoders

Click Below Images To Enlarge

XY-65-10x10AUT
XY-65-10x10AUT
XY-65-10x10AUT

Linear motors
Stroke 10x10 mm

Resolution 0.5 µm

Stage 65x65 mm

Load 2.5 Kg

XY-LSS-LMX-25x25
XY-LSS-LMX-25x25
XY-LSS-LMX-25x25

Linear motors
Stroke 25x25 mm

Resolution 0.5 µm

Load 5 Kg

XY-LSS-LMX-100x100
XY-LSS-LMX-100x100
XY-LSS-LMX-100x100

Linear motors
Stroke 100x100 mm

Resolution 0.5 µm

Load 15 Kg

XY-LSS-LMX-50x50
XY-LSS-LMX-50x50
XY-LSS-LMX-50x50

Linear motors
Stroke 50x50 mm

Resolution 0.5 µm

Load 10 Kg

XY stage

XY-LSS-LMX-200x200

 Spec

Stroke (mm)

200x200

Repeatability (µm)

0.5; 1.0

Resolution (µm)

0.5; 1

Load capacity (kg)

10

Velocity (mm/sec)

500

Drive mechanism

direct drive

Motor

linear, core-less, servo

Size (mm) 300x400
Height (mm) 75
