XY-OF-100x100LY
When done selecting products to quote, click “Request Quote/Information” button.
This will take you to check-out page to send quote request to IntelLiDrives.

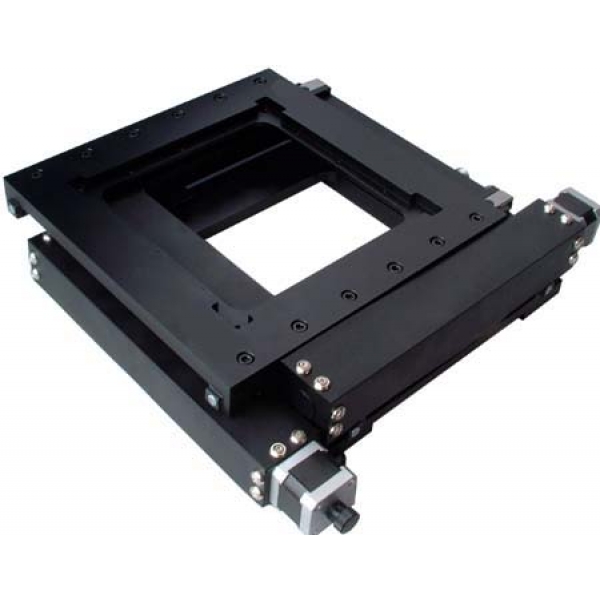

Open-frame XY stages designed with a low profile for a wide range of automated accurate positioning in microscope-based applications. The drive mechanism located on the side of the unit and offers a clear unobstruced two axes aperture to enable light or objects to pass through the center of travel.
Click Below Images To Enlarge
| Model | Unit |
XY-OF-100x100LY |
| Stroke XY | mm | 100x100 |
| Screw lead | mm |
4 |
| Aperture | mm | 188x188 |
| Table top | mm | 300x300 |
| Height | mm | 80 |
| Backlash | micron | <10 |
| Resolution | micron | 0.5 (with encoder) |
| Motor 23 |
stepper, stepper/encoder, servo/encoder |
|
| Repeatability | micron | <10 |
| Load capacity | kg |
40 |
| Table weight | kg | 30 |
| Max speed | mm/sec |
80 with servo motor |
