XY-OF-75x75ST


Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.

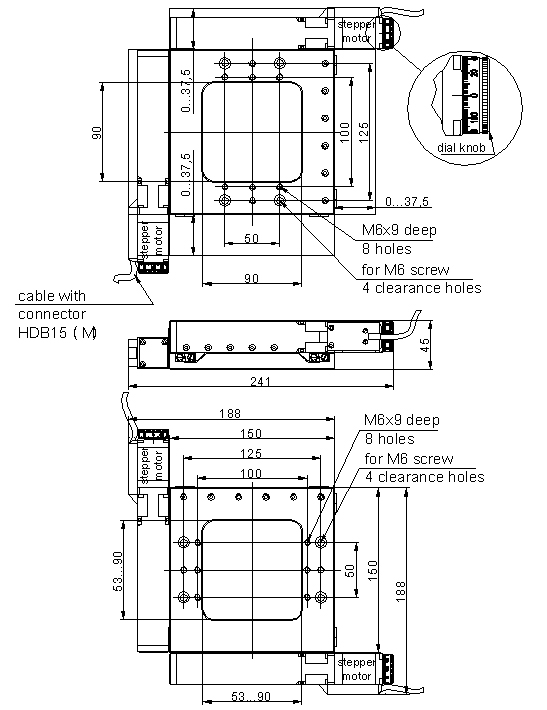

DescriptionSpecificationsDrawingsRelated

Open-frame XY stages designed with a low profile for a wide range of automated accurate positioning in microscope-based applications. The drive mechanism located on the side of the unit and offers a clear unobstruced two axes aperture to enable light or objects to pass through the center of travel.

Click Below Images To Enlarge

There are no related products for this product.
Model Unit

XY-OF-LY

15x15

XY-OF-LY

50x50

XY-OF-ST

75x75

XY-OF-LY

100x100

XY-OF-ST

100x100

Stroke XY mm 15x15 50x50 75x75 100x100 100x100
Screw lead mm

1

1 0.5 4 0.5
Aperture mm 15x15 50x50 90x90 188x188 100x100
Table top mm 90x90 155x155 150x150 300x300 175x175
Height mm 33 34 45 80 45
Accuracy micron 5 5 5 15 10
Backlash micron 2 2 3 5 3
Straightness micron 10 10 5 10 10
Resolution micron 1 1 0.5 2 0.5
Motor type   Stepper/Servo/Encoder
Repeatability micron 1 1 1 4 1
Load capacity kg

10

10 20 50 30
Table weight kg 3 5 3 8 4
Max  speed mm/sec

10

10 5 40 5
