XYR LSM-XY300x300+RTH-140

Click to enlarge

Send Quote/Information Request

When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.

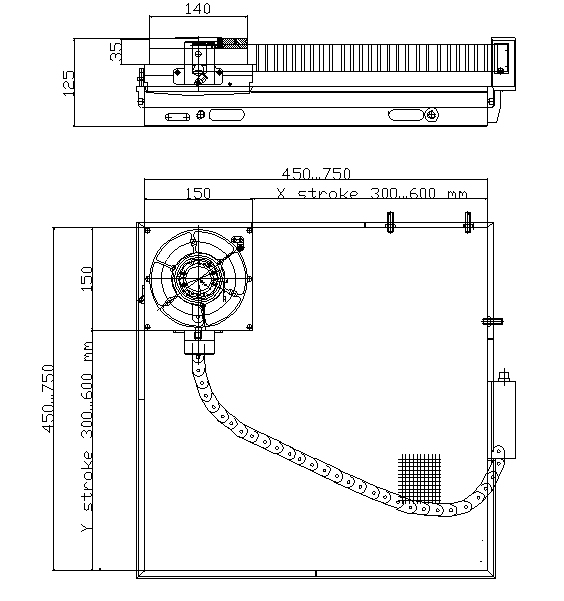

Description Specifications Drawings Related

Combination of the air bearing Cartesian Planar System with direct drive air bearing rotary tables RTH Series.

Click Below Images To Enlarge

There are no related products for this product.

XY Planar System	Spec	Rotary table RTH-140	Spec

travel	300...600 mm	Rotation	unlimited
Repeatability	± 2 µm	Repeatability	± 5 arc-sec
Resolution	1 µm	Resolution	± 2 arc-sec
Load	10 kg	Load	10 kg
Lift velocity	500 mm/sec	Angular velocity	60 rpm
Mechanism	direct drive	Mechanism	direct drive
Motor	stepper/servo	Motor	stepper/servo
