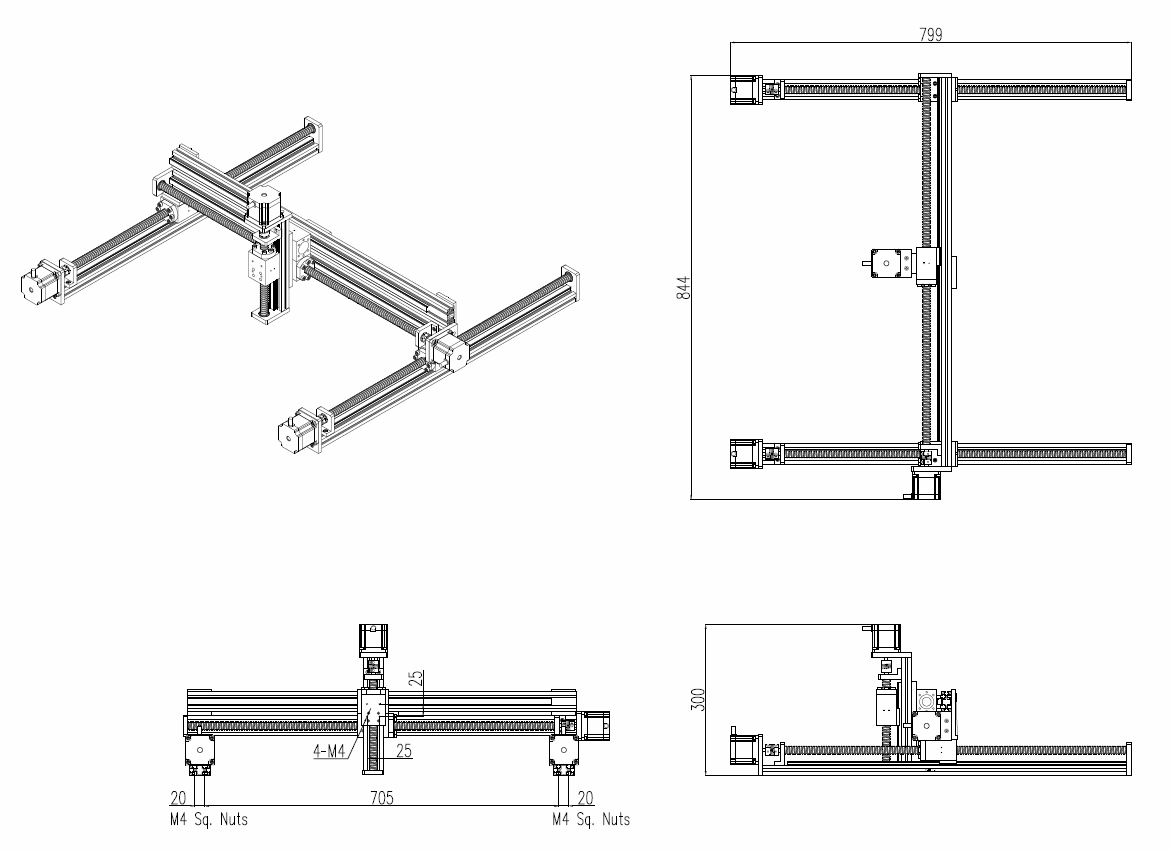

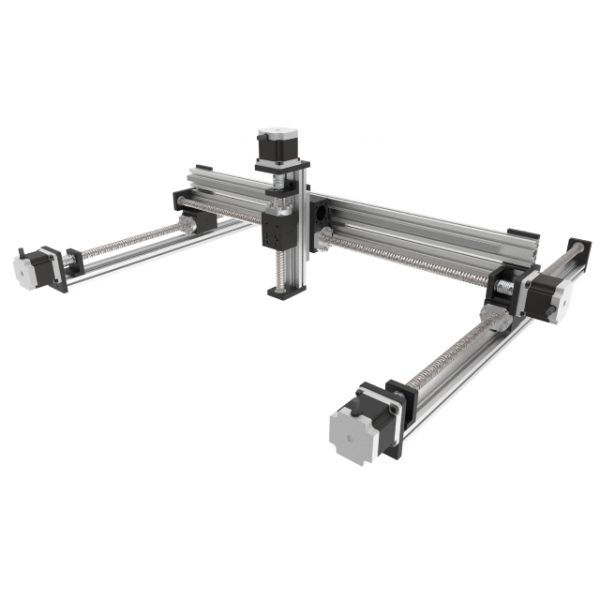

XYZ GANTRY BSMAE-F40L-600x600x100


Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.
DescriptionSpecificationsDrawingsRelated

Large area XYZ gantry for a wide varity of automation applications

Easy to program with VISUAL IMAC icon based controller. No need to write a single line of code!

Click Below Images To Enlarge

XY-BSMAE-F40S
XY-BSMAE-F40S
XY-BSMAE-F40S

XY stroke
100x100/200x200/300x300
Stepper/Servo/Smart motor

Load 5 Kg



XY-BSMAE-F40X
XY-BSMAE-F40X
XY-BSMAE-F40X

XY stroke
100x100/200x200/300x300
Stepper/Servo/Smart motor

Load 5 Kg



XZ-BSMAE-F40T
XZ-BSMAE-F40T
XZ-BSMAE-F40T

XZ stroke
100x100/200x200/300x300
Stepper/Servo/Smart motor

Load 5 Kg



XYZ-BSMAE-F40T
XYZ-BSMAE-F40T
XYZ-BSMAE-F40T

XYZ stroke
100x100x100/200x200x200
Stepper/Servo/Smart motor

Load 3 Kg



XYZ-BSMAE-F40X
XYZ-BSMAE-F40X
XYZ-BSMAE-F40X

XYZ stroke
100x100x100/200x200x200
Stepper/Servo/Smart motor

Load 3 Kg



XYZ GANTRY BSMAE-F40L-300x300x100
XYZ GANTRY BSMAE-F40L-300x300x100
XYZ-BSMAE-F40L-300x300x100

XYZ stroke
300x300x100
Stepper/Servo/Smart motor

Load 10 Kg



XYZ Stroke

mm

600x600x100

Screw lead

mm

5, 10

Motor mounts size



Nema17 (Nema23)

Motor type



Stepper (standard)

Servo/encoder

Load

kg

10

Repeatability

micron

30

Stage weight

kg

9

Speed

mm/sec

50 - 100 (stepper)

100 - 200 (servo)



Open loop Micro-stepping resolution = screw_lead/200/microsteps_per_step

where: motor has 200 full steps/rev;

driver micro-stepping resolution 64, 128, 256 micro-steps/step



Closed loop servo resolution = screw_lead/encoder_cpr/4

where: encoder_cpr is number of encoder counts per revolution;

4 is post-quad processing in the motion controller
