XYZ-GA-860-X600-Y600-Z150


Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.

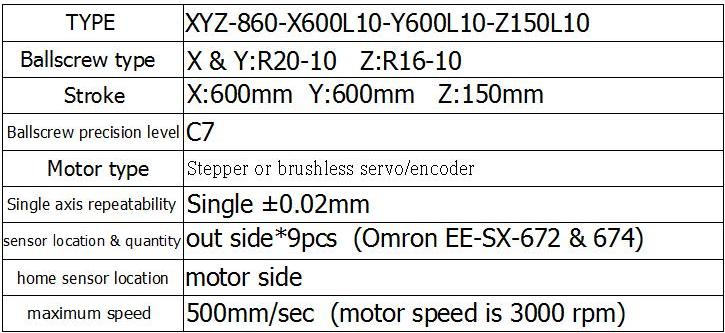

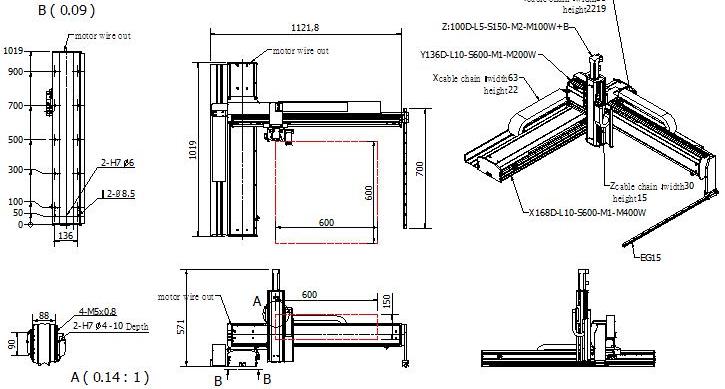

DescriptionSpecificationsDrawingsRelated

Gantry style cartesian robots with large working areas. All moving axes located above work area.



-  XYZ Gantry 600 x 600 x 150 mm travel

-  Ball screw mechanism

-  Stepper or servo motor driven



Options include:



- larger or smaller travel stroke

- precision grade

- ball screw lead

- motor type (stepper or servo/encoder)

- rotary table installation















Click Below Images To Enlarge

GA-110-098-080-600x600x150
GA-110-098-080-600x600x150
GA-110-098-080-60x60x15

STROKE 600 x 600 x 150 mm

XY-GA-86-X600-Y600
XY-GA-86-X600-Y600
XY-GA-86-X600-Y600

STROKE 600 x 600 mm

Load 12 kg

XY-GA-86-X800-Y800
XY-GA-86-X800-Y800
XY-GA-86-X800-Y800

STROKE 800 x 800 mm

Load 12 kg

XY-GA-86-X1000-Y1000
XY-GA-86-X1000-Y1000
XY-GA-86-X1000-Y1000

STROKE 1000 x 1000 mm

Load 12 kg

XYZ-GA-860-X800-Y600-Z150
XYZ-GA-860-X800-Y600-Z150
GA-860-X800-Y600-Z150

STROKE 800 x 600 x 150 mm

Load 12 kg

XYZ-GA-860-X800-Y800-Z150
XYZ-GA-860-X800-Y800-Z150
GA-860-X800-Y800-Z150

STROKE 800 x 800 x 150 mm

Load 12 kg

XYZ-GA-860-X1000-Y800-Z150
XYZ-GA-860-X1000-Y800-Z150
GA-860-X1000-Y800-Z150

STROKE 1000 x 800 x 150 mm

Load 12 kg

XYZ-GA-860-X1000-Y1000-Z150
XYZ-GA-860-X1000-Y1000-Z150
GA-860-X1000-Y1000-Z150

STROKE 1000 x 1000 x 150 mm

Load 12 kg

XY-GA-28-X600-Y600
XY-GA-28-X600-Y600
GA-28-X600-Y600

STROKE 600 x 600 mm

Load 25 kg

XY-GA-28-X800-Y600
XY-GA-28-X800-Y600
GA-28-X800-Y600

STROKE 800 x 600 mm

Load 25 kg

XY-GA-28-X800-Y800
XY-GA-28-X800-Y800
GA-28-X800-Y800

STROKE 800 x 800 mm

Load 25 kg

XYZ-GA-288-X600-Y600-Z150
XYZ-GA-288-X600-Y600-Z150
GA-288-X600-Y600-Z150

STROKE 600 x 600 x 150 mm

Load 12 kg

XYZ-GA-288-X800-Y600-Z150
XYZ-GA-288-X800-Y600-Z150
GA-288-X800-Y600-Z150

STROKE 800 x 600 x 150 mm

Load 25 kg

XYZ-GA-288-X800-Y800-Z150
XYZ-GA-288-X800-Y800-Z150
GA-288-X800-Y800-Z150

STROKE 800 x 800 x 150 mm

Load 25 kg

XYZ-GA-288-X1000-Y1000-Z150
XYZ-GA-288-X1000-Y1000-Z150
GA-288-X1000-Y1000-Z150

Stroke 1000x1000x150 mm

Load 25 kg
